- Dual purpose enclosure for both front-of house and floor monitor applications
- Optimized EQ for monitor or front-of-house applications
- Maximum SPL 134db peak
- Eight M10 fly points for horizontal or vertical suspension. One M10 pull-back point

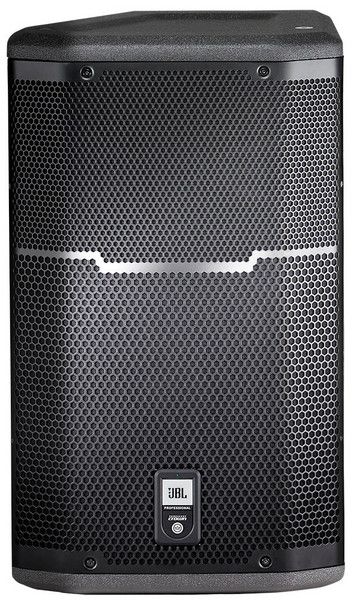

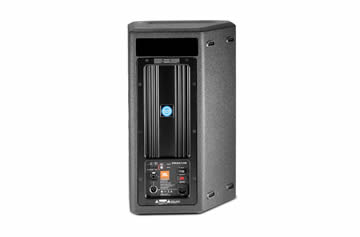

The PRX612M is the most compact and versatile speaker in the PRX600 Series. It has been designed to deliver maximum performance for its weight and size as both a stage monitor and a front of house main PA.
|System Type||Self-powered 12″, two-way, bass-reflex|
|Maximum SPL Output||Full Range: 134 dB peak Monitor: 133 dB peak|
|Frequency Range (-10 dB)||Full Range: 50 Hz – 19.5 kHz Monitor: 51 Hz – 19.5 kHz|
|Frequency Response (±3 dB)||Full Range: 60 Hz – 17.5 kHz Monitor: 61 Hz – 18.5 kHz|
|Coverage Pattern||90º x 50º nominal|
|Amp Design||Crown® Class D|
|Power Rating||1000 W ( 2 x 500 )|
|Dimension (H x W x D):||592 mm x 353 mm x 340 mm ( 23.3 in x 13.9 in x 13.4 in )|
|Net Weight||15.6 kg ( 34.5 lb )|
