Product Highlights
- 26° beam angle for balanced coverage and control
- Enhanced Definition Lens Tube (EDLT) design
- Increases light output by up to 10%
- Provides enhanced sharpness and high contrast for gobos and pattern projection
- Compatible with new and existing Source Four fixed-focus ellipsoidals
- Ideal for theatrical, corporate, and live event lighting environments
Overview

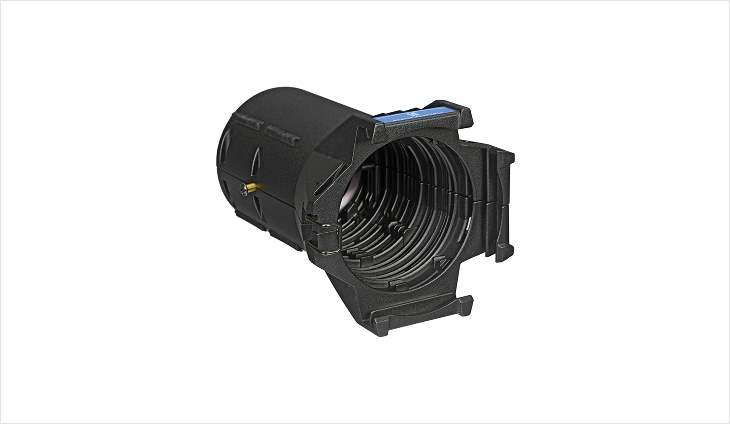

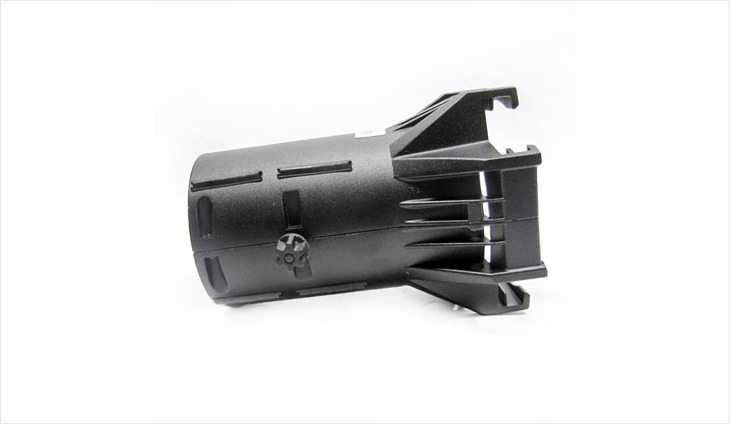

The ETC Enhanced Definition Lens Tube (EDLT) easily attaches to new or existing fixed-focus Source Four ellipsoidal fixtures, delivering increased light output and superior image clarity. Designed for projection and precision lighting applications, the 19° EDLT enhances sharpness and contrast, making it ideal for gobos and pattern projection in professional event and theatrical environments. contrast to images when the Source Four is used as a pattern projector.
Specifications
| Spec | Value |
|---|---|
| Beam angle | 26° |
| Weight | 6.17 lbs. |
| Dimensions | 11.02″ x 7.87″ x 7.87″ |
| Type | Enhanced Definition Lens Tube (EDLT) |
| Compatibility | ETC Source Four fixed-focus ellipsoidal bodies |
| Optical design | Enhanced contrast/sharpness for gobo/pattern projection |
| Mounting | Front lens tube assembly (replaces standard lens tube) |
Technical Documentation
ETC 26 Degree EDLT Lens Tube
For Spots
- Rentex No. 26DEDLT
- Mfr No. 7060A2047
-
