42″ NEC E424

Edge-lit Commercial-Grade LED Display with Integrated Tuner

NEC

Product Highlights

  • Thinner bezel improves displays aesthetics
  • Full 1080p high-definition resolution provides stunning detail
  • USB media player allows users to view .jpg images
  • Built-in NTSC/ATSC analog/digital tuner allows for high definition broadcast capabilities
  • Built-in, low-profile 10W speakers enhance the experience with superior sound
Rentex No. NEC42E424 | Mfr No. E424

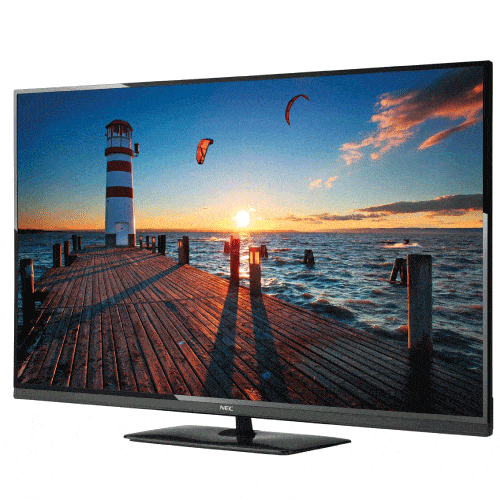

The 42” NEC E424’s edge-lit LED backlighting allows for reduced power consumption, a thinner depth, a smaller bezel and lighter weight. Full HD resolution delivers stunning image quality for a variety of content, and the E424’s integrated tuner and speakers allow users to enjoy high definition broadcast capabilities. This display can be controlled remotely through the RS-232C networking feature, which also provides customers the ability to synchronize multiple displays, remotely power on/off and lock out external buttons to prevent unwanted changes in the displays setting.

Display
Panel Technology A-MVA
Viewable Image Size 42.00″ (106.68 cm)
Native Resolution 1920 x 1080
Backlight Type LED Edge-lit
Brightness Typical: 360 cd/m2 Maximum: 360 cd/m2
Contrast Ratio 1,200:1 (Typical)
Viewing Angle 178° vertical, 178° horizontal (89U / 89D / 89L / 89R) at CR > 10
Response Time 9 ms (Gray to Gray)
Refresh Rate 60 Hz
Aspect Ratio 16:9
Active Screen Area 36.9 x 20.9″ (938.2 x 531.3 mm)
Orientation Landscape
Displayable Colors More than 16.7 million



Synchronization Range
Horizontal 31 to 83 kHz (Analog / Digital)
Vertical 56 to 75 Hz



Input Signal
Video Analog RGB 0.7 Vpp / 75 Ω
Sync Separate Sync: TTL Level (Positive / negative) Composite Sync: TTL Level (Positive / negative) Composite Sync on Green: (0.3 Vpp negative 0.7 Vpp positive)



Connectivity
Compatibility PC signal and Macintosh
Input Terminals Digital: HDMI (3) Analog: VGA 15-pin D-sub, RCA (Y, Cb/Pb, Cr/Pr) component Audio: HDMI audio, stereo mini-jack External Control: RS-232C
Output Terminals Audio: SPDIF
VESA Compatibility 400 x 400 mm (4-hole)



Power
Power Consumption Typical On: 100 W ECO Mode Standby: <0.5 W



Environmental Conditions
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature 32 to 104°F (0 to 40°C)
Operating Humidity 10 to 80%
Storage Humidity 5 to 85%
Operating Altitude 6,562′ (2,000 m)
Storage Altitude 40,000′ (12,192 m)



Physical
Bezel Width 0.37 /0.37″, 0.37 /1.3″ (9.5 / 9.5 mm, 9.5 / 32.4 mm) (Left / Right, Top / Bottom)
Dimensions (W x H x D) With Stand: 37.7 x 24.7 x 8.4″ (957.6 x 627.4 x 213.4 mm) Without Stand: 37.7 x 22.6 x 2.5″ (957.6 x 574.0 x 63.5 mm)
Weight With Stand: 29.1 lb (13.2 kg) Without Stand: 26.7 lb (12.1 kg)
