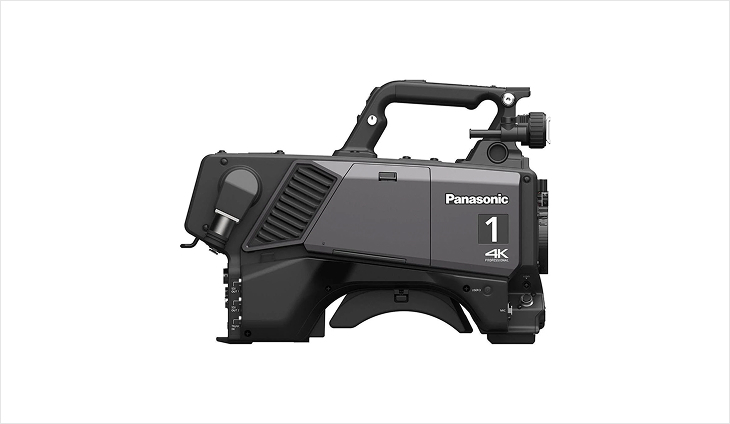

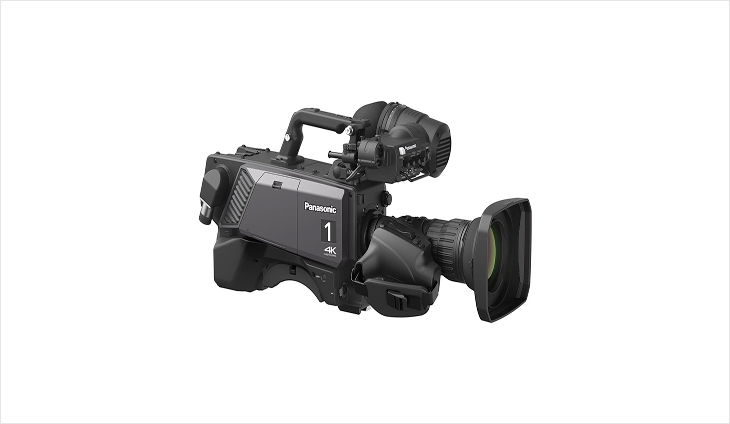

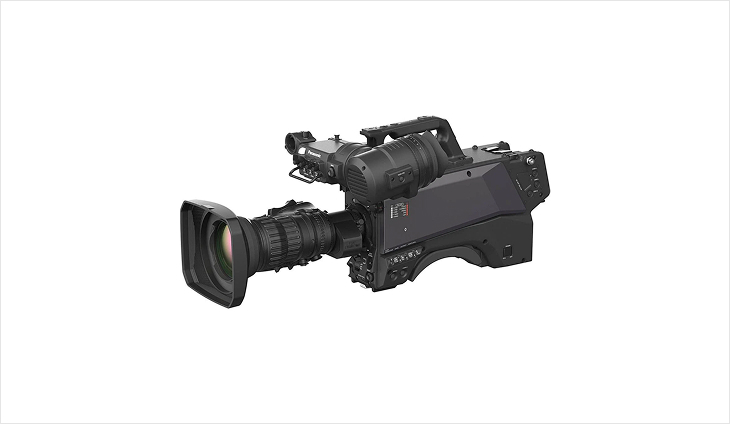

AK-UCX100 camera system

Panasonic AK-UCX100 4K Studio Camera w/ OLPF

Mouse roll-over to zoom image.

Product Highlights

Optical Low Pass Filter (OLFP) for reduced Moiré
2G-SDI, ST2110, and Dante audio on included AK-UCU710 CCU
Simultaneous HDR and SDR operation
High-precision focus assist and PDAF autofocus
New MOS sensor with F10 sensitivity and low noise

Rentex No. PAUCX100 | Mfr No. AK-UCX100

The Panasonic AK-UCX100 is a 4K studio camera engineered for high-performance live event production, offering exceptional flexibility and future-ready interoperability. It features a new MOS sensor tuned for modern LED lighting and LED Wall interoperation and delivers 4K resolution and crisp, detailed imagery even in low-light conditions. Flexible integration is available with or without the included AKUCU710, with connection for 12G-SDI, SMPTE ST2110 (including JPEG-XS), Dante Audio and more. This makes it highly adaptable to both current and emerging production environments.

For live event flexibility, the AK-UCX100 supports simultaneous HLG (BT.2020) and SDR (BT.709) output for optimal color reproduction across diverse display systems. It introduces the world’s first autofocus function built into a studio camera using phase detection for fast, precise focusing across a wide range of available B4 mount broadcast lenses. Additional features like high-speed shooting (up to 4x in HD), moiré reduction for LED wall environments, and the TRUNK function for streamlined video/data transmission further enhance its utility in dynamic, multi-camera setups. These capabilities position the AK-UCX100 as a versatile and scalable solution for modern live productions.

Operating Instruction

Panasonic 4K Studio Camera AK-UCX100 Introduction

General
Power Supply	DC 12 V (when using an external power supply) AC 240 V, 50 Hz/60 Hz(AK-UCU710/AK-UCU710S/AK-UCU700/AK-UCU700S/AK-CFA100 in connected)
Power Consumption	119 W (maximum, when connecting to external 12V and including supply to externally connected devices) 360 W (maximum, when AK-UCU710/AK-UCU710S/AK-UCU700/AK-UCU700S/AK-CFA100 is connected and including supply to an externally copnnected device)
Operating Temperature	–10 °C to 45 °C (14 °F to 113 °F) (Preheating required under a temperature 0°C (32 °F) or below)
Operating Humidity	85% or less (relative humidity)
Storage Temperature	−20 °C to 60 °C (−4 °F to 140 °F)
Weight	Approx. 4.55 kg (9.90 lbs.) (body only, excluding the accessories)
Dimensions (W x H x D)	157 mm x 267 mm x 371.5 mm (5-31/32 inches x 10-17/32 inches x 14-21/32 inches) (excluding protrusions)
Camera Unit
Pickup Device	19.29 million pixels, MOS sensor
Optical Filter	ND	CLEAR, 1/2, 1/4, 1/16, 1/64
Optical Filter	FX	CLEAR, CLEAR (Option), CROSS, Diffusion, CAP Option: HD Low Pass filter

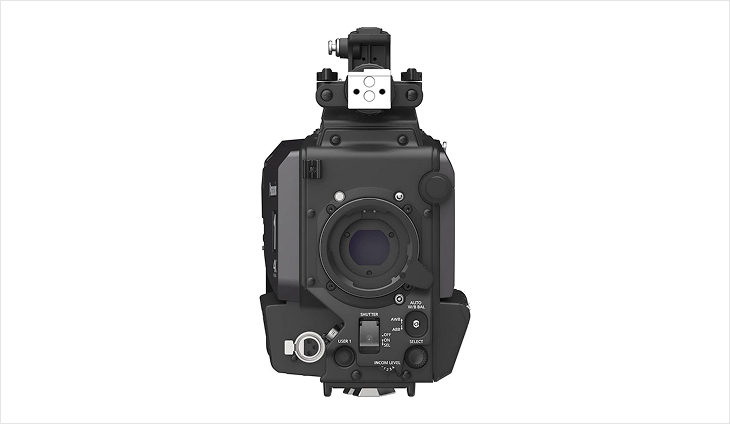

Lens Mount	2/3-type bayonet
Sensitivity	[LOW LIGHT]: F10(59.94 Hz)/F11(50 Hz) [NORMAL]: F6(59.94 Hz)/F7(50 Hz) 2000 lx, 3200 K, when white reflectivity is 89.9%
Horizontal Resolution	4K	2000 TV lines or above (center)
Horizontal Resolution	HD	1000 TV lines or above (center)
S/N	62 dB or above
Gain Switching	-6, -3, 0, 3, 6, 9, 12, 15, 18
Shutter Speed	[59.94i]/[59.94p] mode	1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
	[50i]/[50p] mode	1/60, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
	[29.97p] mode	1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
	[25p] mode	1/48, 1/50, 1/60, 1/96, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
	[23.98p] mode	1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
System Format	3840×2160/59.94p/50p/29.97p/25p/23.98p 1920×1080/59.94p/50p/29.97p/25p/23.98p
Video Input/Output
<SDI OUT1> Terminal	BNC x 1 12G/6G/3G/1.5G-SDI: 0.8 V [p‑p], 75 Ω
<SDI OUT2> Terminal	BNC x 1 12G/6G/3G/1.5G-SDI: 0.8 V [p‑p], 75 Ω
<TRUNK IN> Terminal	BNC x 1 3G/1.5G-SDI: 0.8 V [p‑p], 75 Ω
<G/L IN/REF OUT> Terminal	BNC x 1 <G/L IN>: Tri-level SYNC or BB (black burst) <REF OUT>: black signal without burst
Audio Input/Output
<MIC 1> Terminal	XLR x 1, 3-pin female type <LINE>/<MIC>/<+48V> switchable For <MIC>, <FRONT>/<REAR> switchable <LINE>: 0 dBu,＋4 dBu menu selection available <MIC>: −60 dBu, −40 dBu, or −20 dBu menu can be selected
<MIC 2> Terminal	XLR x 1, 3-pin female type <LINE>/<MIC>/<+48V> switchable <LINE>: 0 dBu,＋4 dBu menu selection available <MIC>: −60 dBu, −40 dBu, or −20 dBu menu can be selected
<MIC> Terminal (front)	XLR×1, 3-pin female type Switchable with <MIC 1> terminal
Intercom
<INTERCOM1> Terminal	XLR x 1, 5-pin, female type
<INTERCOM2> Terminal	XLR x 1, 5-pin, female type
<EARPHONE> Terminal	Stereo mini jack x 1, 3-pin

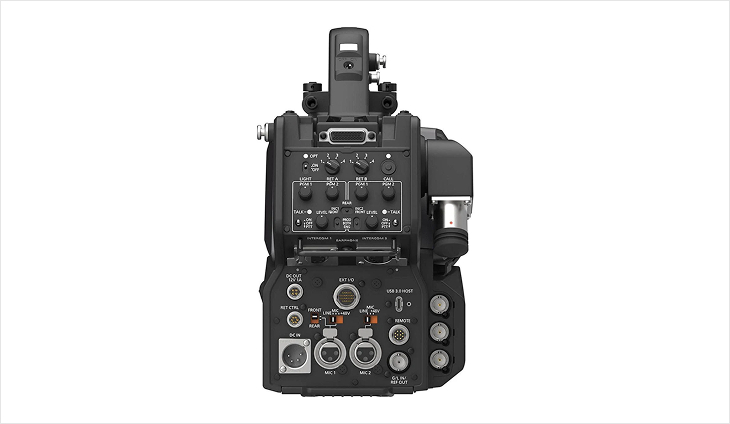

Other Input/Output
<OPT FIBER> Terminal	Optical composite connector x 1
<SFP 1>Terminal	SFP28 x 1
<SFP 2>Terminal	SFP28 x 1
<LENS>Terminal	12-pin x 1
<VF>Terminal	20-pin x 1
<VF>Terminal(rear)	29-pin x 1
<DC IN>Terminal	XLR x 1, 4-pin, DC12 V
<DC OUT 12V 1A>Terminal	4-pin x 1
<RET CTRL>Terminal	6-pin x 1
<EXT I/O>Terminal	20-pin x 1, DC12 V, 0.5 A
<REMOTE>Terminal	10-pin x 1
<DC OUT 12V 2.5A>Terminal	2-pin x 1
<LAN>Terminal	RJ-45 x 1
<USB3.0 HOST>Terminal	Type C connector* (USB Power Delivery) * Support for future update.
Build-up terminal	20-pin x 1
