Product Highlights
- A single piece alumium frame
- Legs are adjustable in 6" increments
- Black dress kit is available
- Available with front or rear surface
Overview
Monoblox is a mobile projection screen with a lightweight frame and a simple, toolless, intuitive setup. Every Rentex Monoblox screen comes with a hard case, a choice of a front or rear projection surface and a set of legs. A dress kit, or hanging brackets to fly the screen, are optional.
Specifications
| Surface Dimensions | |
| Overall Area | 9′ 5″ x 5′ 7″ (286cm x 170cm) |
| Viewing Area | 8′ 9″ x 4′ 11″ (266cm x 150cm) |
| Border Width | 4″ (10cm) black border |
| Surface Information – Front Projection | |
| Name | FLEX WHITE CI |
| Gain | 0.96 |
| Viewing Angle | ±55° |
| Back Layer | 100% lightproof |
| Surface Information – Rear Projection | |
| Name | FLEX REAR-CI |
| Gain | 0.89 |
| Viewing Angle | ±45° |
| Frame Information | |
| System | 32 |
| Construction | Single piece 1.25″ x 1.25″ (32mm x 32mm) square tube frame with snap joints and snap attachment |
| Leg Information | |
| Leg Type | AT32 |
| Min Setup Height | 2″ (6cm) |
| Max Setup Height | 44″ (113cm) |
| Total Height | 127″ (322cm) |
| Adjustment | Adjustable in 6″ increments |
| Black Dress Kit Information | |
| Fabric Type | 13 oz IFR Velour |
| Skirt Height | 5′ 9″ |
| Valance Height | Add 12″ to Overall Height |
| Side Drapes | Add 61″ to Overall Width |
Technical Documentation

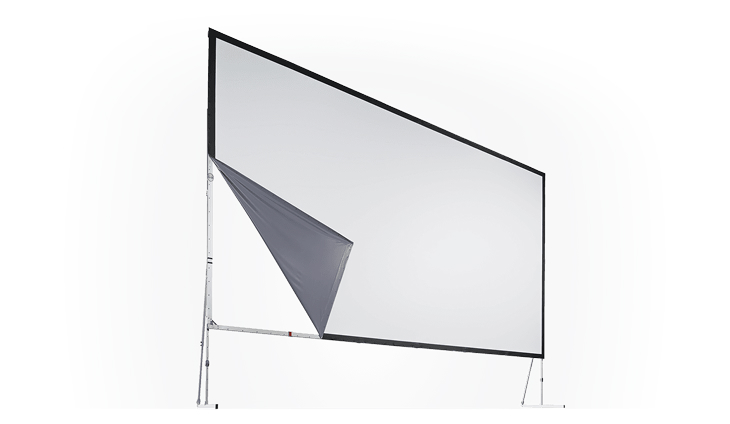

4′11″ x 8′9″ AV Stumpfl Monoblox Screen
16:9 Aspect Ratio
- Rentex No. FS0408SKIT
- Mfr No.
-
Available for same-day delivery in most major cities
-
Item is show-ready, double-tested for functionality
-
Accessories included, matched to the main unit
