Product Highlights
- Full‑duplex wireless intercom on license‑free 1.9 GHz spectrum
- Includes four FreeSpeak II beltpacks with CC300 Single Ear Headsets
- Two distributed transceivers for optimized RF coverage
- Professional base station with wired and matrix integration options
- Rugged transport case for easy deployment and storage
- Includes charger, splitter, and shielded Ethernet cabling for quick setup
Overview
A compact, professional full‑duplex wireless intercom solution built around Clear‑Com’s FreeSpeak II platform. This 4‑drop system delivers reliable 1.9 GHz DECT communications for crews needing hands‑free, high‑clarity coordination in broadcast, live events, and production environments.
What's in the Case?

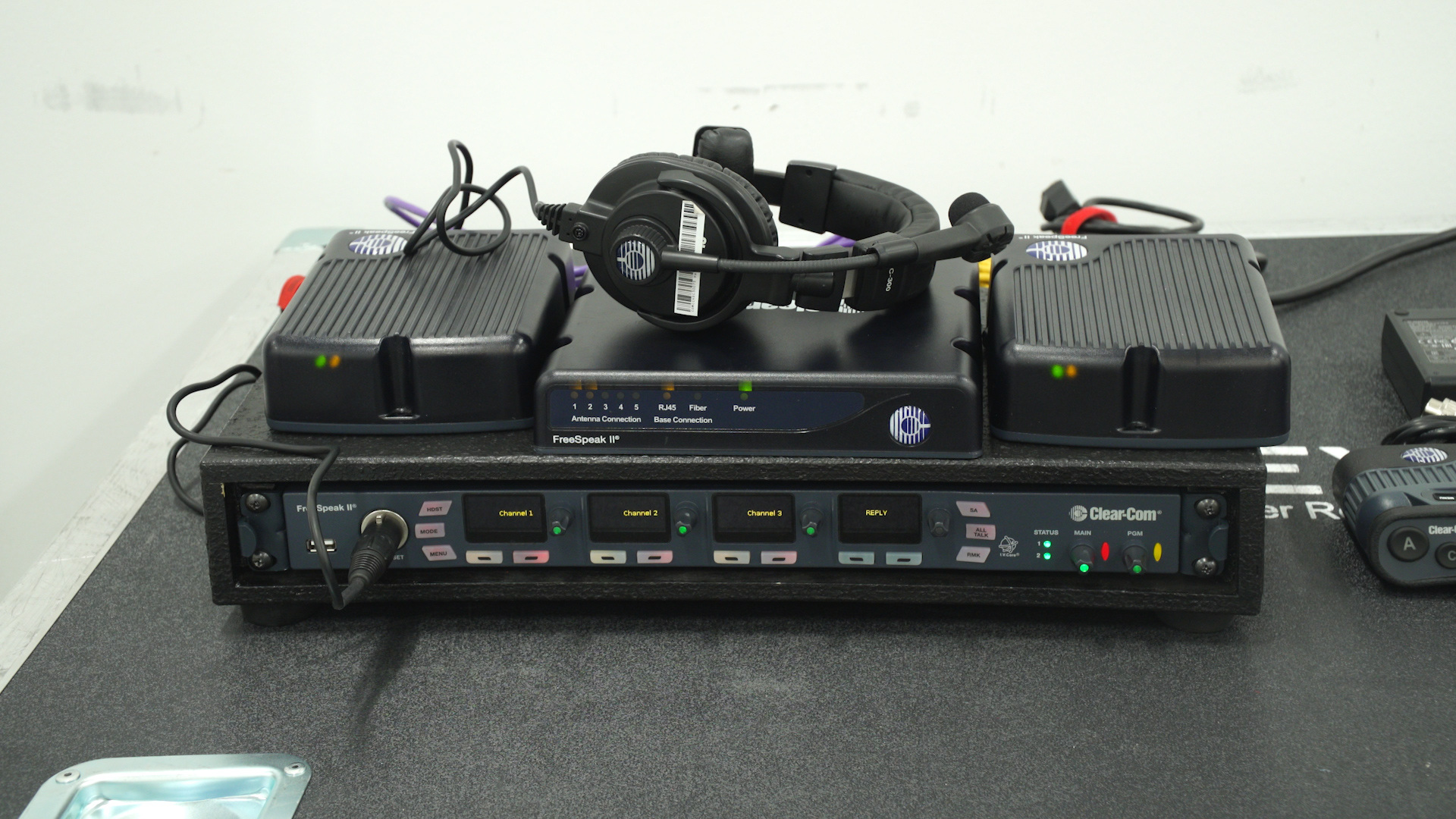

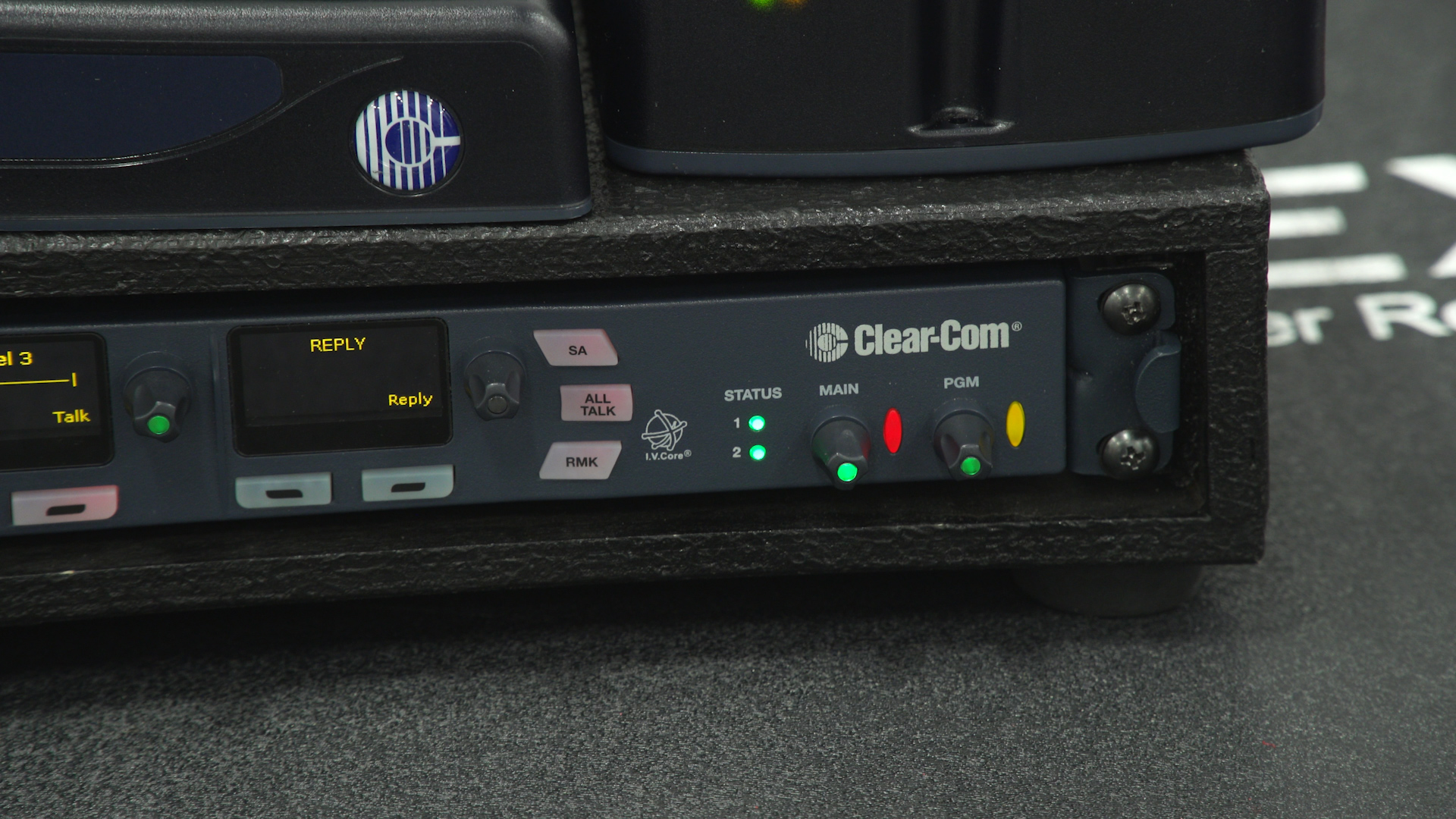

- (1) FreeSpeak II Base Station

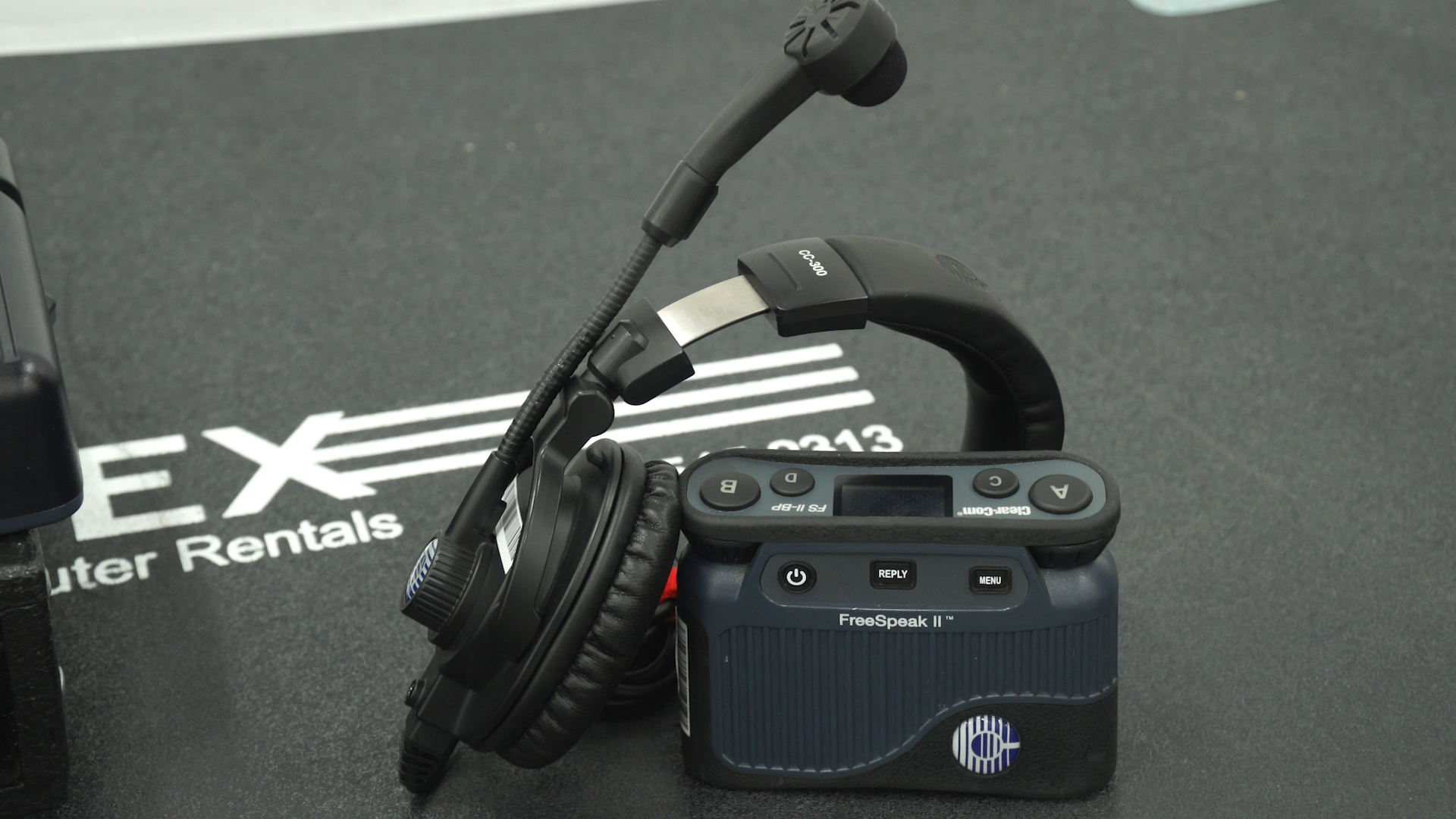

- (4) FreeSpeak II 1.9 GHz beltpacks with CC300 Single Ear Headset
- (2) FreeSpeak II 1.9 GHz transceivers
- (1) FreeSpeak II splitter

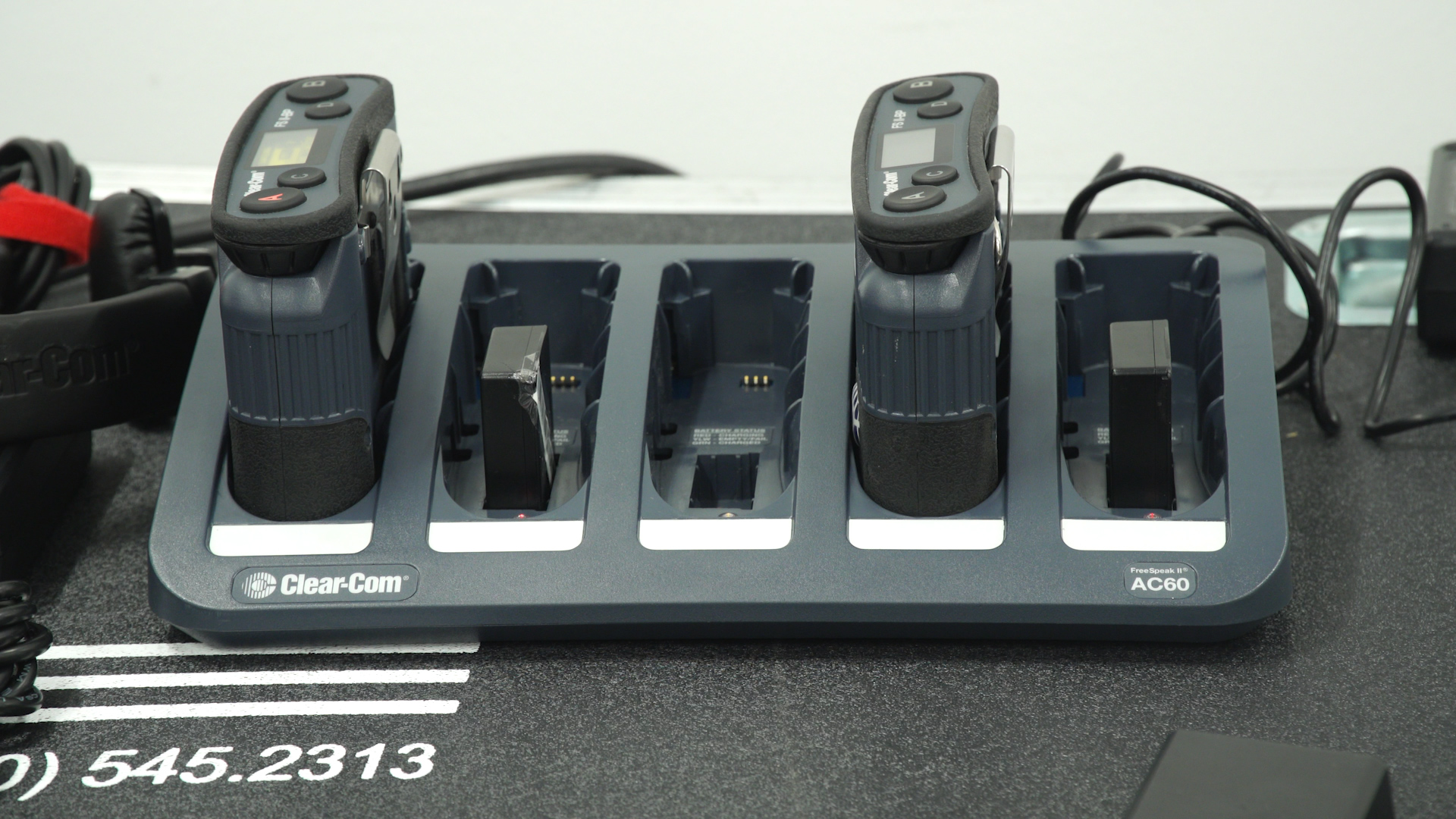

- (1) 5‑way battery charger
- Cables as listed

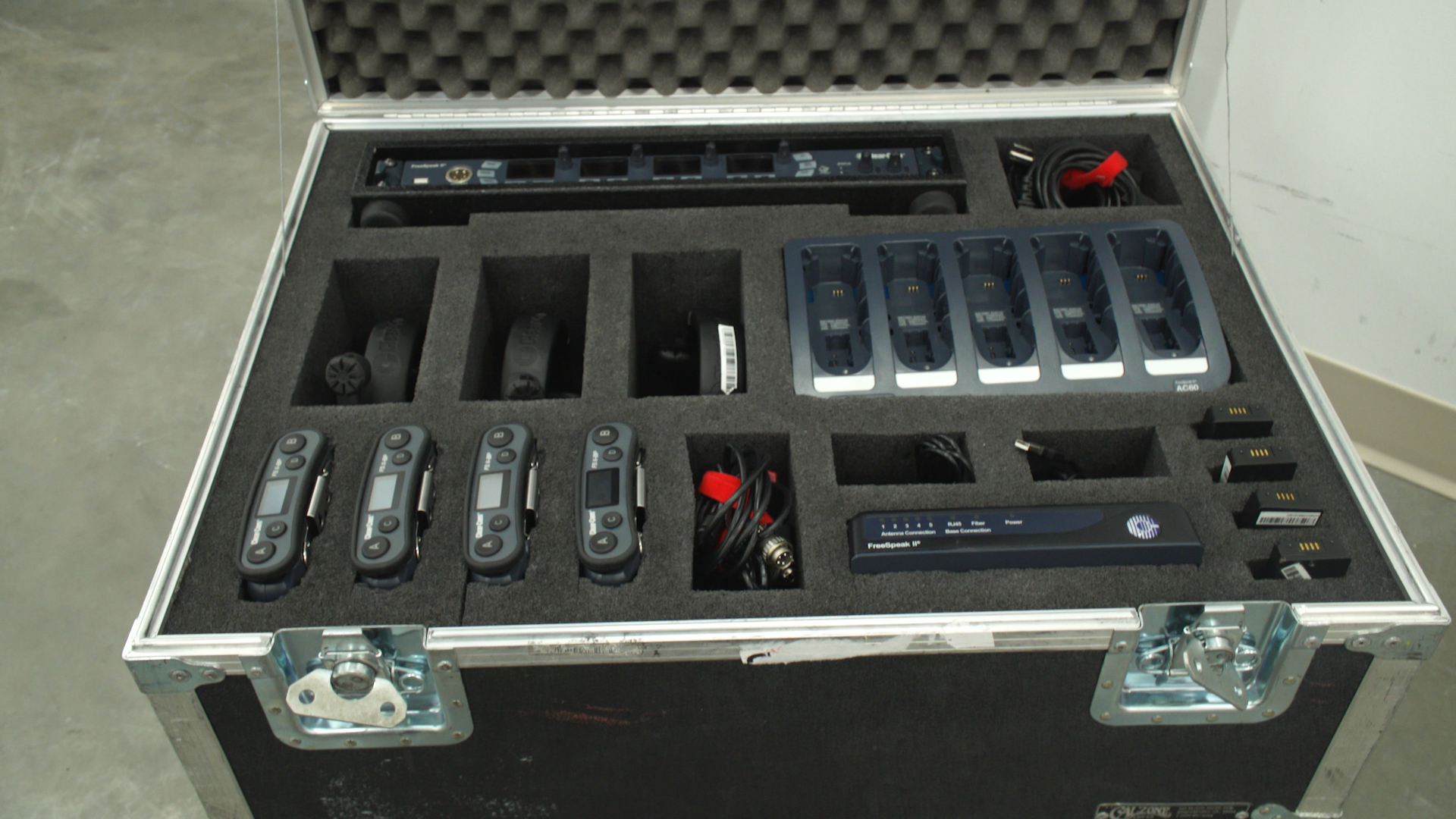

- Durable system transport case
Specifications
| Specs | Value |
|---|---|
| Base II | |
| Frequency Response | 100 Hz – 7.1 kHz |
| PC Programming Port | DB9 |
| Relay Port | DB9 |
| No. of Active Antenna Ports | 2 |
| Matrix Connection | 4 RJ-45 |
| Program Input | XLR-3F |
| Stage Announce Output | XLR-3M |
| Front Panel Display | 254 x 32 dot-graphic VFD |
| Dimensions | 1.75 x 19.0 x 12.5 in. (HxWxD) |
| Weight | 10.8 lbs |
| Beltpack | |
| Audio Bandwidth | 200 Hz – 7.5 kHz |
| Mode of Operation | Full duplex on all routes |
| Level/Talk Controls | 4 pushbuttons, a reply button, 2 rotary controls |
| Frequency Spectrum | 1.88 GHz – 1.93 GHz |
| Range | Up to 1475 feet in good frequency conditions |
| Battery | Li-Ion or 3 AA alkaline cells |
| Headset Connector | 4-pin male, Clearcom standard |
| Microphone Type | Electret and Dynamic |
| Headset Limiter | Selectable from beltpack menu |
| Dimensions | 5 x 1.5 x 3.75 in. (DxWxH) |
| Weight | 9 oz including batteries |
| Antenna | |
| Beltpacks Supported Per Active Antenna | 1.9 GHz Antenna: 5, 2.4 GHz Antenna: 4 |
| Active Antenna Transmission Range | Up to 1475 feet to beltpack in good conditions |
| Local Powering | 24 VDC power supply |
| Connection to Base | RJ-45 |
| Dimensions | 6.9 x 5.4 x 2.1 in. (HxWxD) |
| Weight | 11.9 oz |
| Antenna Splitter | |
| No. of Antennas | 5 |
| No. of Splitters Per Base | 2 |
| Connection Between Base and Splitter | CAT-5 or better cable with RJ-45 |
| Powering of Splitter | Locally powered via supplied external power |
| Weight | 16 oz |

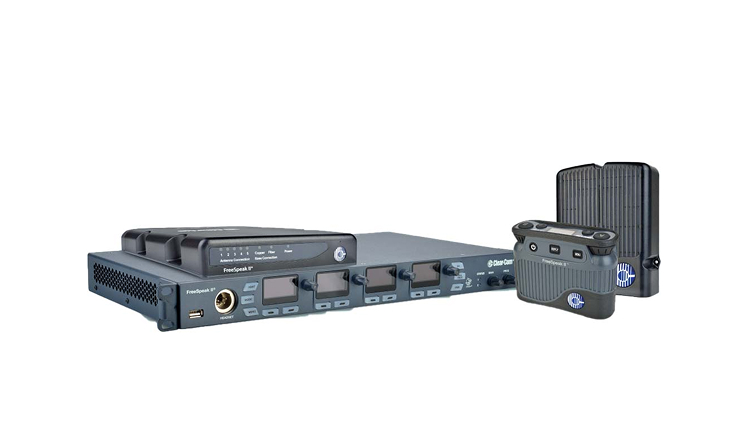

ClearCom FreeSpeak II – 4 Drop System Package
Wireless Intercom System
- Rentex No. CCFSSYSTEM
- Mfr No. FreeSpeak II-Base-II
-
Available for same-day delivery in most major cities
-
Item is show-ready, double-tested for functionality
-
Accessories included, matched to the main unit
