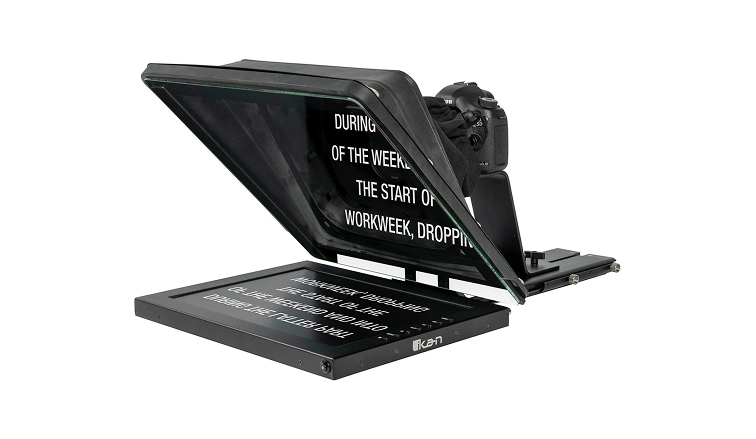

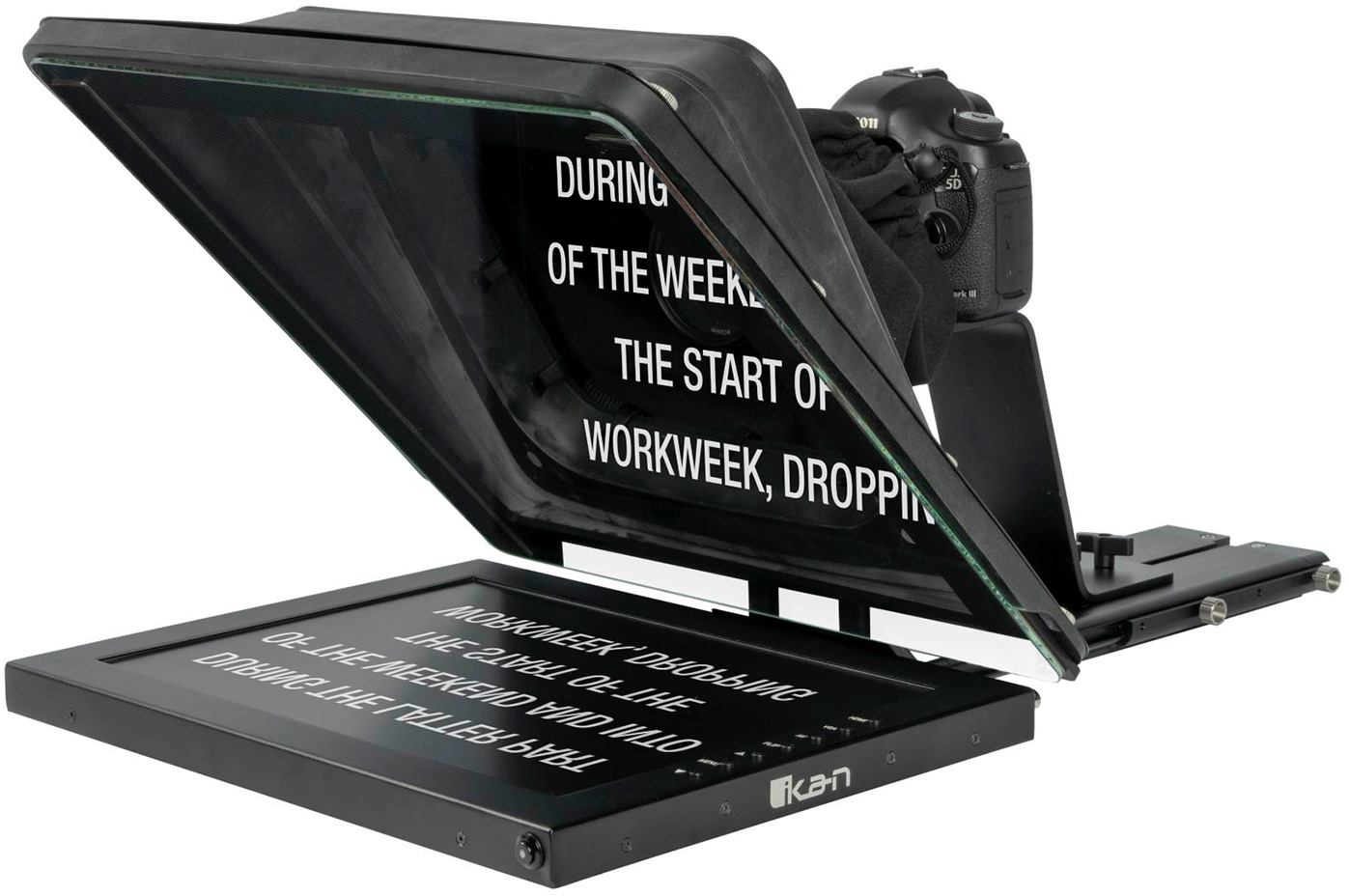

IKANPT4700 - Ikan PT4700-SDI Prompter package

Product Highlights

3G-SDI, HDMI, and VGA Inputs
1280 x 1024 Display Resolution
1000 cd/m² Monitor with Image Flip
Three Mounts for Compact to ENG Cameras
70/30 Beam Splitter Glass

Overview

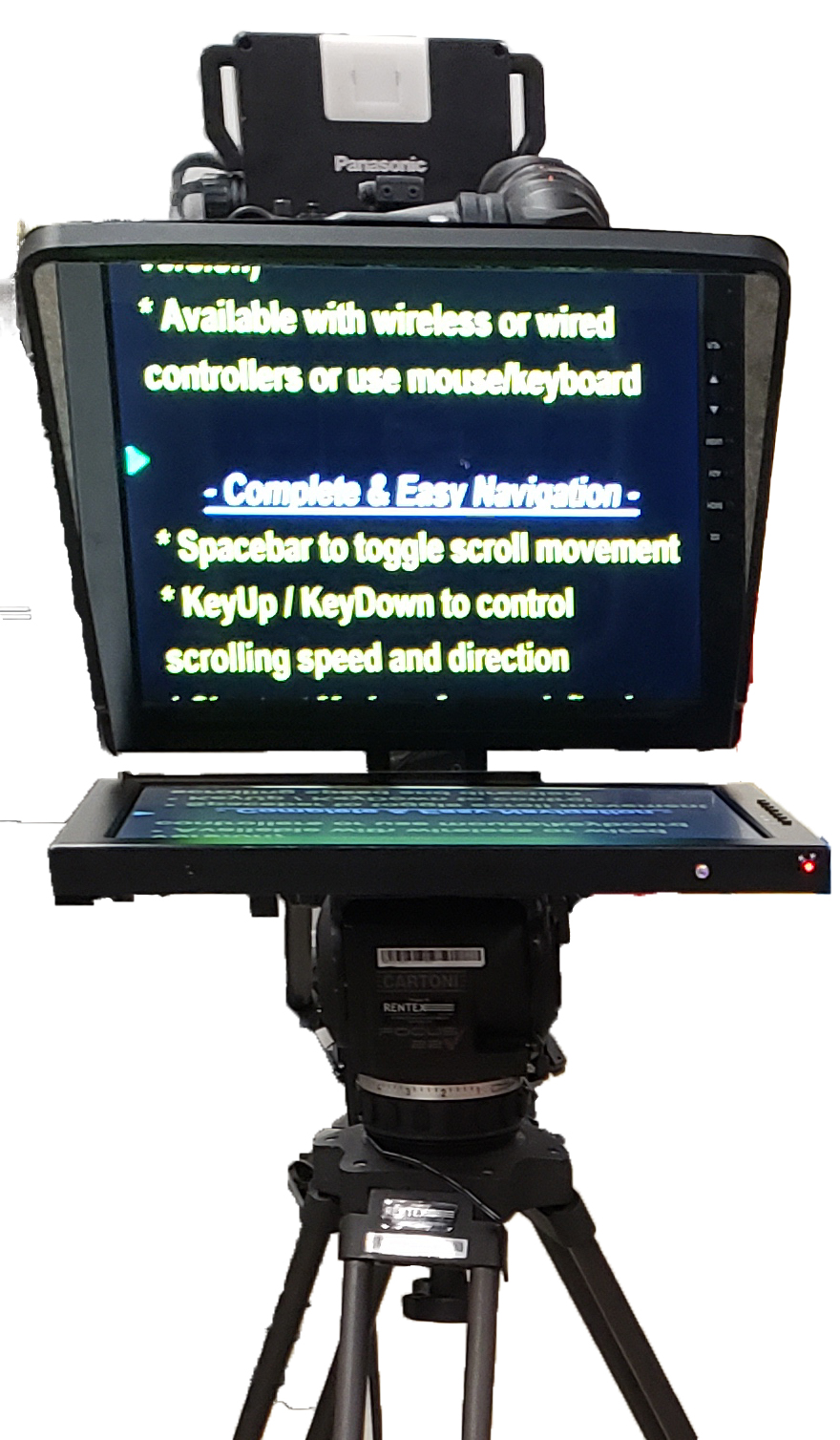

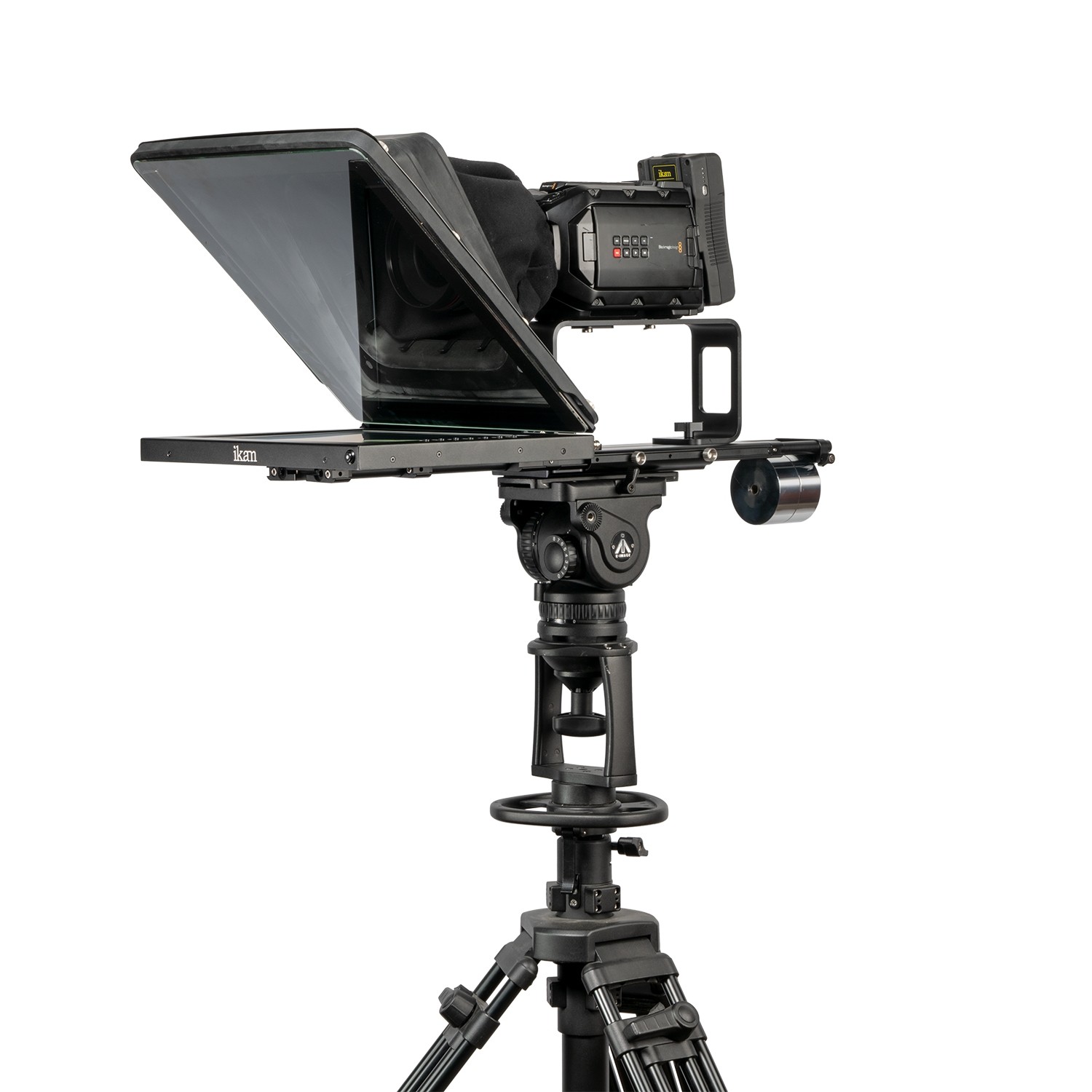

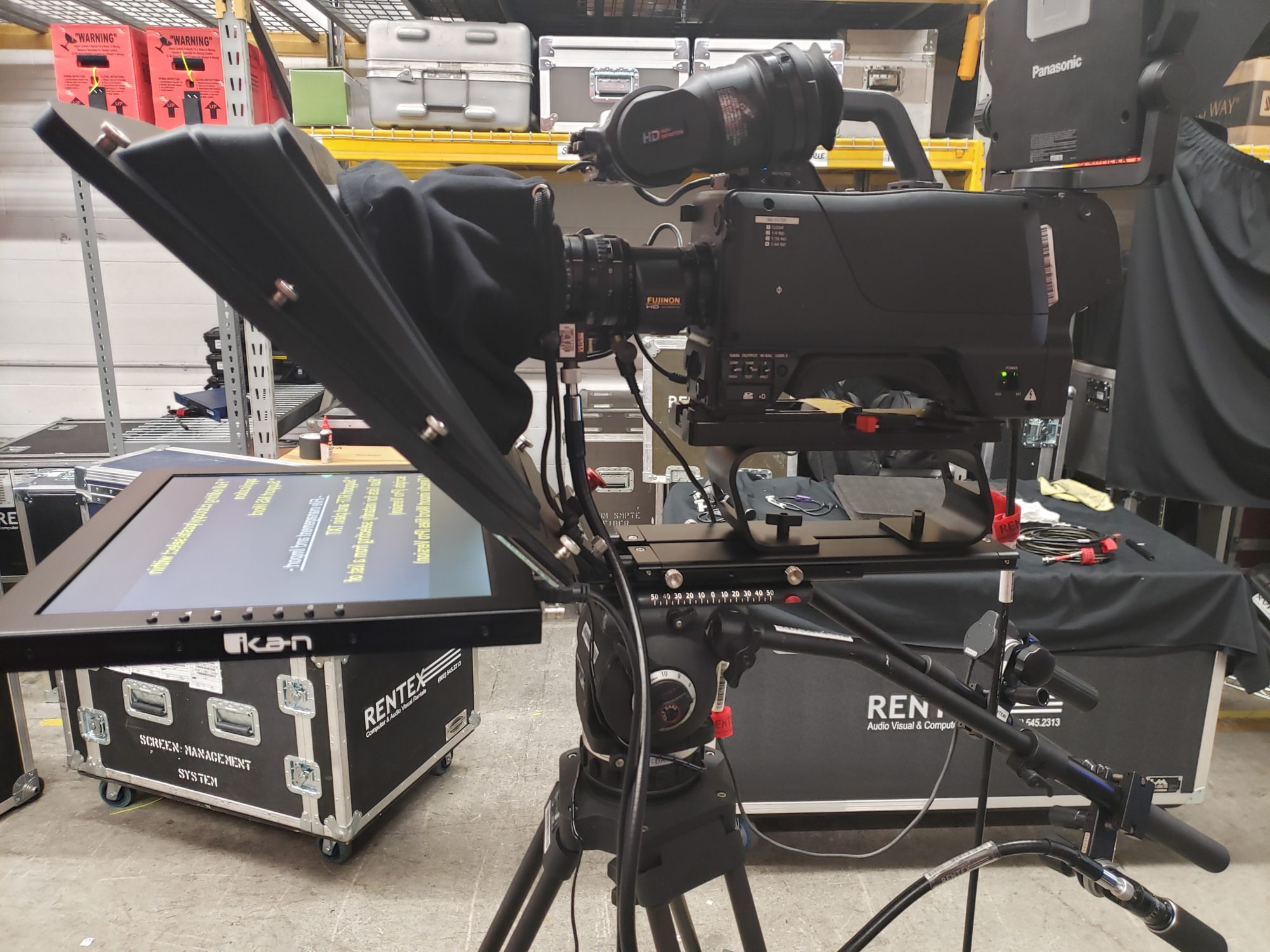

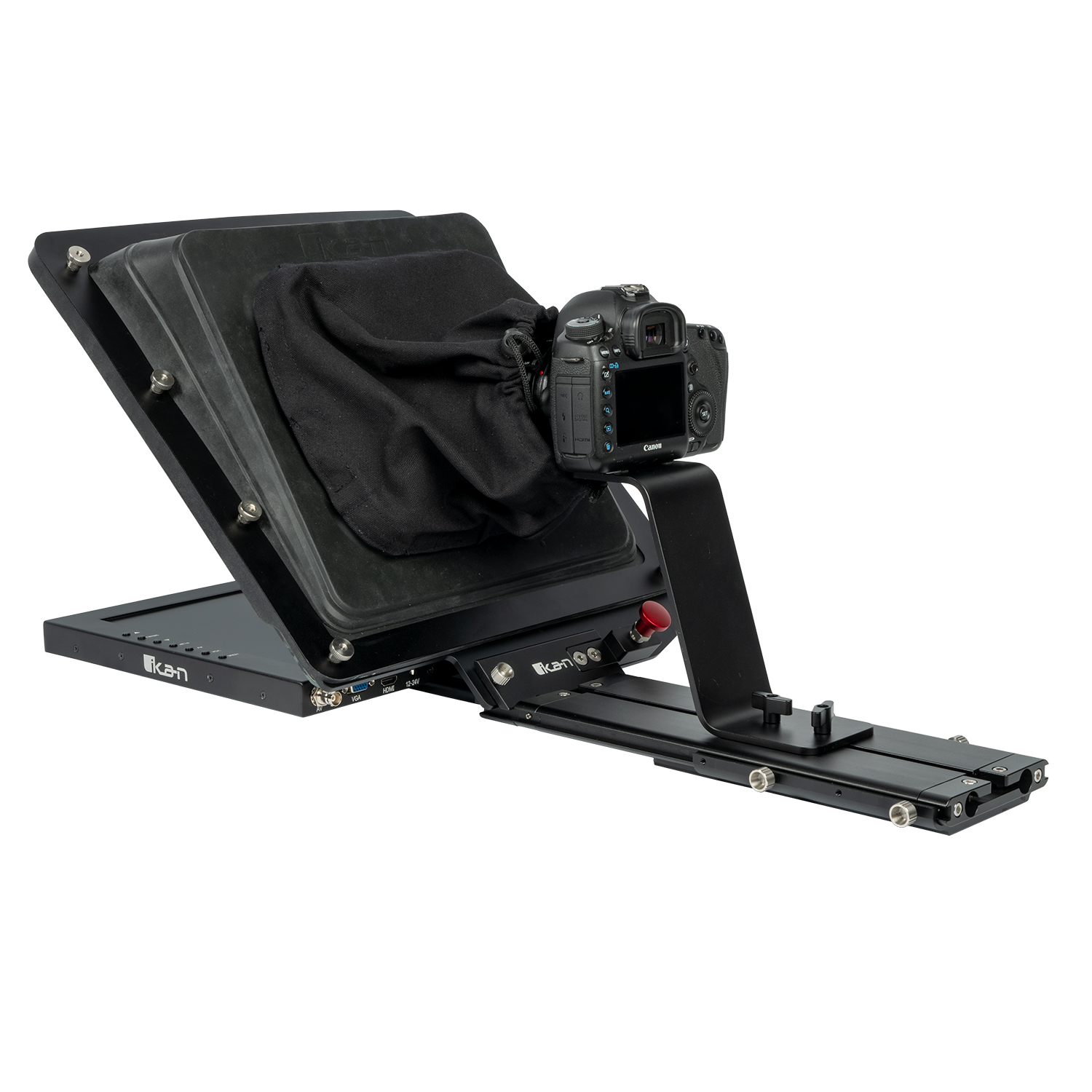

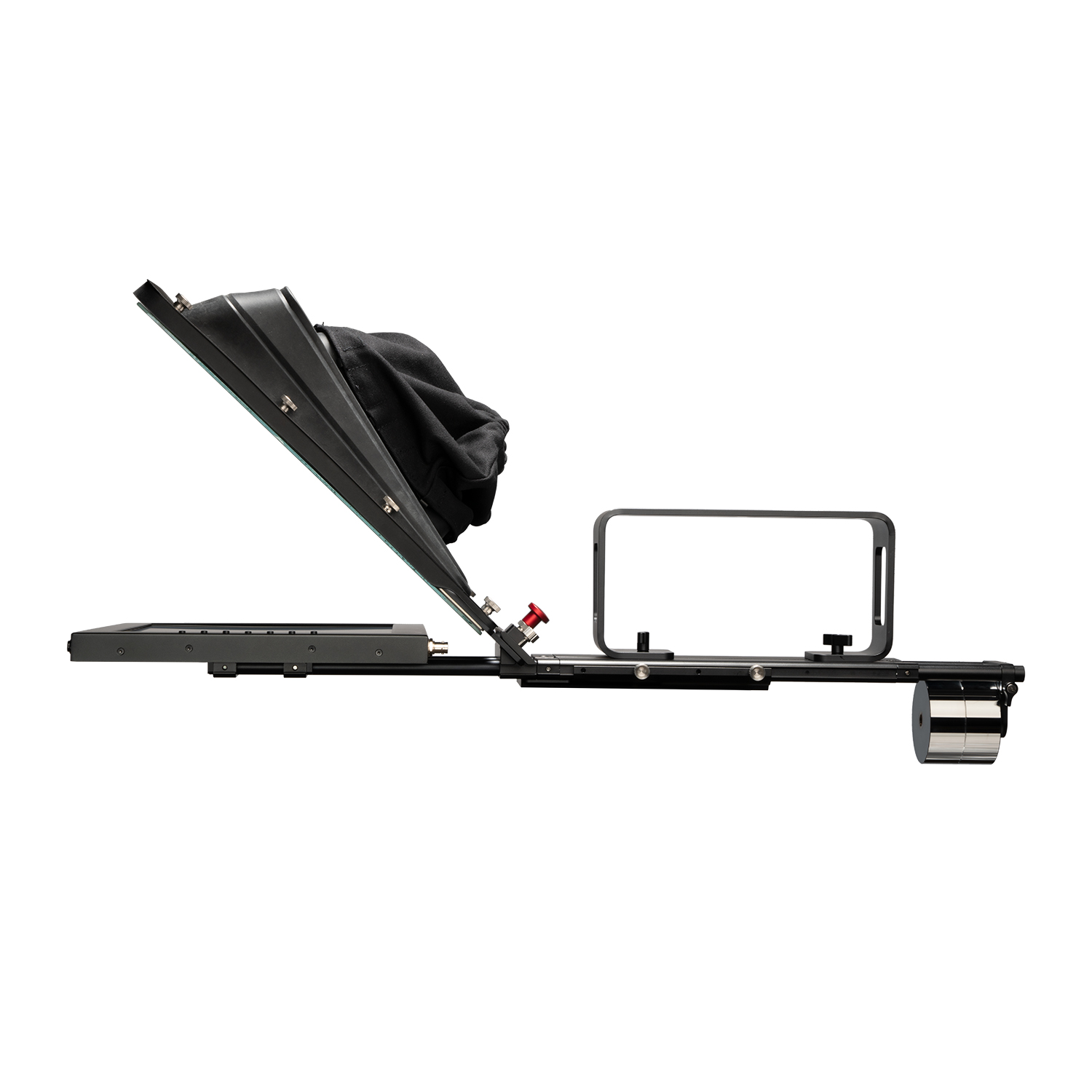

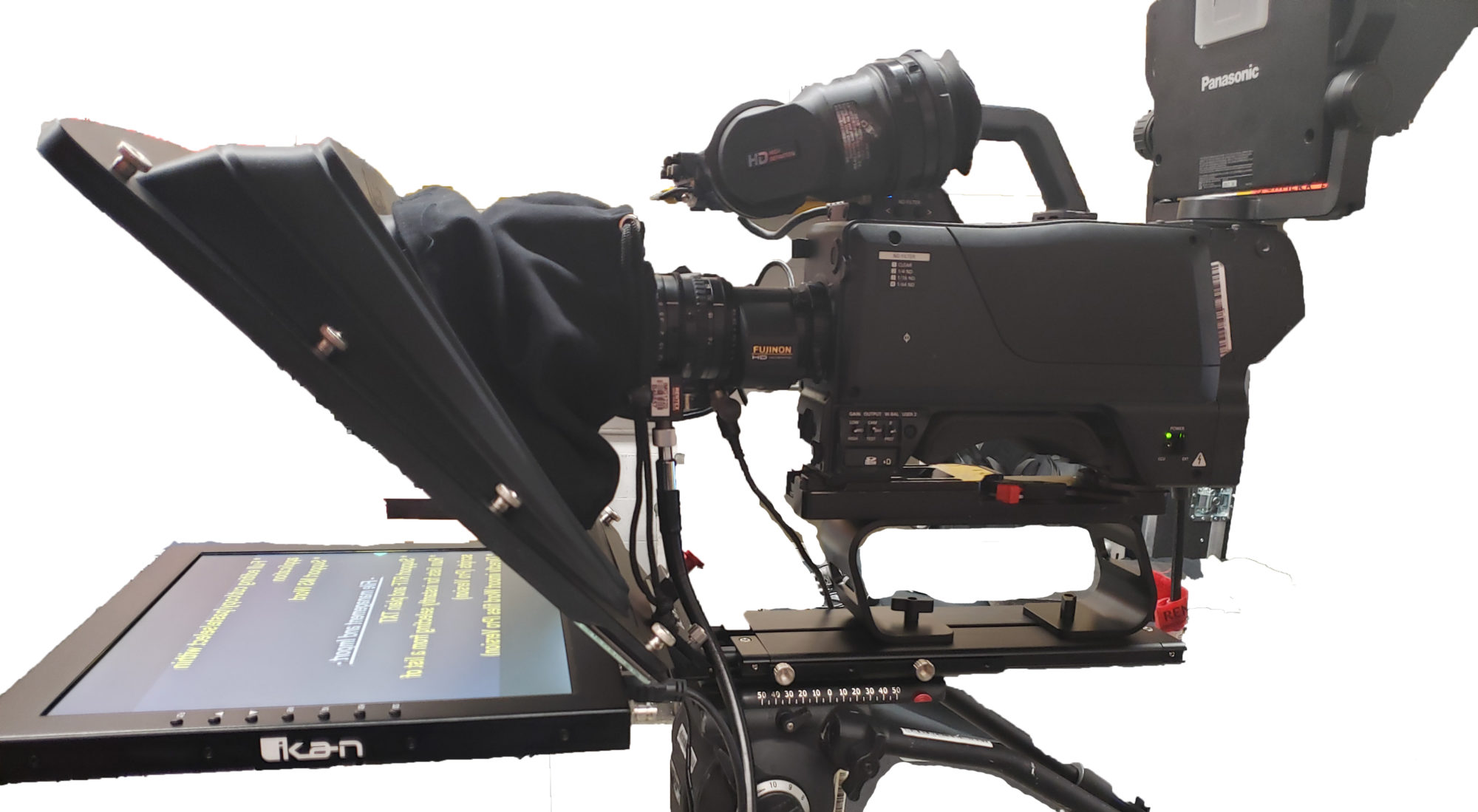

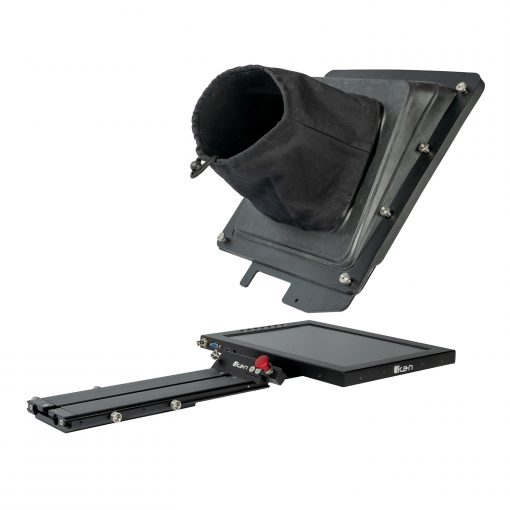

The PT4700-SDI Professional 17″ High-Bright Teleprompter from ikan offers three interchangeable camera mounts providing support for a wide range of cameras. One fits DSLR/mirrorless cameras, one is for small to large camcorders, and the third is for VCT plates for attaching ENG cameras. A 17″ monitor, a collapsible hood, and one of the camera mounts easily attach to the base of the teleprompter, and the base can then be mounted on a tripod or pedestal via multiple 1/4″-20 and 3/8″-16 mounting threads. The monitor features a display resolution of 1280 x 1024.

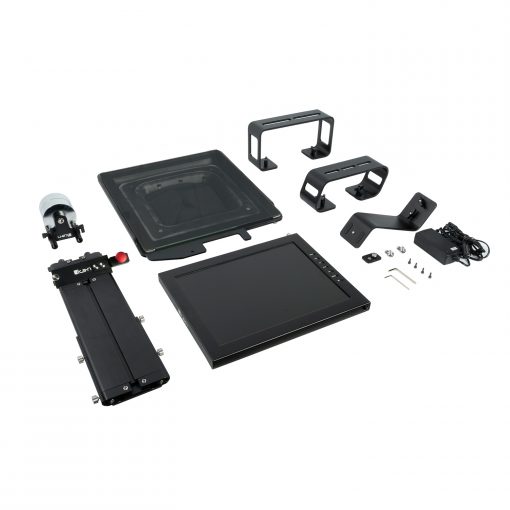

What's in the Case?

PRS3000- ikan PT4700 Beamsplitter with Hood/ Boot
PRS3005- ikan PT4700 Teleprompter Base with Rods
PRS3010- ikan 17″ High Bright Monitor
PRS3015- ikan PT4700 Frame Bracket
PRS3020- (2) ikan Monitor Mounting Bracket
PRS3025- AC Adapter for ikan PT4700-SDI monitor
PRS3030- ENG Riser
PRS3035- Camcorder Riser
PRS3040- DSLR Riser
PRS3055- (2) Counterweight (2.5 lb)
PRS3060- Counterweight Bracket
PRS3065- (2) Cournterbalance Extension Rod
PRS3045- Flip-Q Pro Teleprompting Software
PRS3070- Case: ikan PT4700-SDI Teleprompter

Specifications

General

Reading Range	20′ / 6.1 m
Beamsplitter Ratio	70/30
Beamsplitter Shape	Rectangular
Beamsplitter Material	Glass
Tripod Mount Type	8 x 1/4″-20 Female 6 x 3/8″-16 Female

Monitor

Size (Diagonal)	17″ / 43.2 cm
Maximum Brightness	1000 cd/m²
Resolution	1280 x 1024
Aspect Ratio	4:3
Viewing Angle (H x V)	160 x 170°
Input	1 x HD-SDI (BNC) 1 x HDMI 1 x VGA
Self Reversing	Yes
Power Consumption	≥10 W
