Product Highlights
- 3G-SDI, HDMI, and VGA Inputs
- 1280 x 1024 Display Resolution
- 1000 cd/m² Monitor with Image Flip
- Three Mounts for Compact to ENG Cameras
- 70/30 Beam Splitter Glass
Overview

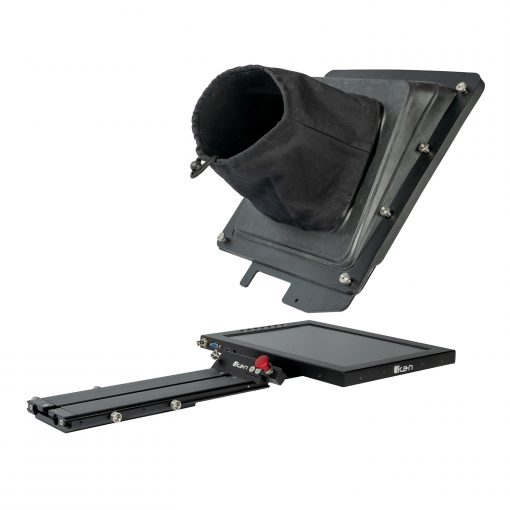

The PT4700-SDI Professional 17″ High-Bright Teleprompter from ikan offers three interchangeable camera mounts providing support for a wide range of cameras. One fits DSLR/mirrorless cameras, one is for small to large camcorders, and the third is for VCT plates for attaching ENG cameras. A 17″ monitor, a collapsible hood, and one of the camera mounts easily attach to the base of the teleprompter, and the base can then be mounted on a tripod or pedestal via multiple 1/4″-20 and 3/8″-16 mounting threads. The monitor features a display resolution of 1280 x 1024.

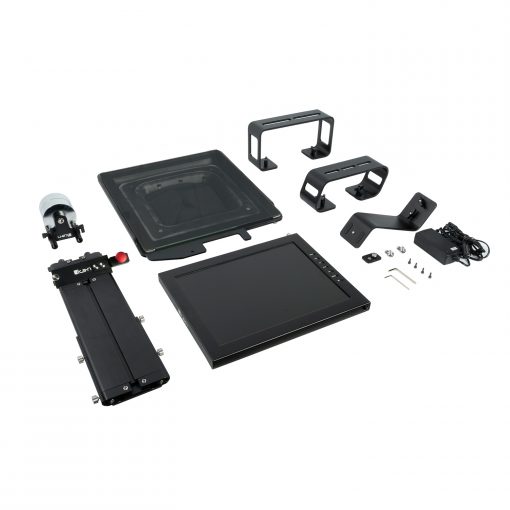

What's in the Case?
- PRS3000- ikan PT4700 Beamsplitter with Hood/ Boot
- PRS3005- ikan PT4700 Teleprompter Base with Rods
- PRS3010- ikan 17″ High Bright Monitor
- PRS3015- ikan PT4700 Frame Bracket
- PRS3020- (2) ikan Monitor Mounting Bracket
- PRS3025- AC Adapter for ikan PT4700-SDI monitor
- PRS3030- ENG Riser
- PRS3035- Camcorder Riser
- PRS3040- DSLR Riser
- PRS3055- (2) Counterweight (2.5 lb)
- PRS3060- Counterweight Bracket
- PRS3065- (2) Cournterbalance Extension Rod
- PRS3045- Flip-Q Pro Teleprompting Software
- PRS3070- Case: ikan PT4700-SDI Teleprompter
Specifications
General
| Reading Range | 20′ / 6.1 m |
| Beamsplitter Ratio | 70/30 |
| Beamsplitter Shape | Rectangular |
| Beamsplitter Material | Glass |
| Tripod Mount Type | 8 x 1/4″-20 Female 6 x 3/8″-16 Female |
Monitor
| Size (Diagonal) | 17″ / 43.2 cm |
| Maximum Brightness | 1000 cd/m2 |
| Resolution | 1280 x 1024 |
| Aspect Ratio | 4:3 |
| Viewing Angle (H x V) | 160 x 170° |
| Input | 1 x HD-SDI (BNC) 1 x HDMI 1 x VGA |
| Self Reversing | Yes |
| Power Consumption | ≥10 W |
Software
| Supported Operating Systems | Windows, Mac |
Physical
| Material of Construction | ABS, Aluminum, Cloth |
| Weight | 23 lb / 10.43 kg |

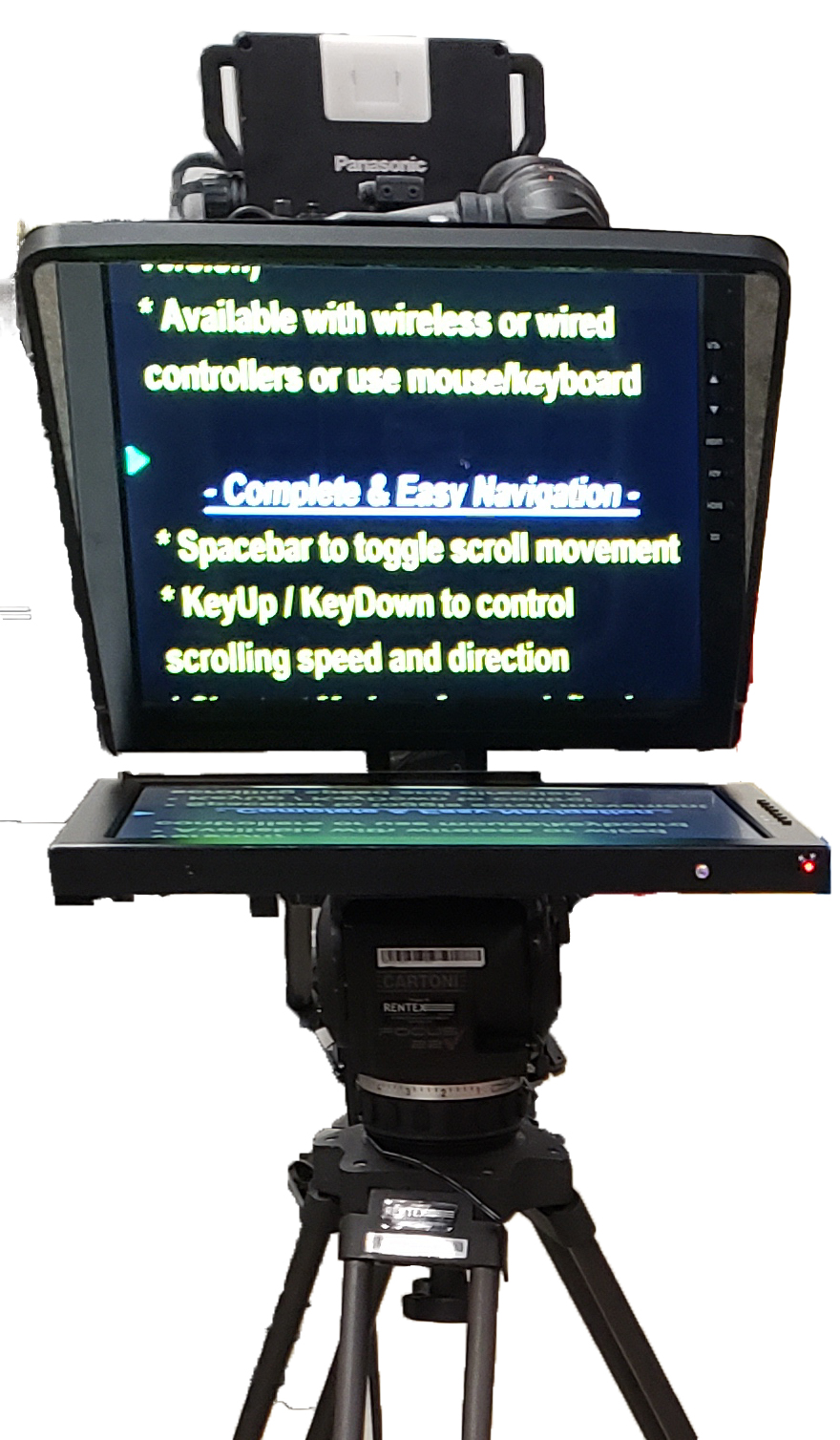

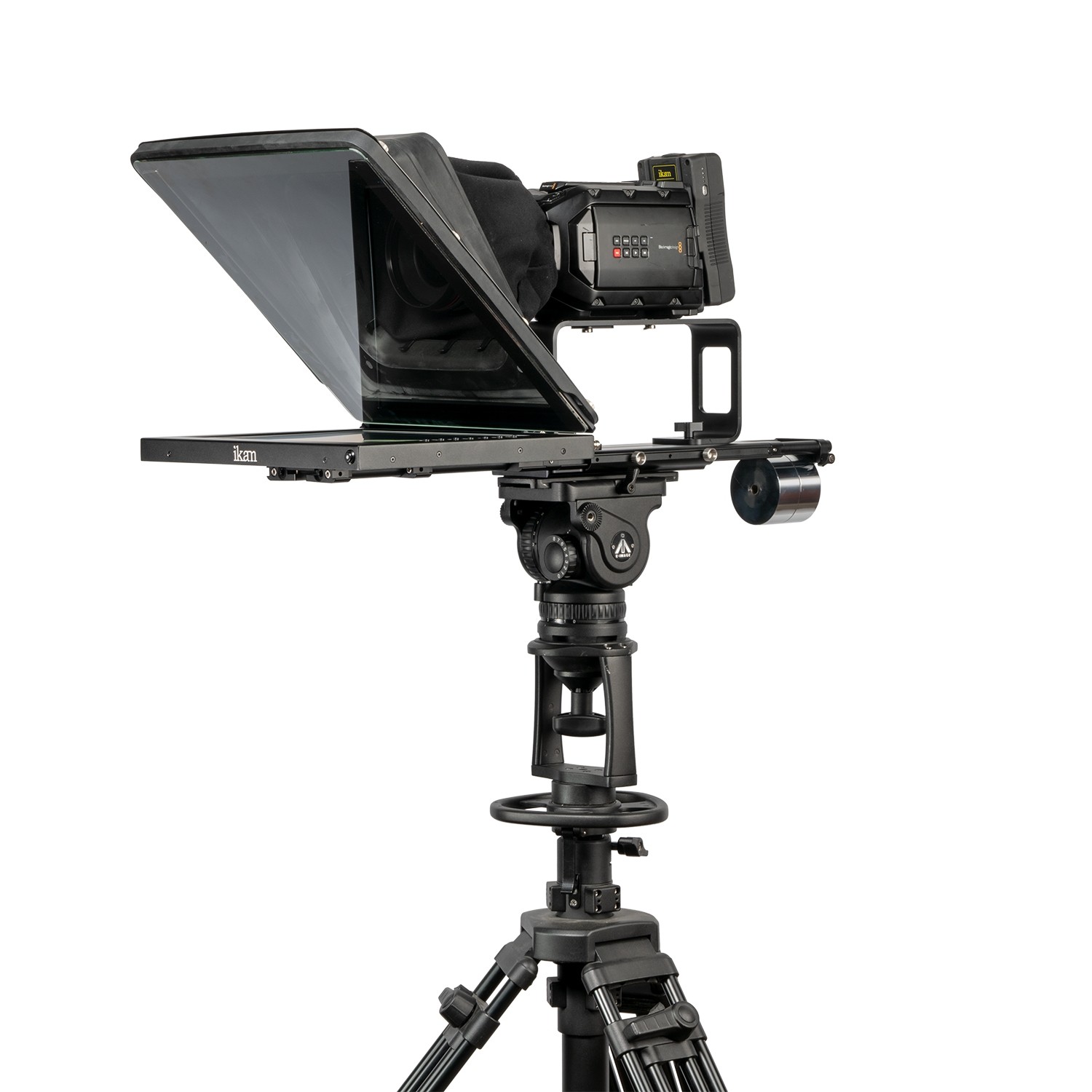

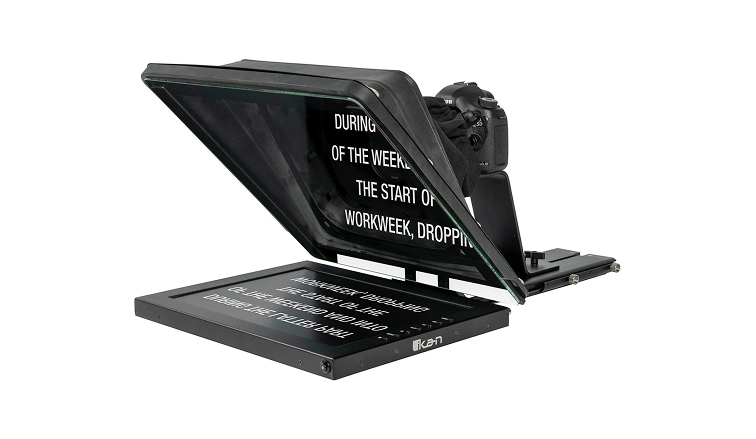

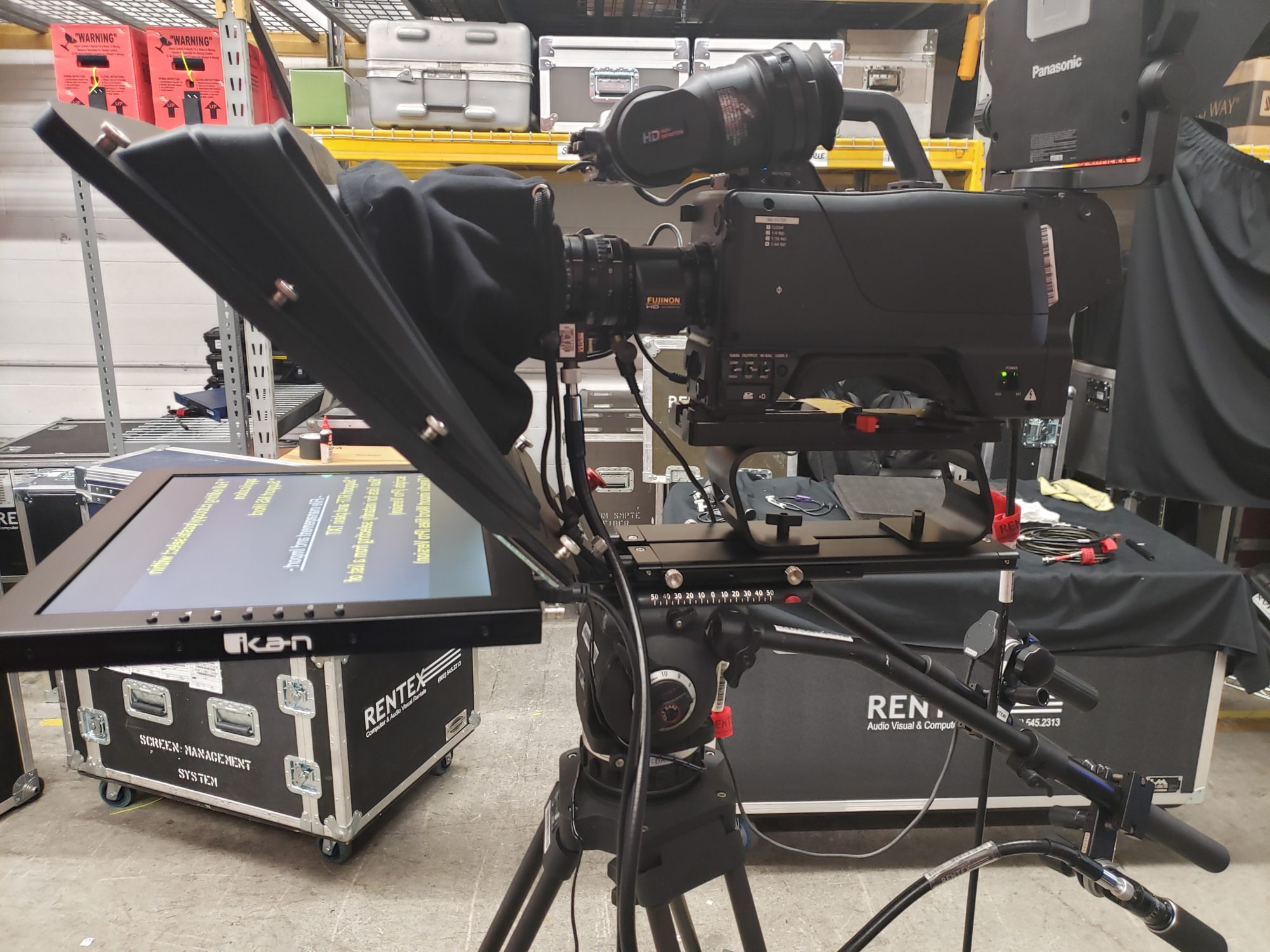

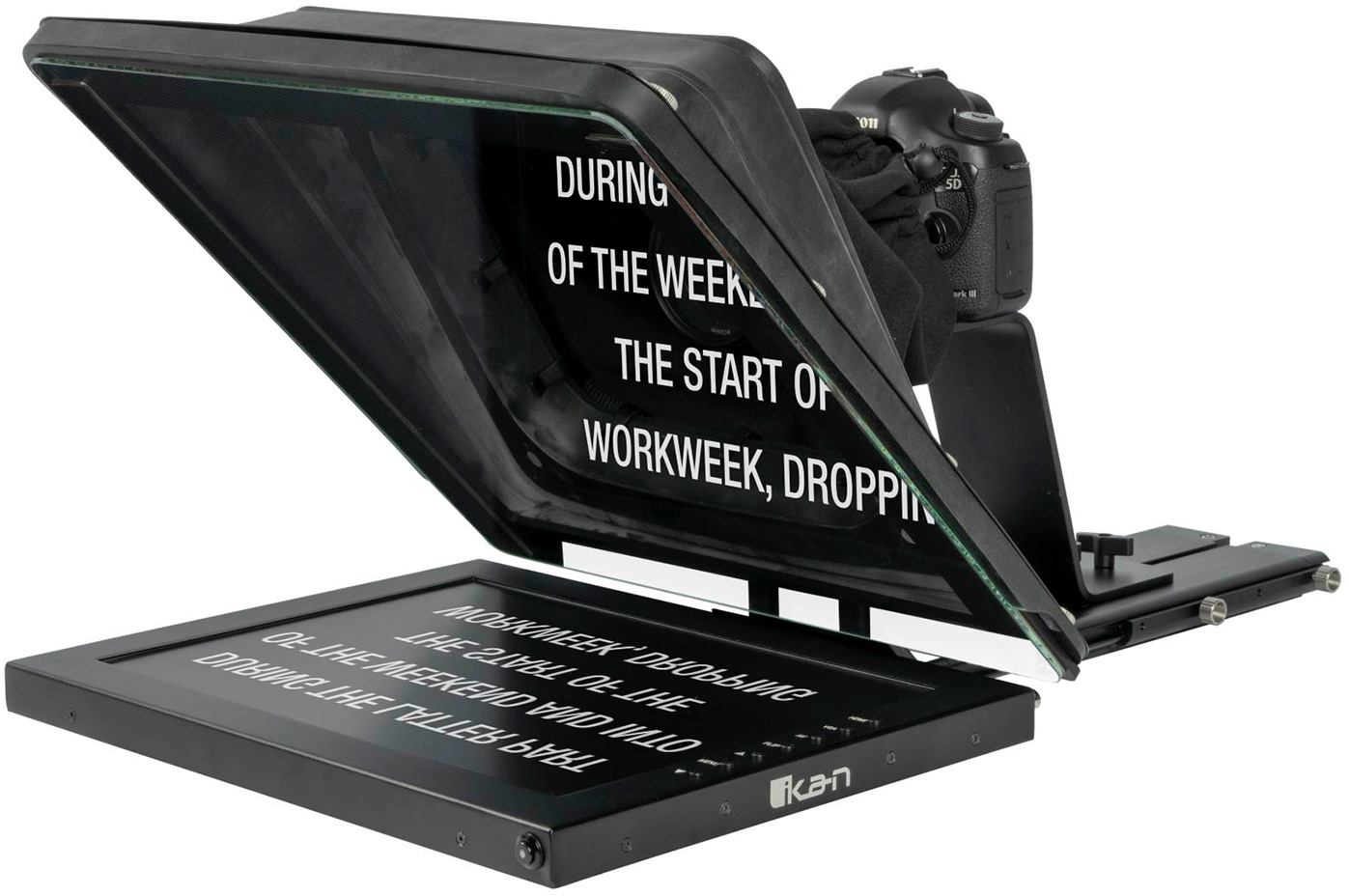

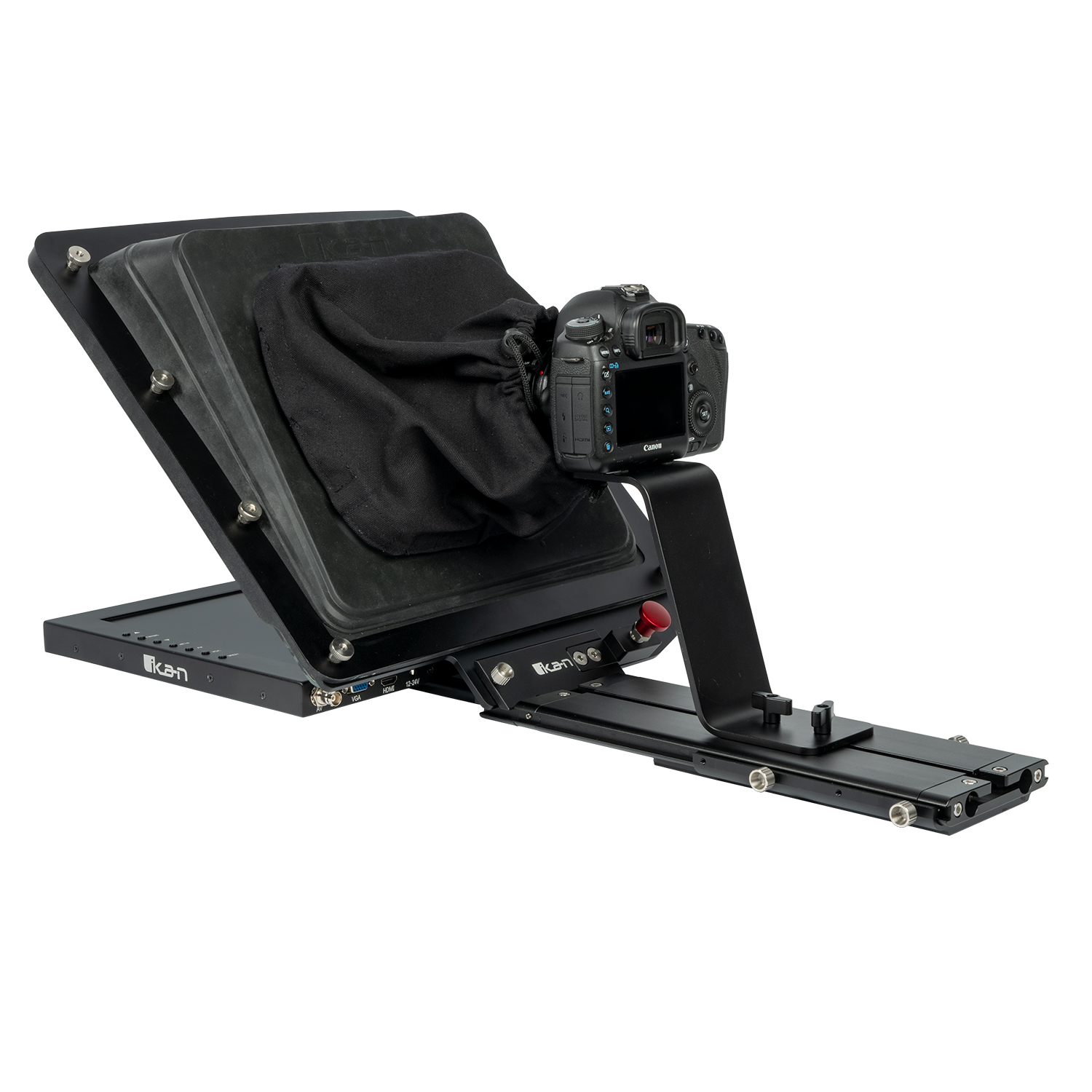

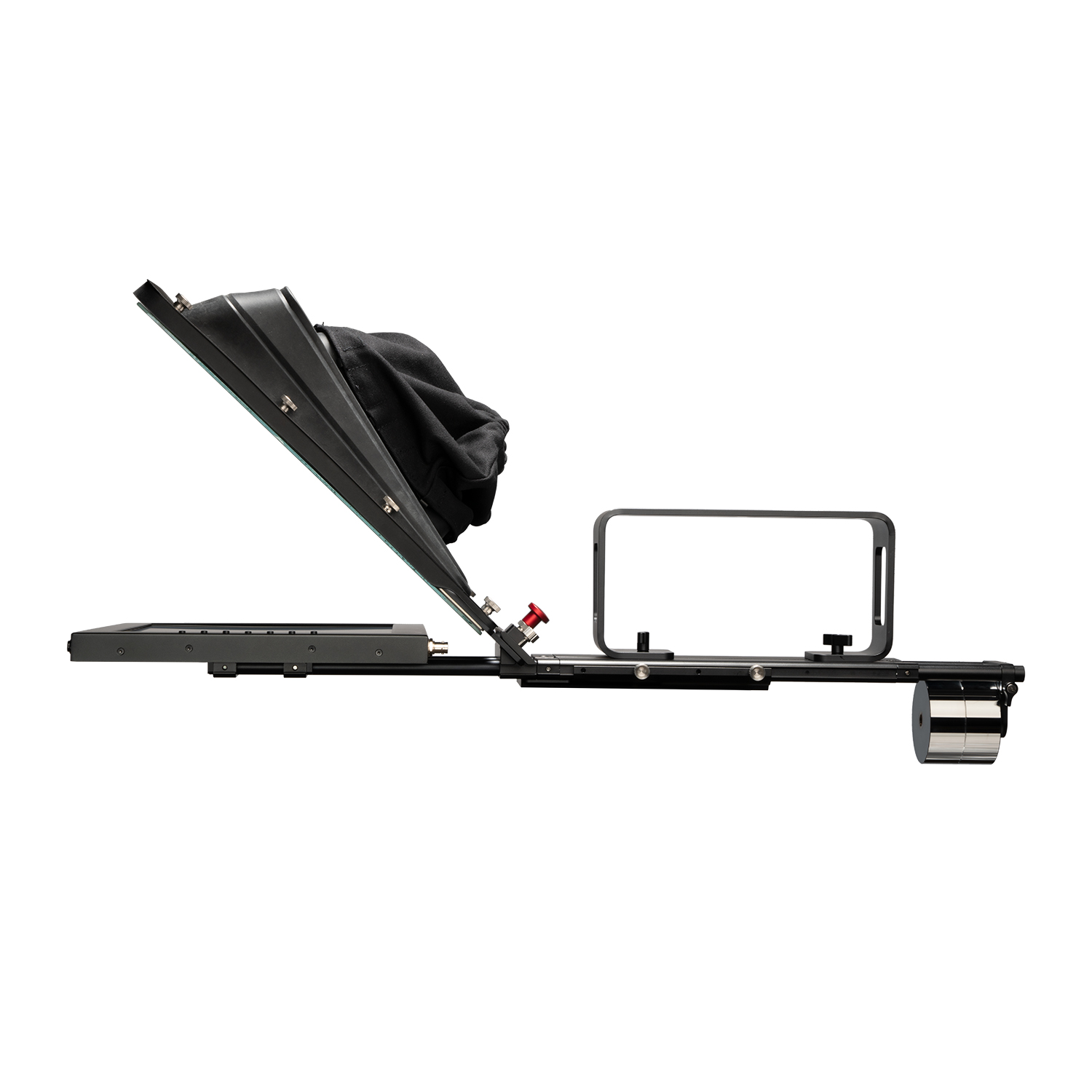

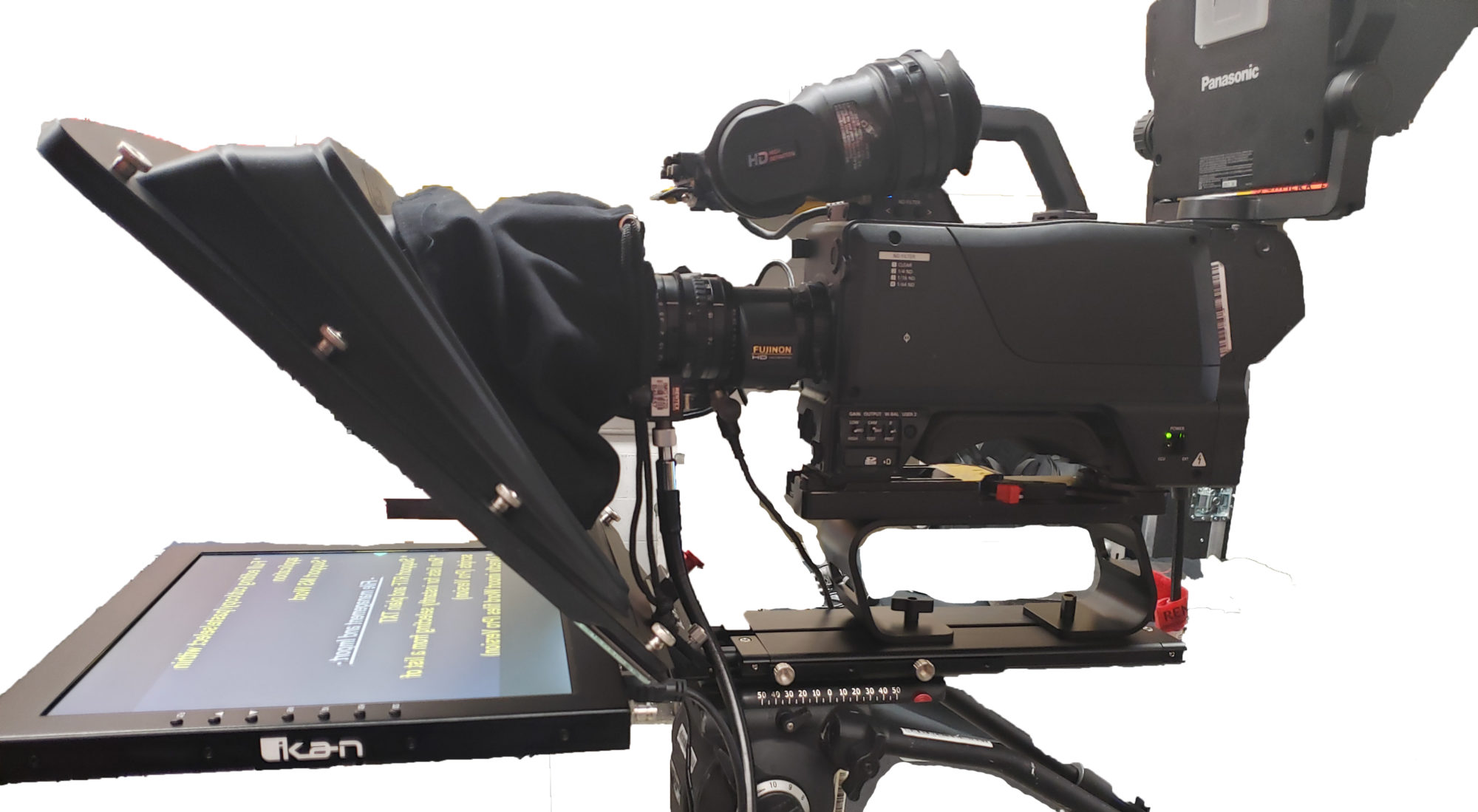

ikan PT4700-SDI Prompter System
17″ High Bright Beam Splitter On-Camera Teleprompter
- Rentex No. IKANPT4700
- Mfr No. PT4700-SDI
-
