Product Highlights

Intel i7-1360P (3.7GHz, 12-Core, 13th Gen)
16GB DDR4-3200MHz, 512GB SSD M.2, Intel Iris Xe Graphics (integrated)
2x HDMI 2.1 (4096×2304 @ 60Hz), 2x Thunderbolt 4 (4096×2304 @ 60Hz), 3x USB 3.2 Gen2, 1x USB 2.0, 1x 3.5mm Headset Jack, 1x 2.5Gb LAN
Wi-Fi 6E AX211 (802.11ax), Bluetooth 5.2

Overview

Intel® NUC 13 Pro Mini PCs and Kits raise the bar for performance and connectivity in a 4×4 device. 13th Gen Intel® Core™ processors deliver revved-up performance with up to 64 GB dual-channel memory and ample SSD capacity-plus lightning-fast wired and wireless connectivity.

What's in the Case?

DLTPS120W – Delta 120W NUC 12th Gen Power Supply LOGIK400P – Logitech K400 Plus wireless touch keyboard USBMOUSE – Wired usb mouse ROCKSTORLO – Rocstor combination computer laptop cable lock

Specifications

Essentials
Product Collection	Intel® NUC Kit with 13th Generation Intel® Core™ Processors
Code Name	Products formerly Arena Canyon
Processor Included	Intel® Core™ i7-1360P Processor (18M Cache \| up to 5.00 GHz)
Board Number	NUC13ANBi7

Supplemental Information
Marketing Status	Launched
Launch Date	Q1’23
Expected Discontinuance	1H’26
Included Items	VESA bracket

CPU Specifications
Total Cores	12
Total Threads	16
Max Turbo Frequency	5.00 GHz

Memory & Storage
Max Memory Size (dependent on memory type)	64 GB
# of Memory Slots	2
Memory Types	DDR4-3200 1.2V SODIMMs
Max # of Memory Channels	2
ECC Memory Supported ‡	No
Internal Drive Form Factor	M.2 and 2.5″ Drive
# of Internal Drives Supported	3
M.2 Card Slot (storage)	22×80 NVMe (M); 22×42 SATA (B)

I/O Specifications
Graphics Output	2x HDMI 2.1 TMDS Compatible \| 2x DP 1.4a via Type C
# of Displays Supported ‡	4
# of Thunderbolt™ Ports	2x Thunderbolt™ 4
# of USB Ports	4

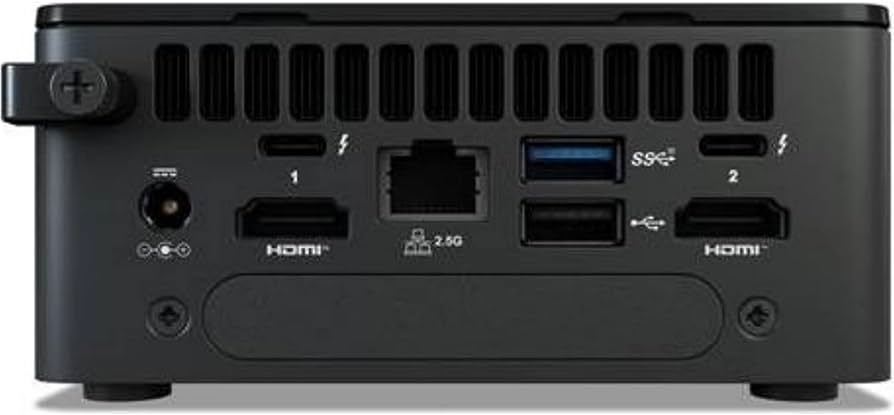

USB Configuration	Front: 2x USB 3.2 Rear: 2x USB 4 (type C) \| 1x USB 3.2 \| 1x USB 2.0 Internal: 1x USB 3.2 on m.2 22×42 (pins) \| 2x USB 2.0 (headers)
Total # of SATA Ports	1
Serial Port via Internal Header	No
Audio (back channel + front channel)	Front panel: 3.5mm headphone/mic jack
Integrated LAN	Intel® Ethernet Controller i226-V
Wireless Included	Intel® Wi-Fi 6E AX211 (Gig+)
Bluetooth Version	5.3
M.2 Card Slot (wireless)	22×30 (E)
Additional Headers	Front_panel (PWR \| RST \| 5V \| 5Vsby \| 3.3Vsby); Internal 2×2 power connector

Expansion Options
PCI Express Revision	Gen 4 (m.2 22×80 slot); Gen 3 (otherwise)
PCI Express Configurations ‡	PCIe x4 Gen 4: M.2 22×80 (key M) PCIe x1 Gen 3: M.2 22×42 (key B) PCIe x1: M.2 22×30 (key E)

Package Specifications
DC Input Voltage Supported	12-20 VDC
Chassis Dimensions	117 x 112 x 54 [mm] (LxWxH)
Board Form Factor	UCFF (4″ x 4″)

Advanced Technologies
Intel® HD Audio Technology	Yes
Intel® Optane™ Memory Supported ‡	No
Intel® Virtualization Technology for Directed I/O (VT-d) ‡	Yes
Intel® Virtualization Technology (VT-x) ‡	Yes

Security & Reliability
Intel® Platform Trust Technology (Intel® PTT)	Yes
Intel® ME Firmware Version	16.1
Intel® AES New Instructions	Yes
