Panasonic AK-UC4000GSJ

4K Studio Camera Kit

Mouse roll-over to zoom image.

Product Highlights

All-In-One Case Solution Including Fiber
Large 4.4K sensor
Focus assist
Best solution for IMAG, broadcast or capture
UHD mode: 12G-SDI or Quad-Link 3G-SDI output, and HD Mode: 1080p, 1080i and 720p

Rentex No. IMG2500-KIT | Mfr No. AK-UC4000GSJ

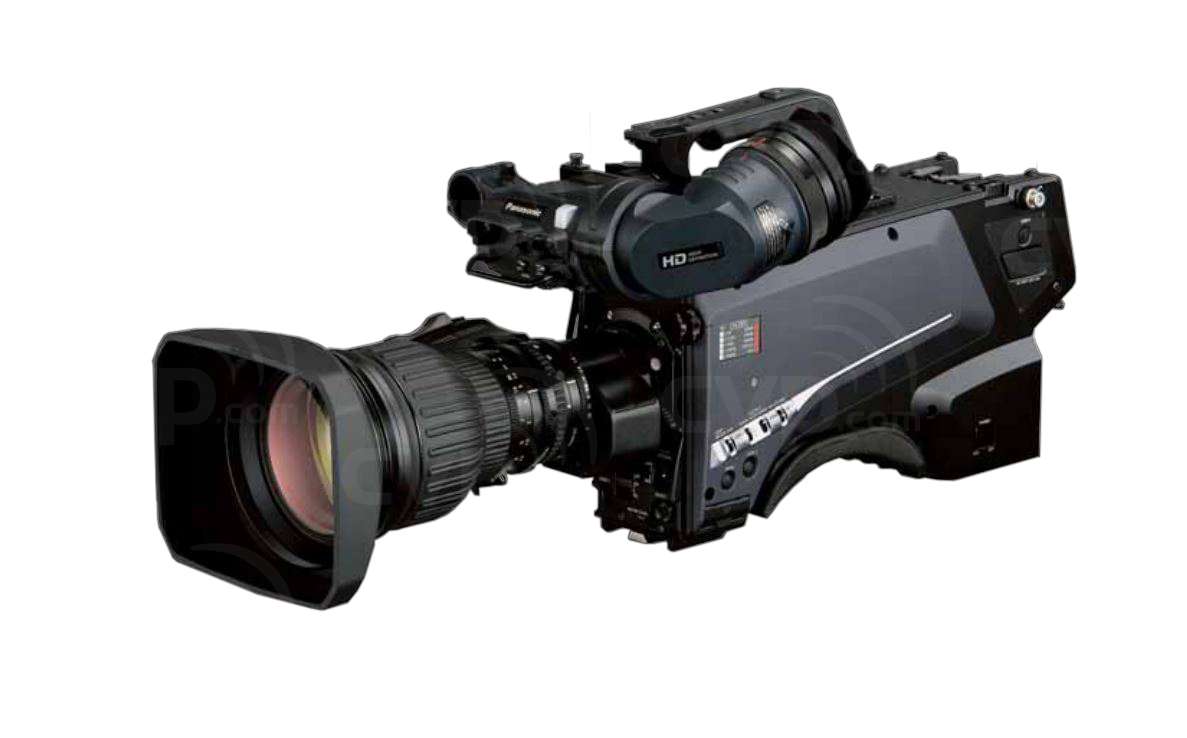

The Panasonic AK-UC4000GSJ is a 4K studio camera with high video quality. It’s compatible with a 2/3 lens mount and contains a newly developed large 4.4K sensor. Our kit includes everything you need all-in-one case, including fiber!

Panasonic AK-UC4000GSJ Brochure

Panasonic AK-UC4000GSJ Spec Sheet from Rentex

Panasonic AK-UC4000GSJ Mfr Spec Sheet

AK-UC4000 4K Camera
AK-UCU600 Camera Control Unit
AK-HRP1000 ROP
AK-HVF100 Studio Viewfinder
Fujinon HD Lens ZA 17×7.6 BERM-M6C (see below for additional lens options)
CFH-11 Focus Control
Cartoni Tripod
SMPTE REEL w/330′ OCC SMPTE-FLEX Cable

Panasonic AK-UC4000 4K Studio Camera Product Promotion

Power Supply	DC 12 V (when using an external power supply)
	AC 240 V, 50 Hz/60 Hz (when connecting to an AK-UCU600PJ/
	AK-UCU600EJ/AK-UCU600PSJ/AK-UCU600ESJ)
Power Consumption	119 W (maximum for the camera only, when connecting to an external 12 V) 360 W (when connecting to an AKUCU600PJ/AK-UCU600EJ/AK-UCU600PSJ/AK-UCU600ESJ)
Operating Temperature	14°F to 113°F
	(Preheating required under a temperature 0 °C (32 °F) or below)
Storage Temperature	-4°F to 140°F
Operating Humidity	85% or less (relative humidity)
Weight Approx.	9.92 lb (body only, excluding the accessories)
Dimensions (W x H x D)	Body only 151 mm x 267 mm x 371.5 mm
Pickup Device	11.14 megapixels, MOS x 1
Optical Filter	CC: 3200 K, 4300 K, 6300 K, Cross, Diffusion
	ND: CAP, Clear, 1/4, 1/16, 1/64
Lens mount	2/3-type bayonet
Sensitivity	Two shooting modes
	[HIGH SENS]: F10 (59.94 Hz)/F11 (50 Hz)
	[NORMAL]: F6 (59.94 Hz)/F7 (50 Hz)
	2000 lx, 3200 K, when white reflectivity is 89.9%
Horizontal Resolution	4K: 2000 TV lines or above (center)
	AK-UCU600PJ/AK-UCU600EJ/AK-UCU600PSJ/
	AK-UCU600ESJ output
	HD: 1000 TV lines or above (center)
S/N	62 dB or above
Horizontal Modulation	50% or above (27.5 MHz)
