Panasonic ET-C1U100

Panasonic ET-C1U100 0.308 - 0.330 :1

Mouse roll-over to zoom image.

Product Highlights

Compatible with Panasonic PT-REQ12, PT-REQ10, PT-REQ80, PT-REZ12, PT-REZ10, and PT-REZ80
Front Lens Cover
Rear Lens Cover

Rentex No. C1U100 | Mfr No. C1U100

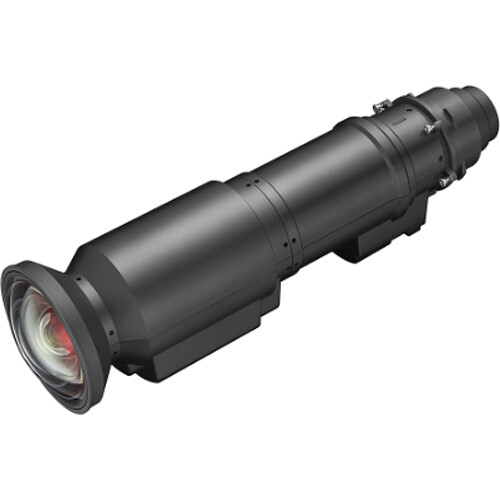

The ET-C1U100 0.308-0.330:1 Ultra-Short-Throw Projector Lens from Panasonic is an optional lens for the PT-REQ and PT-REZ series projectors. Providing an ultra-short 0.308-0.330:1 throw ratio, the ET-C1U100 can help you bring your projector closer to the screen where needed, helping you achieve a large image in a tight space. For example, this zoom lens can fill a 200″ diagonal 16:9 or 16:10 aspect ratio screen with a distance of just 4.5′ between the lens and the projection surface.

Specifications

Key Specs

Lens Type	Ultra Short-Throw
Motorized	Yes
Throw Ratio	0.308 to 0.330:1 (16:10) 0.308 to 0.331:1 (16:9) 0.371 to 0.398:1 (4:3)
Aperture	f/2.1
Focal Length	f = 5.4 to 5.8mm

General

Compatibility	Panasonic PT-REQ12 Panasonic PT-REQ10 Panasonic PT-REQ80 Panasonic PT-REZ12 Panasonic PT-REZ10 Panasonic PT-REZ80
Lens Type	Ultra Short-Throw
Motorized	Yes

Performance

Throw Ratio	0.308 to 0.330:1 (16:10) 0.308 to 0.331:1 (16:9) 0.371 to 0.398:1 (4:3)
Aperture	f/2.1
Focal Length	f = 5.4 to 5.8mm
Throw Distance	1.57 to 15.81′ / 0.48 to 4.82 m
Projection Size	70 to 700″ / 1.8 to 17.8 m
Aspect Ratio	16:10
Lens Shift Percentage	Vertical: ±50% Horizontal: ±23%
