Product Highlights

Designed and pre-wired to make it plug and play to save time on show
Includes a special router output for the show lighting designer

Overview

Designed and pre-wired to make it plug and play to save time on show. Just give it power, patch in your cameras to the inputs, and everything else is already pre-wired and programmed. The system includes a special router output for the show lighting designer that allows them to go through the inputs and see their look to make sure it is exactly how they want it.

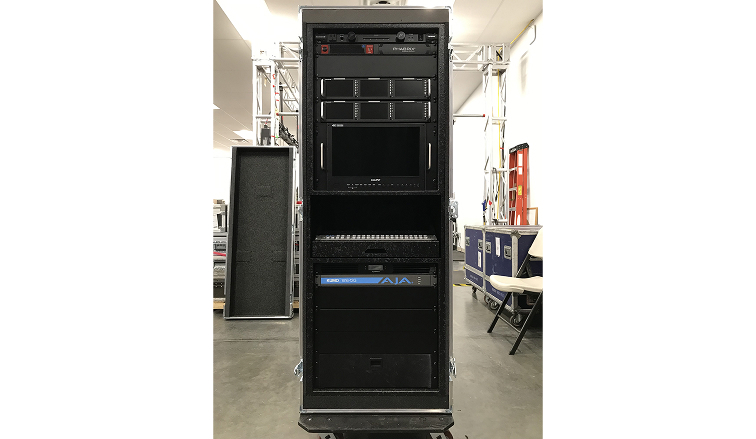

What's in the Case?

Phabrix QX 12G 12G-SDI Rasterizer, Test pattern Generation- including Pathological and moving patterns, 32 channel audio signal generation, video and audio monitoring, Timing analysis
Lilliput BM150-12G 15.6” 12G monitor with 12G SDI input and HDMI 2.0 input
AJA Kumo 12G 16×16 router
AJA Kumo CP 16×16 router control panel
AJA HI-5 12 G 12G SDI to HDMI 2.0 convertor
AJA HA-5 12G HDMI 2.0 to 12G SDI convertor
Marshall M-Lynx 504 Monitors (X2) 3-5” monitor bank for camera preview

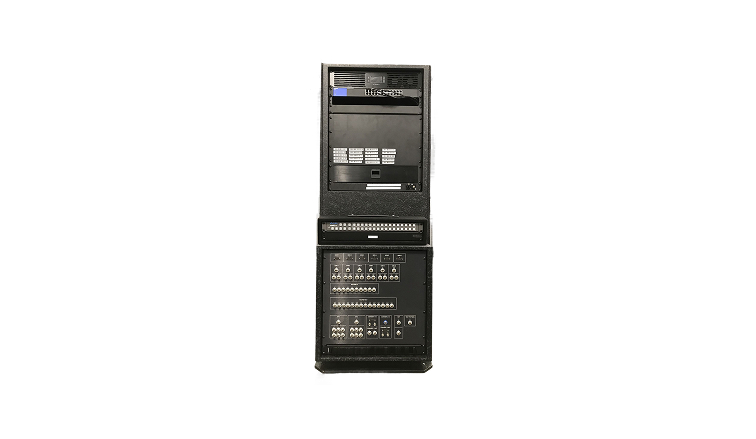

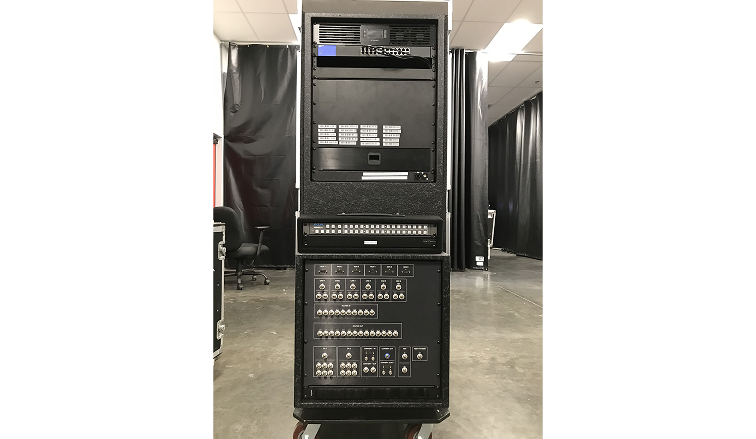

Custom Rack, Patch panel and prewired for first 6 camera inputs
