AJA Equipment Rentals Available Nationwide
AJA Ki Pro Ultra Plus
4K & 2K UltraHD Recorder and Player
Expanding on the Ki Pro Ultra, the AJA Ki Pro Ultra Plus allows for four channels of simultaneous recording in up to 1080p60/50, as well as single channel recording and playback of DCI 4K, Ultra HD 4K, 2K, and HD signals. Ki Pro Ultra Plus features four 3G-SDI inputs and one HDMI input, and the same number of outputs, and also supports optional fiber modules for extended distances.

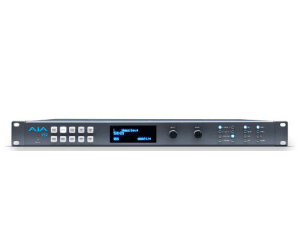

Dual Channel Frame Synchronizer and Converter
The AJA FS2 Dual Channel Frame Synchronizer and Converter supports two independent streams of 3G/HD/SD 10-bit Broadcast quality video and two independent groups of 16-channel AES audio simultaneously. Each individual video channel supports analog component or composite, 3G/HD/SD-SDI, Dual-Link, and HDMI I/O inputs/outputs. You can use the FS2 as two separate frame synchronizers/format converters, or the two channels can be linked with the internal keyer to do the work of multiple devices, such as HD sidebar keying where both the video and background graphics are up converted and combined. Each channel features still-store, keyer, and video proc amp/color corrector offering more expansion options.
AJA Ki Pro
Portable file-based HD/SD recorder and player
The AJA Ki PRO is a unique recording device designed to streamline post production workflow by simplifying video acquisition. The unit features both SDI and HDMI inputs, making it compatible with most prosumer and professional cameras. The device records to high capacity drives from a wide variety of cameras and comes equipped with a 250GB drive for large recording capacity.

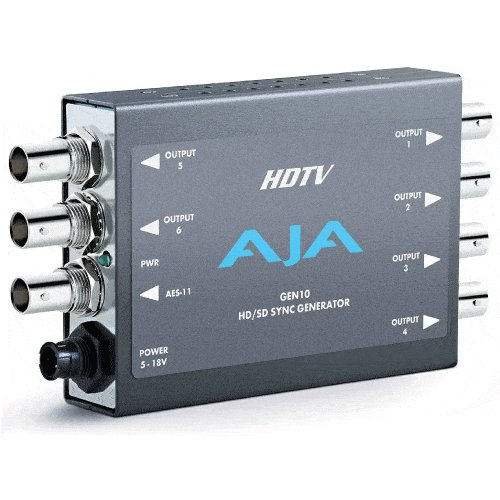

HD/SD Sync Generator
The GEN10 is a flexible SD/HD/AES sync generator. The GEN10 features 7 outputs including 2 groups of independently controlled SD/HD sync outputs and 1 AES-11 output. The SD outputs can be switched between Color Black or Color Bars. HD tri-level sync can be switched between 19 different HD formats including all that are in use today. The AES-11 output can be switched between SILENCE and TONE. All outputs are in sync with each-other and are sourced from an accurate master time base.
Mini Converter: HDMI to HD-SDI/SDI Video & Audio Converter
The HA5 HDMI to SD/HD-SDI Video and Audio Converter from AJA converts (1) HDMI signal to SD- or HD-SDI output and is capable of embedding up to (8) channels of HDMI audio into the output signal for a single-cable audio-video connection. It features (2) SD/HD-SDI outputs.
This unit equalizes the input signal to support extended HDMI cable runs of up to 131′. PLL clock filtering is included to produce low jitter on output signals. LED lights provide a visual indicator of line status. It does not support HDCP content, meaning copyright-protected media may not display correctly with this device.
HDMI to HD/SDI Video & Audio Converter
The AJA HA5-Plus HDMI to 3G-SDI Mini-Converter allows you to output an HDMI signal to an SDI monitor, recorder, or other device in up to 1080p/60 4:2:2 10-bit. Up to eight channels of HDMI embedded audio can be passed through to the SDI output, or you can connect independent RCA analog audio and embed it on the SDI output.
When you connect RCA audio, you can decide whether to output the HDMI embedded audio or RCA audio or assign particular channels of each using AJA’s free-download MiniConfig control software. MiniConfig also provides detailed information about the current input and output formats, allows you to control all the parameters of the HA5-Plus, and lets you download firmware updates. It’s compatible with Mac and PC and interfaces with the converter via a USB connection between the converter and the computer.
The HA5-Plus features a compact, portable, and rugged design and comes with a universal power supply with international plugs for use around the world.
4K HDMI to 4K SDI Mini-Converter
The HA5-4K 4K HDMI to 4K SDI Mini-Converter from AJA provides high-quality conversion of 4K HDMI to 4K SDI via a quad-link 3G-SDI output at frame rates up to 50/60 fps. It also supports SD, HD, and 2K HDMI to SDI conversion as well. The HA5-4K automatically senses incoming HD/2K resolution HDMI signals and convert them to a single 3G-SDI output. Up to eight channels of HDMI embedded audio can be passed through to the SDI output, ensuring your audio is always in sync with the SDI signal. The HA5-Plus features a compact, portable, and rugged design and comes with a universal power supply with international plugs for use around the world.
SDI/HD-SDI to HDMI Video & Audio Converter
The Hi5 HD-SDI/SDI to HDMI Video and Audio Converter from AJA is a device designed to convert SDI or HD-SDI signals to HDMI for driving HDMI monitors. The Hi5 provides 2-channel, RCA-style, audio outputs for the separate monitoring of audio feeds. It also offers a looping SDI/ HD-SDI output, which is useful for connecting additional equipment or to achieve a daisy-chain configuration with multiple monitors running from the same SDI/HD-SDI source.
3G-SDI, dual or single link: HD-SDI, or SD-SDI to HDMI v1.3a
AJA’s Hi5-3G 3G/Dual Link/HD/SD-SDI to HDMI Mini-Converter converts 3G-SDI, dual or single link HD-SDI, or SD-SDI to HDMI v1.3a for driving HDMI monitors. HDMI v1.3a capability at 30 bits per pixel allows full support for 10-bit monitors. Audio is supported in the HDMI output allowing a convenient single cable audio/video connection. The Hi5-3G provides 2-channel RCA-style audio outputs for separate audio monitoring if needed. USB connectivity allows for easy PC/Mac setup and field upgrades. To power the mini-converter, a universal power supply is included with international plug connectors for worldwide use.
Note: The Hi5-3G does not encode the HDMI output with HDCP encryption. By definition, SDI/HD-SDI inputs to the Hi5-3G are unencrypted.

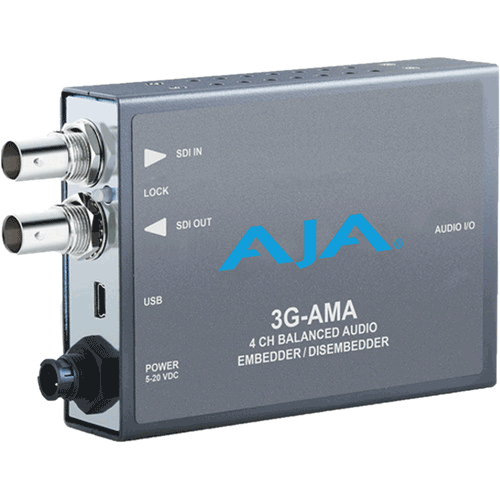

3G-SDI 4-Channel Analog Audio Embedder/Disembedder Mini-Converter
The AJA 3G-AMA is a 4-Channel analog audio Embedder/Disembedder with support for 3G-SDI input and output up to 1080p 60. Audio disembedding is always functional, providing 4 analog outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 3G-SDI input audio or to embed input analog audio from the breakout cable. Analog audio levels are selectable. The 3G-AMA automatically detects and configures to the input video standard
3G-SDI to HDMI 2.0 Converter
AJA’s Hi5-4K-Plus preserves your vision with pristine image fidelity and HFR support up to 60p for 4K/UltraHD SDI to HDMI 2.0 conversion needs. The Hi5-4K-Plus can also generate HDR metadata in accordance with HDMI v2.0a/CTA-861.3. Hi5-4K-Plus provides a simple monitoring connection from professional 4K devices using Quad 3G-SDI, Quad 1.5G-SDI, or Dual 3G-SDI outputs to new displays with HDMI 2.0 inputs, for cost-effective monitoring for 4:2:2/4:4:4 60p professional workflows.

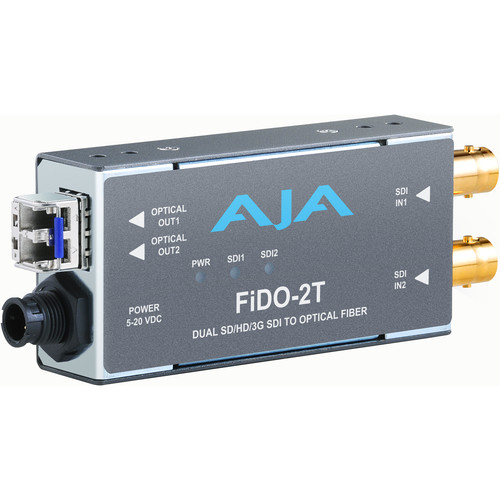

Dual channel LC Fiber to SDI converter
The FiDO-2T Dual Channel 3G-SDI To LC Fiber Converter from AJA enables SDI signals to be extended up to 6.2 miles (10 km) with electrical isolation, useful for eliminating ground loop problems. It uses a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks, and on-camera.
HD/SD-SDI to Analog Mini-Converter
The V2Analog HD/SD-SDI to Analog Mini-Converter from AJA provides SDI digital to component/composite analog conversion at either HD or SD resolutions. It is ideal for integrating analog equipment such as monitors and tape decks into digital workflows. It utilizes a full 10-bit data path to ensure a high-quality conversion. Its low power consumption and compact size, makes it suitable for use on set or in AV installations integrating different signal types.
The V2Analog supports NTSC, PAL, 720p at 50/59.94/60 Hz, 1080i at 50/59.94/60 Hz, and 1080psf at 23.98/24/25 Hz. The converter accepts incoming digital SDI signals and converts them to analog YPbPr (SMPTE, EBU-N10), Betacam, or RGB component outputs, and NTSC/PAL or S-Video composite outputs. It is important to note that the V2Analog does not up-convert or down-convert between SD and HD resolution. Only digital to analog signal conversion is performed, therefore an HD-SDI signal will be output as an HD analog signal and won’t be compatible with devices that only accept SD analog signals.
HD/SD-SDI 4 Channel Analog Audio Embedder/Disembedder
The AJA HD10AMA is a 4-channel analog audio embedder/disembedder that works with an SDI media signal. This device operates at a dual rate offering high-definition and standard-definition functionality; it has the ability to extract 4 balanced audio channels and output them on XLR connectors. The user also has the ability to select the embedding process, accepting balanced audio and embedding 4 channels with the SDI video signal.
DVI to SDI Mini-Converter
AJA’s ROI DVI to SDI Mini-Converter converts a DVI signal to an SDI output, enabling you to use computer signals in digital video workflows. A DVI loop through will allow you to monitor the input locally, and a reference input will let you genlock the SDI output. Both the DVI input and loop through support optional DVI-to-HDMI adapters, so you can convert HDMI to SDI and/or monitor your input on an HDMI display.
AJA HDP2 Mini Converter
HD-SDI/SDI to DVI-D and Audio Converter
The HDP2 is a miniature HD-SDI/SDI to DVI-D converter for digital display devices, such as LCD, DLP, and Plasma monitors or projectors. Using a very high quality scaling engine and de-interlacer, the HDP2 will automatically size 4:3 or 16:9 inputs to many DVI-D monitors. For appropriate monitor configurations, scaling is automatically 1 to 1-for example, displaying 1920x 1080 video on a WUXGA (1920×1200) monitor. The HDP2 will also automatically adapt the input frame rate for monitor compatibility. In addition, the HDP2 provides 2 channel audio monitoring and a looping output of the SDI input.
The HDP2 also supports HDMI v1.3a Deep Color (with a DVI to HDMI cable). In the HDMI mode, Deep Color is supported at 30 bits per pixel with 8 channel audio. USB connectivity allows for easy PC/Mac setup and field upgrades.
Rentex is happy to offer a hand-picked selection of AJA equipment to our cross-rental customers throughout the AV industry. As a trusted equipment provider to top production, staging, and live event companies we deeply understand the unique and demanding needs of the AV community. All our AJA rental equipment undergoes a rigorous quality control check after each rental, and arrives at your location supported by Rentex’s industry-leading service, ensuring your rental stays worry-free.
