Product Highlights
- A multi piece aluminum frame with twist lock connectors
- Optional legs are adjustable in 6" increments
- Available with front or rear surface
Overview

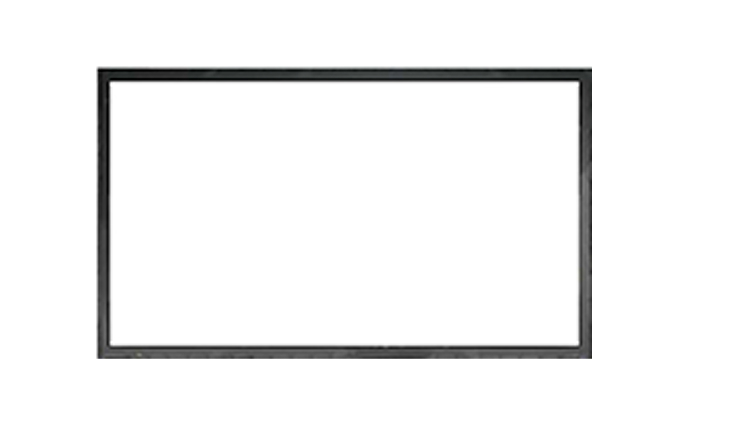

Variolock is a mobile projection screen with an aluminum modular frame. Each frame piece locks together with the twist of a dial. This size of Variolock screen package comes with a hard case, a choice of a front, rear surface and hanging brackets. A leg package is an optional add on.
Specifications
| Surface Dimensions | |
| Overall Area | 27′ 5″ x 15′ 8″ (836cm x 477cm) |
| Viewing Area | 26′ 9″ x 15′ 0″ (816cm x 457cm) |
| Border Width | 4″ (10cm) black border |
| Surface Information – Front Projection | |
| Name | FLEX WHITE CI |
| Gain | 0.96 |
| Viewing Angle | ±55° |
| Back Layer | 100% lightproof back layer |
| Surface Information – Rear Projection | |
| Name | FLEX REAR-CI |
| Gain | 0.89 |
| Viewing Angle | ±45° |
| Frame Information | |
| Type | Variolock 64 |
| Construction | Multipart 2.5″ x 1.25″ (64mm x 32mm) rectangle tube aluminum frame |
| Leg Information | |
| Leg Type | AT64 |
| Min Setup Height | 4″ (9cm) |
| Max Setup Height | 69″ (176cm) |
| Total Height | 218″ (554cm) |
| Adjustment | Adjustable in 6″ increments. Center leg not usable with rear; must be supported from center with hanging brackets if rear projecting |
| Dress Kit Information | |
| Fabric Type | 13 oz black IFR Velour |
| Skirt Length | 6′ |
| Valance Height | Add 12″ to Overall Height |
| Side Drapes | Add 61″ to Overall Width |
Technical Documentation
15′ x 26′9″ AV Stumpfl Vario Lock S64 Screen
16:9 Aspect Ratio
- Rentex No. VL1526SKIT
- Mfr No.
-
Available for same-day delivery in most major cities
-
Item is show-ready, double-tested for functionality
-
Accessories included, matched to the main unit
Recommended Products

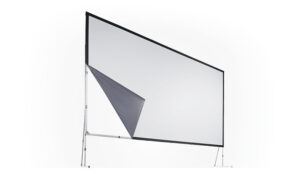

13′ 6″ x 24′ AV Stumpfl Monoblox Screen
