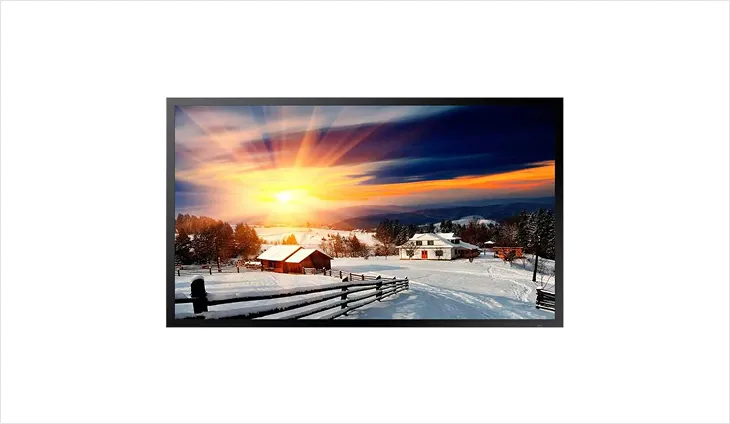

Samsung OH55F

55" HD Outdoor Display

Mouse roll-over to zoom image.

Product Highlights

2500 cd/m2 brightness rating and 5000:1 contrast ratio
Auto brightness sensor
Circular polarizing technology to eliminate display blindness caused by polarized sunglasses
Anti-reflection glass for improved visibility under direct sunlight
IP56 certification to withstand the elements

Rentex No. SAOH55F | Mfr No. OH55F

The OH55F 55″ Full HD Outdoor Signage Display from Samsung features an integrated power box that condenses operational components and accommodates a slim 85mm frame. It offers a maximum resolution of 1920 x 1080 and brightness rating of 2500 cd/m². The display comes with an embedded network hub and Wi-Fi functionality for improved connectivity.

LFD-OHFSERIES Mfr Spec Sheet

Samsung OH55F User Manual

Samsung OH55F Quick Setup Guide

Display

Screen Size (Diagonal)	55″
Resolution	1920 x 1080
Panel Type	VA LCD
Bit Depth / Color Support	8-Bit (16.7 Million Colors)
Brightness	2500 cd/m²
Viewing Angle (H x V)	178 x 178°
Screen Area	47.6 x 26.8″ / 121 x 68 cm
Contrast Ratio	5000:1
Dynamic Contrast Ratio	100,000:1
Response Time	6 ms
Horizontal Frequency	108 to 139.5 kHz
Vertical Frequency	96 to 123 Hz
Dot Pitch	0.63 x 0.63 mm
Pixel Clock Frequency	297 MHz

Connectivity

Input Ports	2 x HDMI 1.4 Audio, Video
Output Ports	1 x 1/8″ / 3.5 mm – Audio
USB Ports	1 x USB 2.0
Ethernet Ports	1

General

HDCP Support

Yes, Version 2.2

Surface

Haze Level

Audio

Processing

DTS

Hardware

Operating System	Tizen 2.4
Processor	1.3 GHz ARM Cortex A12 Quad-Core
Storage	8 GB
RAM	2.5 GB DDR3 1866 MHz

Convenience

Supported Video File Types	H.263, H.264/AVC, MPEG, MPEG2, MPEG4, VP8, VP9
Supported Audio File Types	AC3
Supported Photo File Types	JPEG, PNG

Electrical

Power Consumption	Maximum: 554.0 W Typical: 510.0 W Standby: 0.5 W
AC Input Power	100 to 240 VAC, 50 / 60 Hz

Environmental

Operating Temperature	-22 to 122°F / -30 to 50°C
Operating Humidity	10 to 80%

Physical

Material of Construction	5T Glass
Bezel Thickness	24.9 mm (Bottom) 24.9 mm (Right) 24.9 mm (Top) 24.9 mm (Left)
Duty Cycle	24 Hours / 7 Days
Dimensions	49.6 x 28.7 x 3.3″ / 1260.6 x 731.4 x 85.0 mm
Weight	116 lb / 52.6 kg
