Product Highlights

  • 300W LED Engine providing 19k lumens of light outputs
  • 7.5:1 zoom ratio providing 7 degrees to 53 degrees of zoom
  • Diablo S features a 7000k monochromatic LED engine calibrated for 7000k of white light
  • CMY color mixing system with progressive CTO
  • CRI of 70

Overview

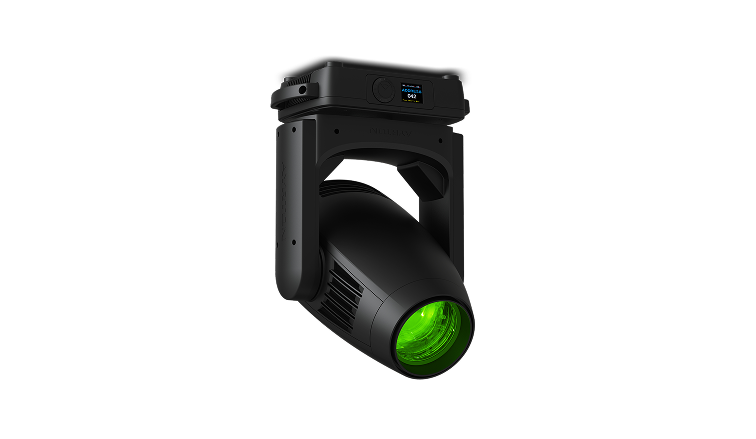

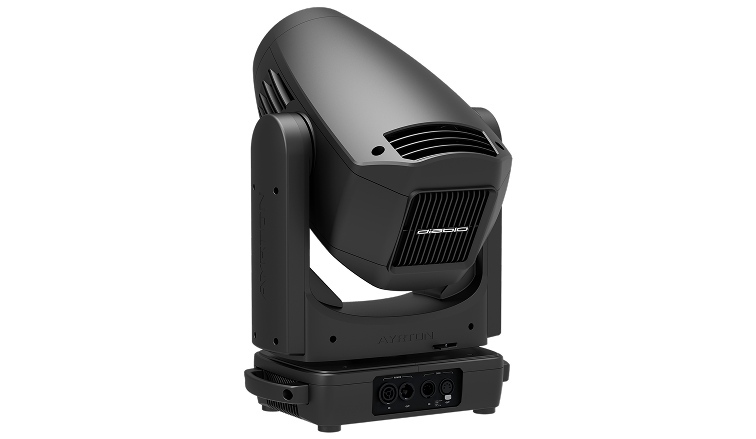

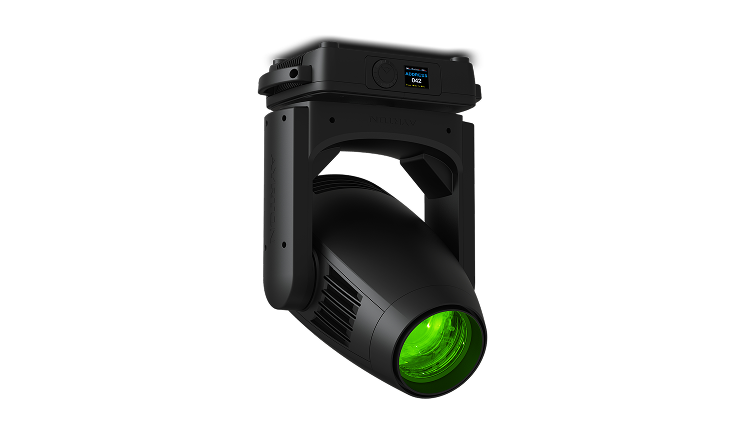

The Diablo Profile S packs a full framing system into Ayrton’s ultra-compact Mistral chassis, weighing in at 48.5 lbs with a 550 W maximum draw – easy on ballroom rigging points and house power alike. Its monochromatic LED engine delivers up to 19,000 lumens of white light calibrated at 7000 K, with flicker-free source management suitable for broadcast, IMAG, and any video-recorded event. The 4.7″ front lens and 13-element optics deliver a 7° to 53° zoom with an exceptionally flat, uniform field that holds up for gobo projection and image work at any beam angle. Its four shutter blades position across 100% of the beam in all fixture orientations, so shaping around screens, scenic, and presenters works regardless of where the unit hangs. CMY color mixing with progressive CTO and a seven-color wheel covers everything from corporate brand colors to saturated looks, while a seven-slot rotating glass gobo wheel, animation wheel, 15-blade iris, five-facet prism, and frost handle texture and aerial effects. A phase-change liquid cooling system with a dedicated silent ventilation mode keeps it quiet enough for conference rooms and studios, and wireless CRMX comes built in alongside standard DMX/RDM control.

Technical Documentation

Ayrton Diablo Profile S

300 W profile luminaire

  • Rentex No. DIABLOS
  • Mfr No. 011340
  • Available for same-day delivery in most major cities
  • Item is show-ready, double-tested for functionality
  • Accessories included, matched to the main unit
