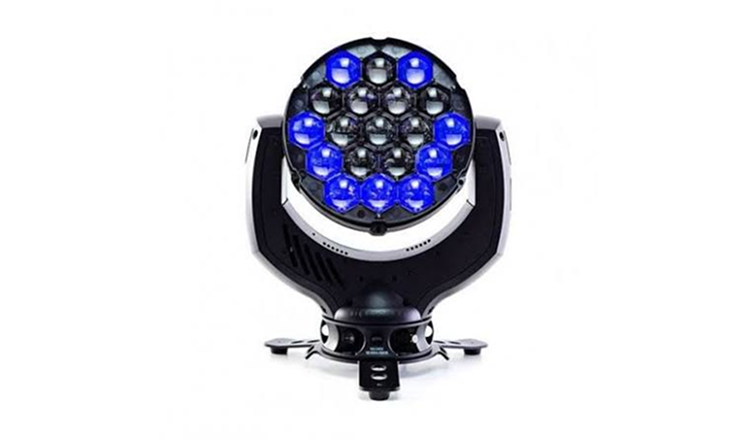

GLP (German Light Products) Impression X4
GLP (German Light Products) Impression X4 - Image 2
GLP (German Light Products) Impression X4 - Image 3
GLP (German Light Products) Impression X4 - Image 4

Product Highlights

  • 19 High Output RGBW LED’s
  • Single Homogenized Color Beam
  • Hard and Soft Edge Beam For Aerial Effects And Color Washes
  • 7 Deg. – 50 Deg. Zoom

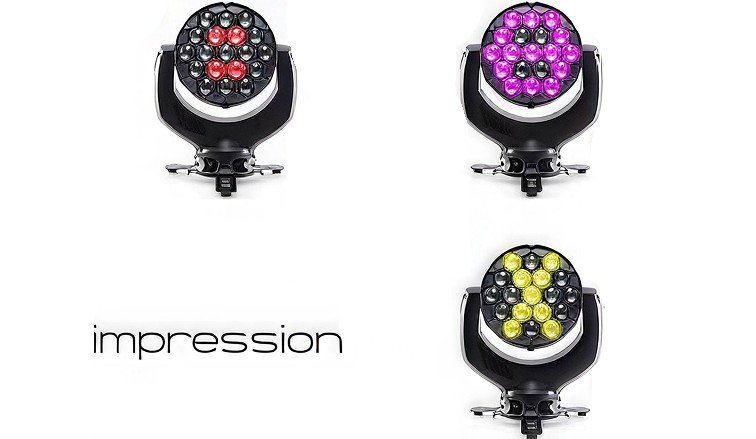

  • Customizable Pixel Patterns Across It’s Face

Overview

The impression X4 features 19 RGBW high output LED’s. The X4 features a slimline body, and signature GLP baseless design. Yet is able to produce a 7° to 50° zoom range, and full color mixing. As well as CTC customizable pixel patterns across its front face.

What's in the Case?

GLPIMPX4FS – Floor Stand SAFETYCABLE – Lighting Safety Cable Half Cheeseboro Black W/ M10 Bolt PCONED006 – Edison to PowerCon 6’

Specifications

Available Light Sources
  • 19 Osram high powered RGBW LEDs
  • 19 Osram high powered RGBY LEDs
  • 19 Osram high powered variable white LEDs
  • Average service life: 50,000 hours
Optical System
  • Motorized zoom system with 7° to 50° beam angle
  • Output: 5,085 lumens
Movement
  • 8 or 16 bit resolution selectable
  • Position feedback
  • Maximum speed: 660° pan in 2 secs., 260° tilt in 1 sec.
  • High precision 3 phase stepping motor control
Shutter / Dimmer
  • Continuous dimmer 0-100%
  • Variable strobe effect from 1 – 10 Hz.
  • Random strobe effect
  • Pulse effects
Control
  • DMX-512 protocol
  • Back lit graphic LCD menu with 4 illuminated buttons
  • Very quiet, temperature controlled ventilation
  • Over temperature protection
  • Color calibration feature
  • Internal color presets
  • Internal macro effects
Power Supply
  • Power consumption: 350 VA (Watt)
  • Power input: auto sensing 100-240 V AC, 50-60Hz
  • Fuse protection: micro fuse 5 mm x 20 mm, T 5A
Connectors
  • DMX: XLR 5 pin
  • Mains voltage: Neutrik Powercon
Operating Conditions
  • Maximum ambient temperature: 113°F  (45°C)
Mounting Options
  • Upright: floor stand (included) with brackets for ratchet strap
  • M10 socket for direct attachment of half coupler or other clamp
  • Optional omega bracket attachment
  • 2 attachment points for safety wire
Housing Colors
  • Standard colors are black, silver & white
Dimensions
  • (L x W x H): head vertical
    • 9.4″ x 13.4″ x 15.2″  (24.2 cm x 34 cm x 38.5 cm)
Net Weight
  • 16.5 lbs  (7.5 kg)

Technical Documentation

PDF GLP Impression X4 User Manual from Rentex

GLP (German Light Products) Impression X4

Moving Head Wash Light Fixture

  • Rentex No. GLPIMPX4
  • Mfr No. IMPRESSIONX4
  • Available for same-day delivery in most major cities
  • Item is show-ready, double-tested for functionality
  • Accessories included, matched to the main unit
