OBD 1510 E Ethernet to 1Gbit Fiber Bi-directional Transceiver Pair

Product Highlights

  • Bi-directional send and receive over a single fiber link
  • Supports standard Ethernet inputs up to 1Gb
  • Fiber connection speed always 1Gb
  • Closed loop WDM fiber system
  • Auto (10/100/1000) electrical port speed detection
Rentex No. FIB0200 | FIB0210 | Mfr No. O BD 1510 E

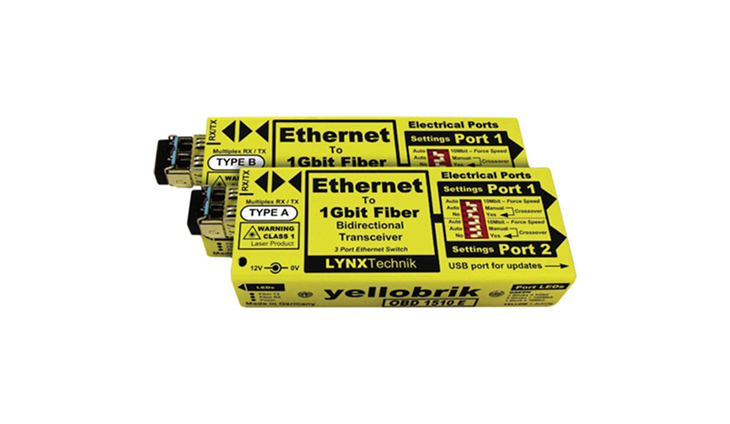

The yellobrik OBD 1510 E Ethernet to 1Gbit Fiber Bi-directional Transceiver Pair from Lynx Technik AG is a matched pair of compact Ethernet switches designed to extend the reach of electrical Ethernet signals over long distances. The two switches are linked via a single bi-directional fiber link, which operates at a constant 1Gb speed.

This pair of modules uses WDM fiber technology in a closed loop arrangement and essentially functions as an Ethernet extender solution. The fiber link supports distances up to 6.2 mi (10km) and provides a single, high-speed 1Gb error-free optical connection between the two locations.

Each OBD 1510 E module has two standard RJ-45 electrical Ethernet ports and the complete system functions as a 4-port Ethernet switch, providing two standard RJ-45 Ethernet ports at each location bridged with fiber. For legacy systems, each electrical Ethernet port can be set for automatic speed detection (10/100/1000 Mb/s) or forced to 10Mb. Each port uses auto crossover detection or can be forced manually if needed. These functions are available using the dip switch.

Auto (10/100/1000) electrical port speed detection
You can manually force 10Mb electrical speed
Auto or manual electrical crossover selection
There are no Technical Documents available at the moment.
Please call us at (800) 574-1702 for more information.
Ethernet 2 x Ethernet ports, RJ-45 Connectors
10 BaseT UTP category 3,4 or 5 cable up to 328ft/100m (2 pairs)
100 BaseT XUTP category 5 cable up to 328ft/100m (2 pairs)
1000 BaseT XUTP category 5 cable up to 328ft/100m (4 pairs)

Auto detect bit rate (10/100/1000 Mb/s), or force to 10 Mb for each port (selectable)
Automatic crossover detection or force manually for each port (selectable)
Port speed / activity LED indication (next to Ethernet port)

Fiber optic 1 x fiber optic I/O port (bidirectional)Simplex (single mode) using LC/PC connection

WDM using 1310 nm and 1550 nm wavelengths

Optical budget = 18 dB

Fiber TX active and RX active LEDs on side of module

Maximum distance 6.2 miles (10.0 km) singlemode

Power +12 VDC power supply (included)Supports external power input from 9 to 14 VDC

Power LED on side of module

Dimensions (L x W x H) Each Module: 4.72 x 1.65 x 8.66″ (12.00 x 4.20 x 22.00 cm)
Weight Each Module: 4.4 oz (125.0 g)
