Product Highlights
- Easy Install with Captive Fixings Fittings (M6 or M8)
- Compatible with Panasonic (LANG OEM) and Barco cages
- 650LBS / 295KG Safe Working Load
- Clamp Tube Diameter Ø38-51mm
- Compatible with truss from 8” to 14” ( 204mm to 355mm)
Overview

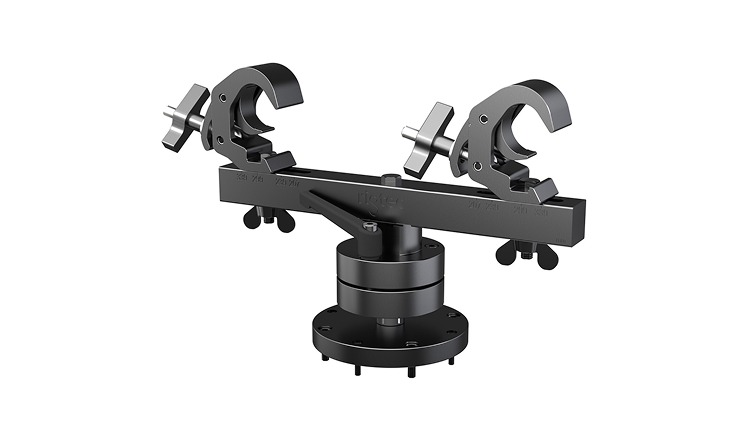

The Atom Grip Duo is a twin point, tilt & swivel flying adapter. It has been designed with heavier projectors in mind, like the Barco UDX series and can support enough weight for double stacked projectors. With a twin point hanging system, the Atom Grip Duo can take full advantage of the adjustments without the truss twisting, which can be an issue when rigging extremely heavy projectors at an angle with a single point attachment. Designed for hanging on box truss, the Atom Grip Duo features adjustable clamps which and can be located in several positions for use with different sizes of truss.
The Atom Grip Duo offers a simple solution for twin point projector hanging, with captive fixings it can be easily attached to a projector rental frame. Angled adjustments can be achieved via the ratchet handle, moving the handle to the right loosens the mechanism to allow 25° tilt and 360° rotation. Moving the handle back to the right locks the adjustments in position.
The Atom Grip Duo offers a simple solution for twin point projector hanging, with captive fixings it can be easily attached to a projector rental frame. Angled adjustments can be achieved via the ratchet handle, moving the handle to the right loosens the mechanism to allow 25° tilt and 360° rotation. Moving the handle back to the right locks the adjustments in position.
Specifications
| Specs | Value |
|---|---|
| Part Number | AGA01-D |
| Flying Weight | 14.77 lbs |
| Material | Aluminium |
| Adjustment | 25° tilt & 360° rotation |
| Truss Size | 204 mm and 355 mm (8 Inch – 14 Inch) |
| Tube Diameter | Ø38–51 mm |
| Bolt Size | 4 × M8 / 4 × M6 |
