Product Highlights

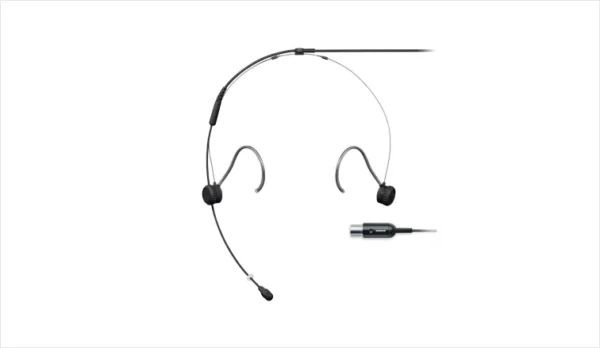

- Ultra light dual ear headset with a fully adjustable clutch boom.
- TwinPlex™ dual diaphragm capsule delivers natural, full range sound with best in class low self noise and wide dynamic range.
- Consistent omnidirectional pickup with improved off axis response—maintains tonal balance even with head movement.
- Sweat and moisture resistant.
Overview
Specifications
| Specs | Value |
|---|---|
| Microphone Element | Dual diaphragm condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 20 Hz – 20 kHz |
| Maximum SPL | 142 dB SPL at 1% THD (typical) |
| Dynamic Range | 117.5 dB (typical) |
| Headset & Cable | Dual ear, ultra-light frame; switchable sides; clutch system for rapid boom adjustment; 1.6 mm paintable cable, kink-resistant, dual redundant ground |
| Moisture Protection | Superhydrophobic nano coating; sweat and moisture resistant |
| Connectivity | TA4F (MTQG) termination |
| Use Cases | Theater, broadcast/on-camera talent, speech applications (presentations, lectures) |
