Product Highlights
- 1080p (1920 x 1080) Native Resolution
- 60 Hz Refresh Rate
- 450 cd/m² Brightness
- Digital Signage Capable
- Built-In SoC with 1 GHz CPU, 8GB Storage
Overview
Specifications
| Display | |
| Panel Technology | D-LED BLU |
| Screen Size | 55.0″ (139.7 cm) |
| Refresh Rate | 60 Hz |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Brightness | 450 cd/m2 |
| Contrast Ratio (Typical) | 5000:1 |
| Response Time (GtG) | 8 ms |
| Viewing Angle (H x V) | 178 x 178° |
| System on Chip | |
| Processor | 1 GHz quad-core |
| Storage | 8 GB |
| RAM | 1.5 GB |
| Supported File Formats | Photo: .jpg, .jpeg, .png, .bmp, .mpo Audio: .mp3, .m4a, .mpa, .aac, .3ga, .flac Video: .avi, .mkv, .asf, .wmv, .mp4, .3gp, .vro, .mpg, .mpeg, .ts, .tp, .trp, .mov, .flv, .vob, .svi, .m2ts, .mts, .divx, .webm |
| Connectivity | |

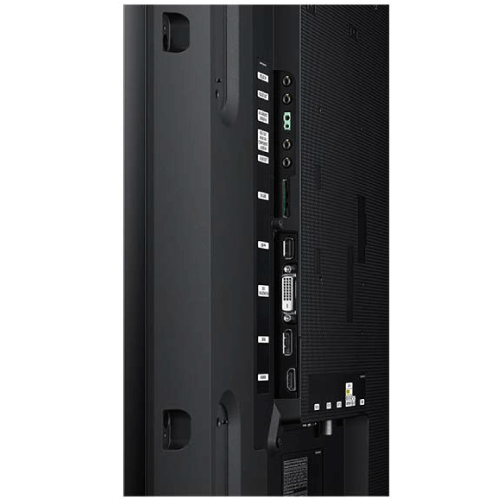

| Input | 1 x VGA (D-Sub 15-pin) 1 x DVI-D 1 x DisplayPort 1.2 1 x HDMI 1 x Component/Composite via ⅛” 1 x ⅛” audio 1 x USB 5V, 1.5A |
| Output | 1 x DisplayPort 1.2 loop out 1 x ⅛” audio |
| Other Connectors | 1 x SD card slot 1 x Antenna in 1 x RS232C in/out via ⅛” jack 1 x LAN |
| General | |
| Speakers | Yes, 2 x 10W |
| Power Requirements | 100 to 240 VAC, ±10%, 50/60 Hz |
| Power Consumption | Typical: 65 W Maximum: 176 W Standby: 0.5 W |
| Environmental | Operating Temperature: 32 to 104°F (0 to 40°C) Operating Humidity: 10 to 80% non-condensing |
| VESA Compatibility | 200 x 200 mm |
| Certifications | ENERGY STAR 6.0 RoHS EMC emission standard |
| Bezel Width | Top, Sides: 0.4″ (9.5 mm) Bottom: 0.6″ (15.0 mm) |
| Dimensions (WxHxD) | Without Stand: 48.4 x 27.8 x 2.0″ (122.9 x 70.6 x 5.1 cm) |
| Weight | 34.0 lbs (15.4 kg) |
Technical Documentation

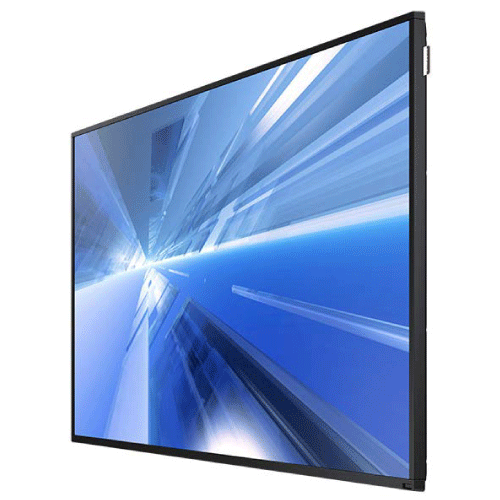

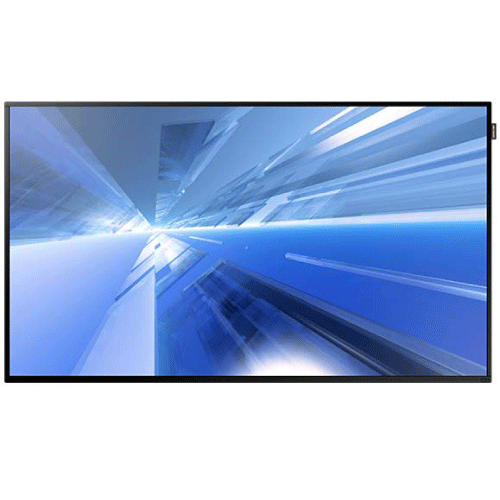

55″ Samsung DM55E
Direct-Lit LED Display
- Rentex No. SM55TSOLHE
- Mfr No. DM55E
-
Available for same-day delivery in most major cities
-
Item is show-ready, double-tested for functionality
-
Accessories included, matched to the main unit
