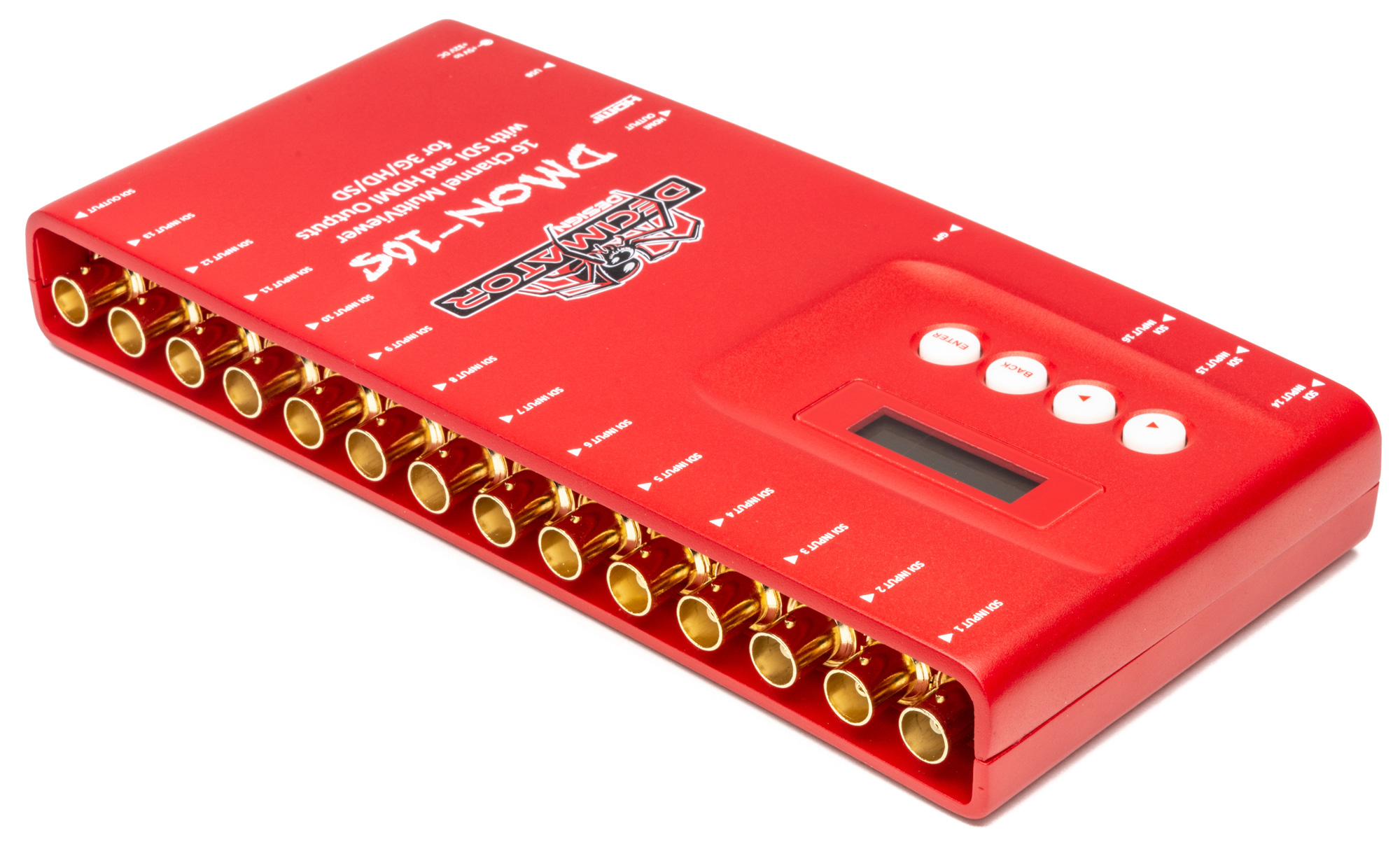

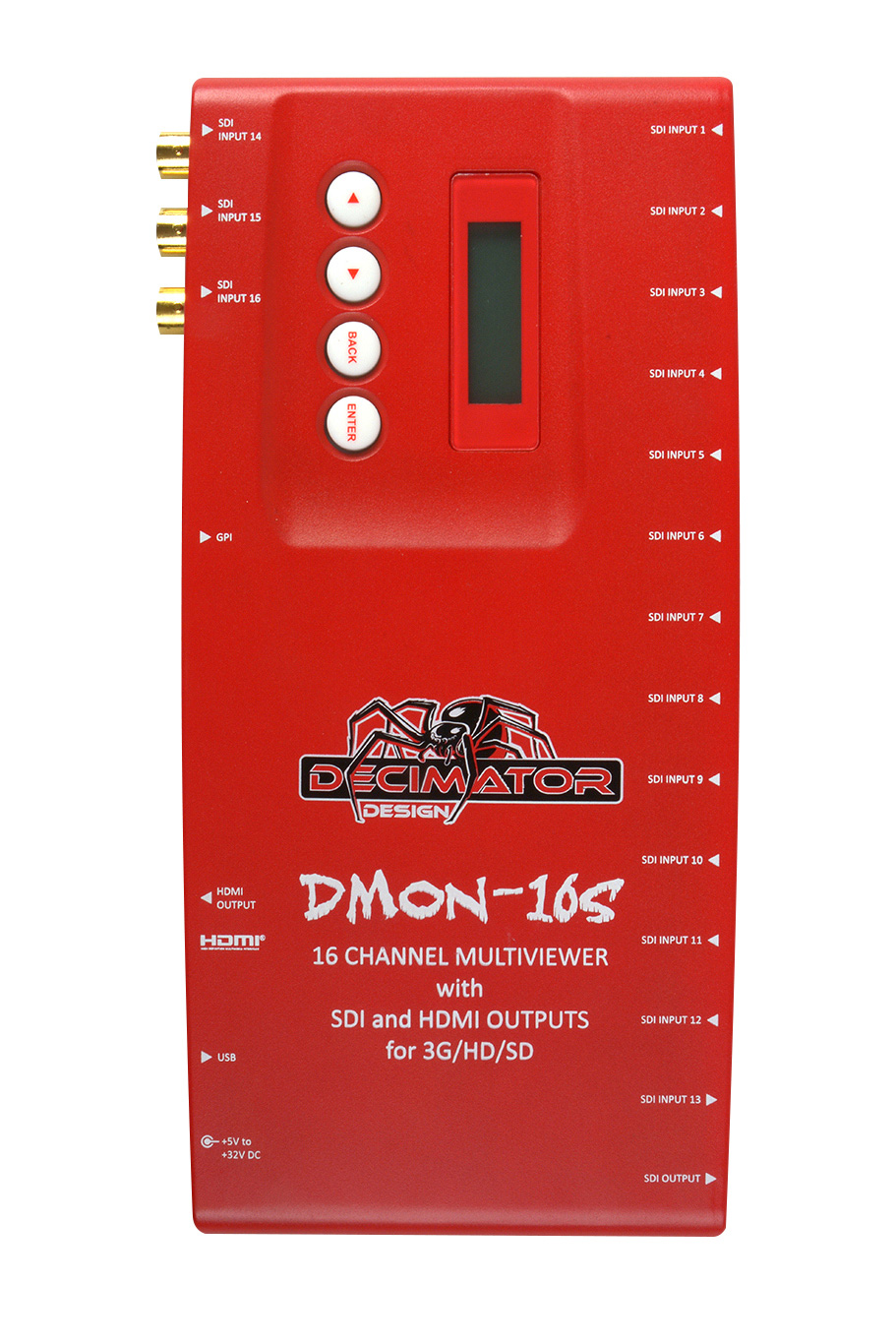

Decimator DMON-16S

16 Channel SDI Multiviewer with HDMI & SDI Outputs

Decimator

Product Highlights

  • 1-16 Channel Multi-Viewer
  • 16x 3G/HD/SD-SDI Inputs
  • 16-1 Channel Multiplexer
  • LCD Menu Access (No Need for Computer)
Add to My Quote
Rentex No. MVWDMON16S | Mfr No. DMON-16S

Featuring 16 independent 3G/HD/SD-SDI inputs, the DECIMATOR DMON-16S Multi-Viewer can be used either as a 1-to-16-channel multi-viewer or 16-to-1-input multiplexer supporting up to 1080p@60/59.94/50Hz on input and output. A miniature multi-viewer with front-panel LCD menu access, the DMON-16S is suitable for both on-location and studio applications, as you won’t need to use a computer or DIP switch to make selections and adjust settings.

SDI Input & Output Formats 3G (SMPTE 424M@2.97 Gbps and 2.967 Gbps):
1080p at 60/59.94/50 HzHD (SMPTE 292M/274M/296M@1.485 Gbps and 1.435 Gbps
1080p/psf at 30/29.97/25/24/23.98 Hz
1080i at 60/59.94/50 Hz
720p at 60/59.94/50/30/29.97/25/24/23.98 Hz

SD (SMPTE 259M@270 Mbps)
525i at 59.94 Hz
625i at 50 Hz
HDMI Output Formats 1080p at 60/59.94/50/30/29.97/25/24/23.98 Hz
1080i at 60/59.94/50 Hz
720p at 60/59.94/50/30/29.97/25 Hz
525i at 59.94 Hz
625i at 50 Hz
Inputs 16x 3G/HD/SD-SDI on BNC (embedded audio support)
Outputs 1x 3G/HD/SD-SDI on BNC
1x HDMI Type-A
LED Indicators Power, Signal Lock and Rate
Power 5 – 32 VDC, Pin Positive connector
Dimensions 8.7 x 4.1 x 1.2″ (22 x 10.4 x 3 cm)
