Product Highlights

3 mm CORE
One-size-fits-all, headset fits securely and comfortably
Unique, comfortable 3-point gripping system above, below and behind the ear
2-way adjustable, non-reflective boom with locking system

Overview

3 mm CORE capsule delivering full‑size DPA sound quality with exceptional clarity and consistency. Ultra‑low profile headset frame engineered for comfort, stability, and near‑invisible on‑camera appearance. MicroLock connector system providing secure, reliable cable attachment for high‑movement environments. High durability construction designed to withstand professional use while maintaining performance over time. Omnidirectional pickup pattern capturing natural, consistent voice tone regardless of head movement.

What's in the Case?

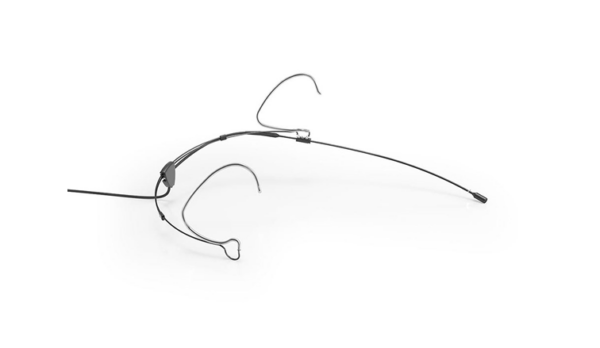

DPA 6066 Omnidirectional Headset Mic, Black
Soft Bag
DUA9531 Subminiature Foam Windscreen

Specifications

Specs	Spec Value
Directional pattern	Omnidirectional
Principle of operation	Pressure
Cartridge type	Pre-polarized condenser
Effective frequency range ±2 dB	40 Hz – 20 kHz with 4 dB soft boost at 8 – 20 kHz
Sensitivity, nominal, ±2.4 dB at 1 kHz	6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted	Typ. 26 dB(A) re. 20 μPa (max. 28 dB(A))
Distortion, THD < 0.5%	122 dB SPL RMS, 125 dB SPL peak
Distortion, THD < 1%	125 dB SPL RMS, 128 dB SPL peak
Frequency response	20 Hz – 20 kHz
Dynamic range	Typ. 102 dB
Max. SPL, THD 10%	144 dB SPL peak
Rated output impedance	From MicroLock: 30 – 40 Ω. From DAD9001-BC: 100 Ω
Cable drive capability	Up to 300 m (984 ft) with DAD9001-BC XLR adapter
Power supply (for full performance)	For wireless systems Min. 5 V – max. 10 V through DPA adapter With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
Current consumption	Typ. 1.5 mA (microphone). 3.5 mA with DAD9001-BC XLR Adapter
Connector	MicroLock, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
Weight	11 g (0.40 oz) incl. Cable and MicroLock connector
Microphone head size (h x w x d)	3.4 / 8.9 mm (0.13 / 0.35 in)
Capsule diameter	3 mm (0.12 in)
Cable length	1.3 m (4.3 ft)
