Epson ELPLX01S

0.35:1 Ultra Short-Throw Lens


Product Highlights

  • Compatible with: Epson Pro L1060WNL, EB-PU1006W, EB-PU1007B, EB-PU1007W, EB-PU1008B, EB-PU1008W, Pro L1060W, Pro L1070W, Pro L1070WNL
  • Flexible installation — .35 throw ratio, wide lens shift and zero offset for enhanced convenience
  • Perfect for space-constrained environments — ideal for narrow spaces and rear-projection applications; unique zero offset design maximizes display size in areas with low ceilings
  • Large screen size — project 100″ to 300″
  • WUXGA/WXGA throw ratio — .35 Lens Shift: Vertical: +50% to +67% (H Center) Horizontal: -10% to +10% (Vertical +50%)
Rentex No. ELPLX01S | Mfr No. ELPLX01S

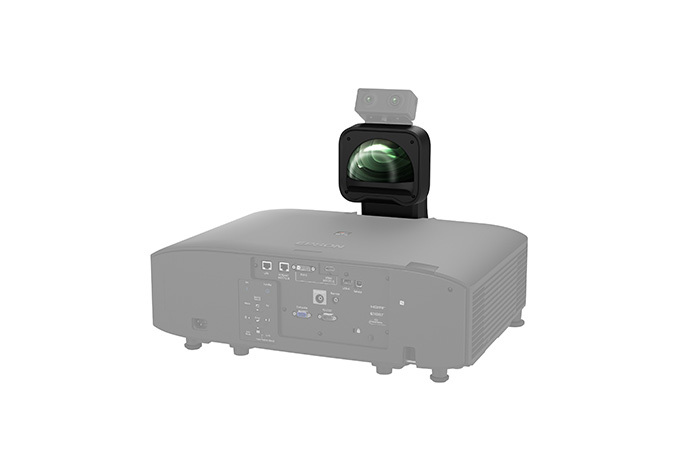

Project supersized images at a short distance with the ELPLX01S ultra short-throw lens. Designed for use with Epson Pro Series projectors up to 8,500 lumens, this convenient lens makes it easy to display bright, larger-than-life images up to 300″ in narrow or space-constrained environments. Featuring a .35 throw ratio, wide lens shift and unique zero offset design, the ELPLX01S offers incredible flexibility to accommodate a variety of projection installations, including low-ceiling, rear-projection and stealth applications. And, with an integrated mount point for Epson’s optional ELPEC01 external camera, you can access powerful automated tools to simplify and speed up setup, such as auto color calibration, screen matching of multiple projectors, tiling assist for edge blends, a stacking assist function and more.

Type Powered: focus/distortion
F-Number 1.9
Focal Length 5.8 mm
Connector 24-Pin
Screen Size (Projected Distance)
100″ to 300″
Throw ratio 0.35
Lens Shift Range Vertical: +50% to +67% (H Center) (Powered)
Horizontal: -10% to +10% (Vertical+50%) (Powered)
Operating Temperature 32 ˚ to 113 ˚F (0 ˚ to 45 ˚C)
Dimensions (W x D x H)
Ultra Short-Throw Lens 8.74″ x 12.64″ x 6.46″
Weight 7.7 lb
