Product Highlights

50.4-98mm Focal Distance
f/2.5 Aperture
EEPROM and Stepping Motor
Compatible with the Panasonic PT-RQ35K2, PT-RZ34K2, PT-RQ35KU, PT-RZ34K, PT-RQ32K, PT-RZ31KU, PT-RS30K, PT-RQ25K, PT-RZ24K, PT-RQ18KU, PT-RZ17K, PT-RZ14K, PT-RQ22KU, PT-RZ21K, PT-RS20K, PT-RZ16K projectors

Overview

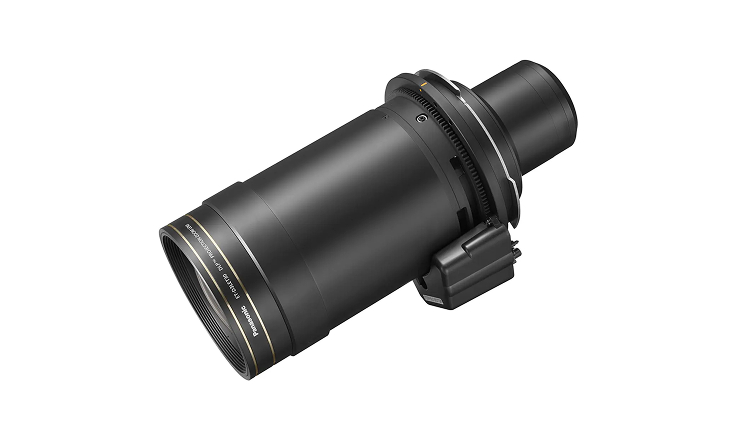

Designed for use with select 3-chip DLP projectors, the 50.4-98mm Zoom Lens from Panasonic enables you to vary the projection distance by adjusting the focal distance. The zoom lens is equipped with an EEPROM (electronically erasable programmable read-only memory) and a stepping motor. Included with the lens is a protective lens cover.

Compatible with the following Panasonic projectors:

PT-RQ35K2
PT-RZ34K2
PT-RQ35KU
PT-RZ34K
PT-RQ32K
PT-RZ31KU
PT-RS30K
PT-RQ25K
PT-RZ24K
PT-RQ18KU
PT-RZ17K
PT-RZ14K
PT-RQ22KU
PT-RZ21K
PT-RS20K
PT-RZ16K

Specifications

Lens type	Zoom lens
F-number	2.5
Focal length (f)	50.4-98.0 mm
Throw ratio WUXGA	2.40-4.66:1(RQ35K2/RQ35K/RZ34K2/RZ34K/RQ25K/RZ24K/RQ18K/RZ17K/RZ16K) 2.88-5.61:1(RQ25K/RZ24K/RQ18K/RZ17K/RZ14K)
Dimensions (WxHxD)	154 × 154 × 322 mm (6-1/16 × 6-1/16 × 12-11/16″)
Weight [kg]	Approx 5.8 kg (12.8 lbs)
