The evolution of 3-Chip DLP™ SOLID SHINE Laser culminates in the PT-RZ31K Series, a flagship forged by end-user experience with 31,000-lumen (Center/High Mode)*1 of brightness for
rental/staging events. Convenient on-site rigging and dust-resistant optics push service-free projection beyond 20,000 hours*2 in Normal Mode for permanent installations. In every detail, these flagships make elite performance last longer.

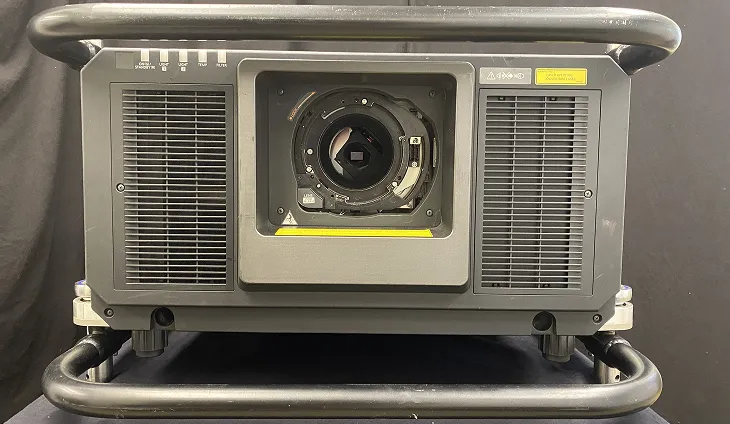

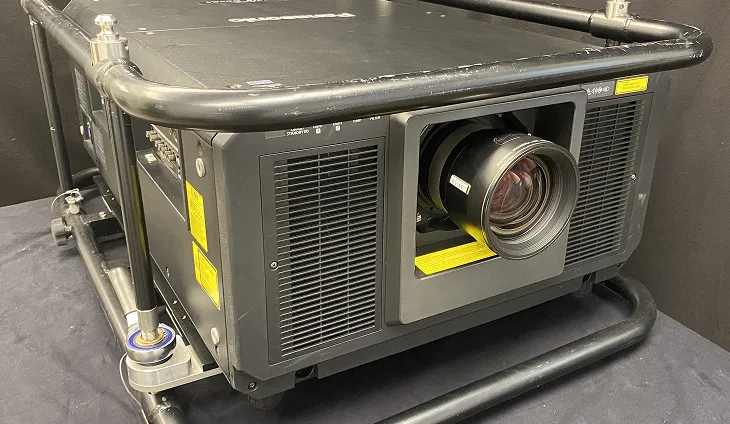

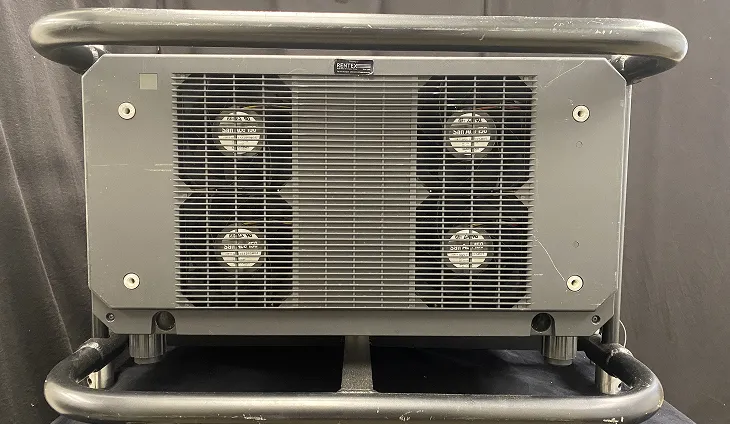

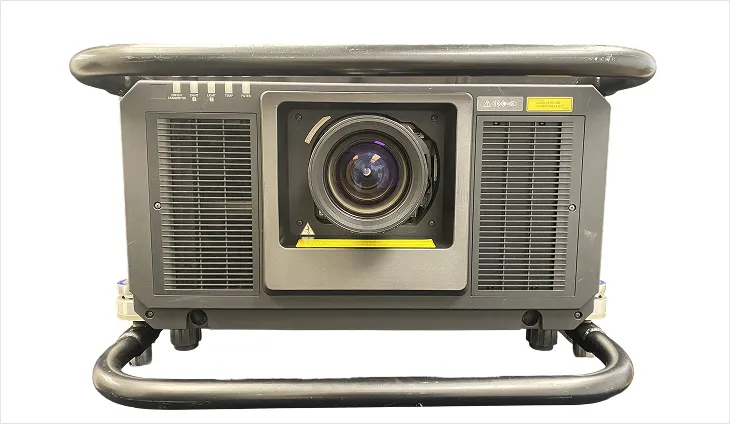

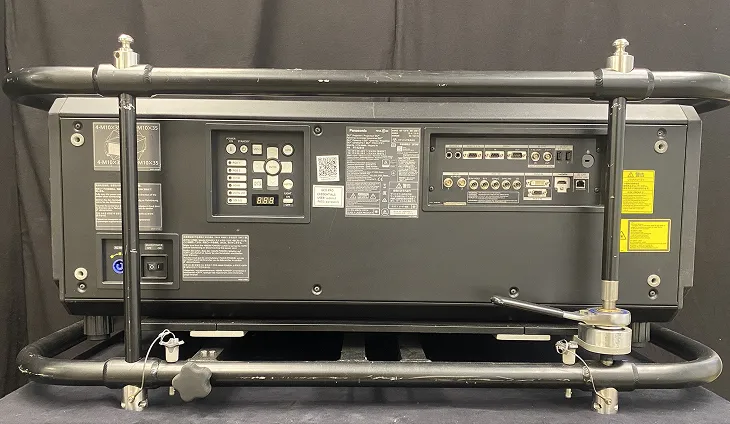

• (1) PANASONIC PT-RZ31K DLP Laser w/ Cage

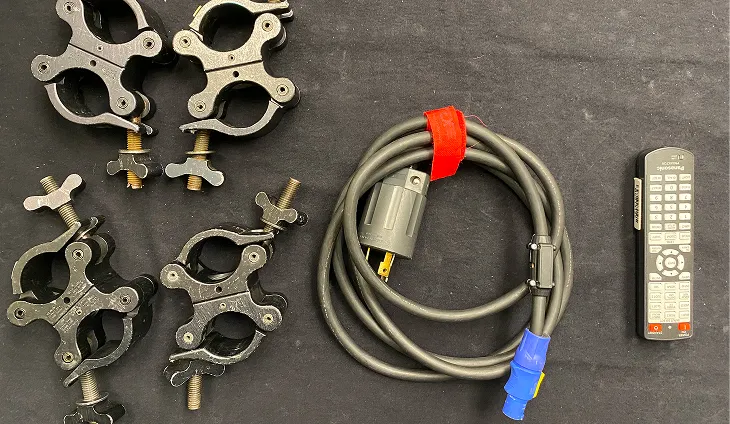

• (1) Panasonic Projector Remote 3 Chip
• (1) Projector USB Manual
• (1) L630P to Powercon
• (4) MLSB-SW Swivel Coupler with Steel Wingnut, Black A

Power Supply: AC 200-240 V, 50/60 Hz

Power Consumption: 2,870 W

Display Method: DLP chip x 3, DLP projection system

Refresh Rate: 120 Hz

Light Source: 18,000 hours (High Mode), 20,000 hours (Normal Mode), 43,800 hours (Long Life 1 Mode), 61,320 hours (Long Life 2 Mode), 87,600 hours (Long Life 3 Mode)

With Supplied Filter: 4,000 hours (Normal Mode), 2,000 hours (High Mode), 20,000 hours (Long Life 1/2/3 Mode)

With Long Life Filter: 20,000 hours (Normal Mode), 4,000 hours (High Mode), 40,000 hours (Long life 1/2/3 Mode)

Brightness: 31,000 lm (center)

Contrast: 20,000:1

Screen Size (diagonal): 1.78-25.4 m with 16:10 aspect ratio, 1.78-15.24 m with the ET-D57E8, 3.05-15.24 m with the ET-D57LE95

Supported RGH Signal: XGA-WUXGA

Keystone Correction Range: Vertical: ±40°, Horizontal: ±15°

Dimensions (WxHxD): 700 x 418 x 1,250 mm (including protruding parts), 700 x 373 x 1,070 mm (excluding protruding parts)

Weight: 79 kg (174.2 lbs.) without cage, 116.09 kg (256 lbs.) with cage

Operation Noise: 49 dB

Operating Temperature: 32-122 °F (altitude: up to 4,593 feet)

Operating Humidity: 10-80% (no condensation)

Applicable Software: Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro
