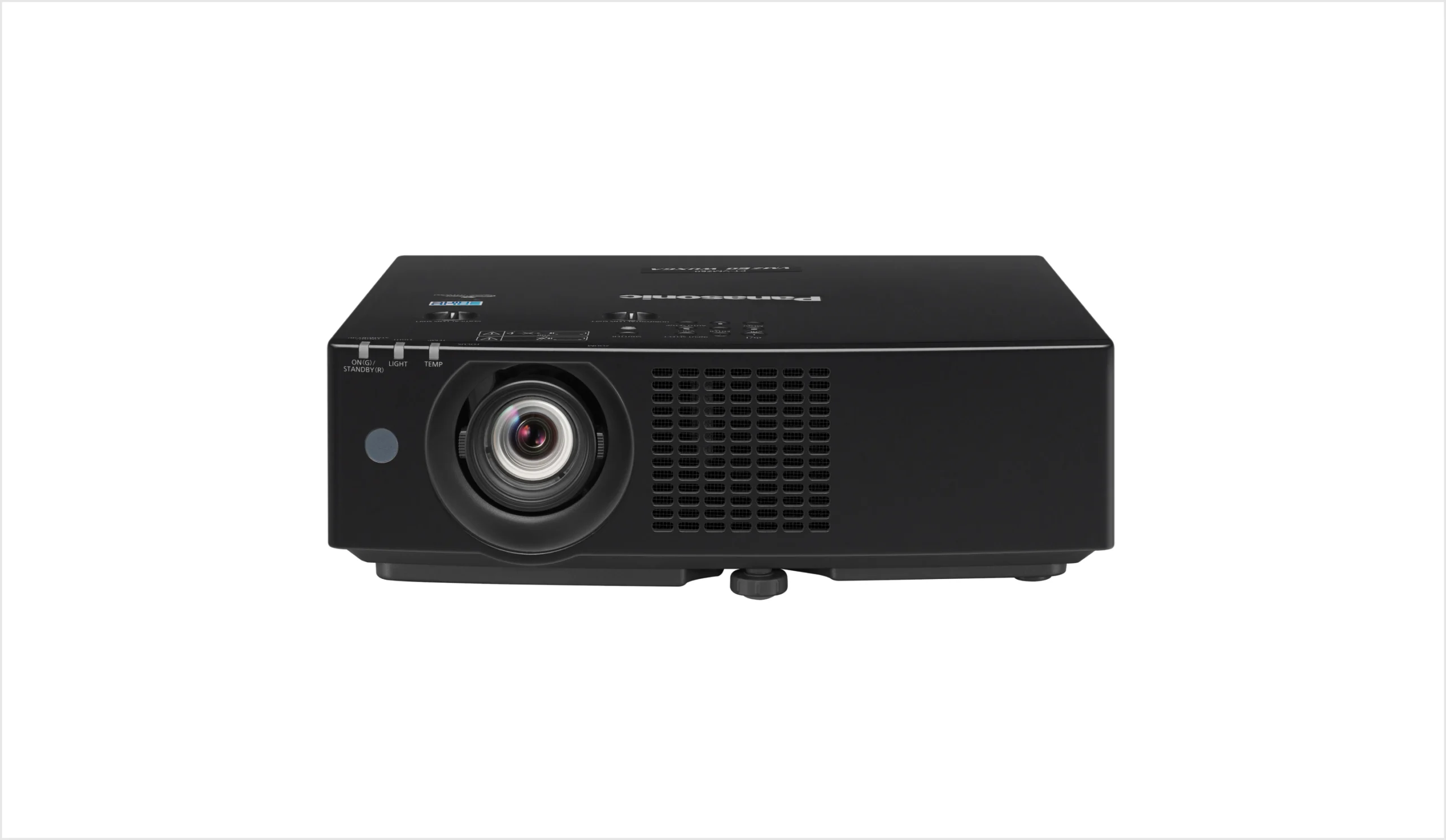

Panasonic PT-VMZ60B
6,000 Lumens 3LCD Portable Laser Projector
Product Highlights
- 3LCD
- 1920 x 1200 resolution (WUXGA 16:10 aspect ratio)
- 1.09 to 1.77:1 Throw Ratio
- 4k 30P compatible (HDMI only)
- Lots of power in a small form factor (under 16 pounds)
Rentex No. VMZ60
|
Mfr No. PT-VMZ60B
The Panasonic PT-VMZ60B is a 6,000 lm, WUXGA, portable LCD laser projector. This projector supports 4K and 30p signal input, making this projector a future-proofed solution to projecting the latest image quality and content.
| Resolution | 1920 x 1200 pixels |
| Technology | Laser LCD |
| Light output*1 | 6,000 lumens |
| LCD panel | Panel size (inch) | 0.64 inch diagonal (16:10 aspect ratio) |
| LCD panel | Display method | Transparent LCD panel (x 3, R/G/B) |
| LCD panel | Drive method | Active matrix |
| LCD panel | Pixels | 2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels |
| LENS | 1.6 x Manual zoom (throw ratio 1.09-1.77 :1), F = 1.60-2.12, f = 15.30-24.64 mm |
| Light source | Laser diode |
| Screen size (diagonal) (inch) | 30-300 in, 16:10 aspect ratio |
| Center-to-corner uniformity*1 | 85 % |
| Contrast*1 | 3,000,000:1 (all white/all black) (Input signals:PC,LIGHT POWER:NORMAL,PICTURE MODE:DYNAMIC,DAYLIGHT WIEW:OFF,DYNAMIC CONTRAST:1,AUTO POWER SAVE:OFF) |
| Optical axis shift | Vertical (from center of screen) | 0 % – +44 % (Manual) |
| Optical axis shift | Horizontal (from center of screen) | – 20% – +20% (Manual) |
| Keystone correction range*2 | Vertical: ±25°, Horizontal: ±35° |
| Terminals | HDMI 1/2 IN | HDMI 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p signal input) |
| Terminals | COMPUTER 1 IN | D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| Terminals | COMPUTER 2 IN / MONITOR OUT | D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) (input/output switching) |
| Terminals | VIDEO IN | Pin jack x 1 |
| Terminals | AUDIO 1/2 IN | M3 stereo mini-jack x 2 |
| Terminals | AUDIO 3 IN | Pin jack (L/R) x 1 |
| Terminals | VARIABLE AUDIO OUT | M3 stereo mini-jack x 1 |
| Terminals | SERIAL IN | D-sub 9-pin x 1 for computer control (RS-232C compliant) |
| Terminals | LAN | RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ (Class 2) |
| Terminals | DIGITAL LINK/LAN | RJ-45 x 1 for network and DIGITAL LINK connection, HDBase-T™ compliant, 100Base-TX, compatible with PJLink™ (Class 2), HDCP, Deep Color, 4K/30p signal input |
| Terminals | USB CONNECTOR | USB connector (Type A) x 1 for Memory Viewer function, power supply (DC5V, maximum 2A*3), optional wireless module AJ-WM50 |
| Power supply | AC 100-240 V AC, 50/60 Hz |
| Power consumption | TBD |
| Built-in Speaker | 10 W (monaural) |
| Operating noise*1 | NORMAL: 38dB, QUIET: 27dB |
| Cabinet materials | Molded plastic |
| Filter | Included Filter cleaning cycle: 20,000 hours (0.08 mg/m3 of particulate matter), 10,000 hours (0.15 mg/m3 of particulate matter) |
| Dimensions (W x H x D) (inch) | 15 23/32 x 4 17/32 x 13 11/16 inch (Not including protruding parts)15 23/32 x 5 1/4 x 13 11/16 inch (With feet at shortest position) |
| Weight (lbs.)*4 | Less than 15.87 lbs. |
| Operating environment (°F/Feet) | Operating temperature: 32 °F -113 °F, operating humidity: 20 %-80 % (no condensation) |
-
