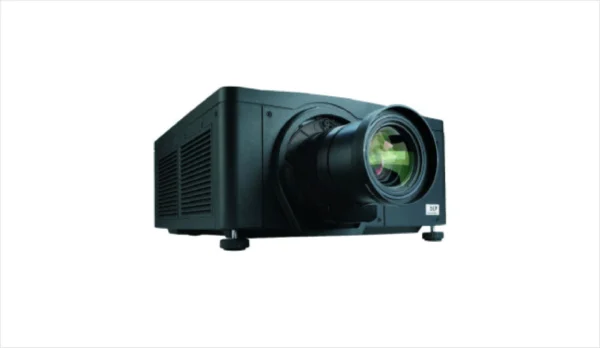

Christie Roadster HD14K-M

13,500 Lumens DLP Projector

Mouse roll-over to zoom image.

Product Highlights

Cage Included with Rental
HD (1920×1080)
55.0 lbs | 22.1 x 19.7 x 10.2″ (LxWxH)
Dual Lamp System
Full Suite of Lens Options. See Below.

Rentex No. 14KM | Mfr No. 118-029102-XX

The Christie Roadster HD14K-M is a flexible, efficient, 1080 HD, 3DLP digital projector designed with your staging needs in mind. This projector gives you a full set of options and now longer lamp life.

The Christie^® M Series projector platform provides the high-performance and feature-rich standards expected in all Christie products. The most compact in its class, this projector platform has embedded warping, blending and color matching capabilities that give you even more installation flexibility. The Roadster HD14K-M also ships equipped with more input cards than the other M Series models, and a stacking frame.

The Christie Roadster HD14K-M, offers high efficiency and low cost of ownership. It draws a maximum power of 1500W (at 110V), giving you full brightness with two lamps instead of four.

Christie Roadster HD14K-M Spec Sheet from Rentex

Christie-M-Series-Brochure

Christie-M-Series-User Manual

Christie-M-Series-Setup Guide

Christie Roadster HD-14K Cad Drawing

(1) Christie Roadster HD14K-M
(1) Christie Projector Remote M2 (Black)
(1) Projector USB Manual
(1) 14 AWG 5-15P to RED C13 Power
(1) L630P to C13
(4) MLSB-SW Swivel Coupler with Steel Wingnut, Black A

Image	Dual lamp: 13,500 center (12,000 ANSI, 13,500 ISO) lumens Single lamp: 6,750 center (6,000 ANSI, 6,750 ISO) lumens
Contrast	2,500:1 (full on, full off) 650:1 ANSI (typical)
Uniformity	90% brightness uniformity
Display type	0.95″ 3DLP
Resolution	HD (1920 x 1080)
Lamp type	Dual 450W NSH
Lamp life	High power: 1,750 hrs @ 450W Low power: 2,000 hrs @ 360W
Standard inputs	Twin DisplayPort input card Dual-link DVI 3G SD/HD-SDI Video decoder
Optional inputs	Analog (5 BNC) Dual-link DVI Dual 3G SD/HD-SDI Video decoder Twin HDMI
Input signals	HDTV formats VGA through to QXGA (2048 x 1536) Accepts all current HDTV/DTV formats Multistandard video decoder Horizontal and vertical scaling, all inputs
Pixel clock	165 MHz
Scan rates	Horizontal: 15 to 120 kHz Vertical: 23.97 to 150 Hz
Inputs, controls and networking	RS232 in/out RS422 in Ethernet (10/100) USB device GPIO (RS232 9-pin male connector) Built-in backlit LCD keypad Remote control (with optional wired XLR connection)
Optical system	Dust-sealed, 3-chip, DMD light engine Motorized horizontal and vertical lens offset Scheimpflug (tilt) adjustment Built-in light shutter Tool-free lens insertion system
Fixed lenses	ILS lens 0.73:1 SX+/0.67:1 HD* ILS lens 1.2:1 SX+/1.1:1HD
Zoom lenses	ILS lens 1.25-1.6:1 SX+/1.16-1.49:1 HD** ILS lens 1.5-2.0:1 SX+/1.4-1.8:1 HD ILS lens 2.0-2.8:1 SX+/1.8-2.6:1 HD ILS lens 2.8-4.5:1 SX+/2.6-4.1:1 HD ILS lens 4.5-7.3:1 SX+/4.1-6.9:1 HD ILS lens 7.5-11.2:1 SX+/6.9-10.4:1 HD
Offsets	+/- 120% Vertical +/- 42% Horizontal (* ±35%V / ±12%H) (** ±102%V / ±40%H)
Standard accessories	Stacking frame IR remote Line cord
Enhanced feature sets	LiteLOC™ Comprehensive Color Adjustment (CCA™) Embedded Christie Twist image warping and edge-blending Intelligent Lens System (ILS) for zoom, focus, horizontal and vertical offset for all lenses Auto setup Digital keystone correction Menus in five languages 99 channel memories Multiwindowing and processing (up to a 3 x 3 array) Black-level blending 24/7 operation
Operating voltage	110-240 VAC 50/60 Hz
Operating current	15A @ 100V AC
Power	1500W
Dissipation	5118 BTU/hr
Dimensions (with cage)	745.3 x 714.6 x 509mm (29.34 x 28.13 x 20.04 in)

Weight	24.94 kg (55 lbs.) without cage, 51.29 kg (113 lbs.) with cage
Operating environment	Temp: 40 to 104° F (5 to 40° C) Humidity: 20-80% non-condensing
