Product Highlights
- Bright and Vivid Picture Quality
- Cage Included (ET-PFD565)
- Compatible with D75LE and D3LE lenses
- 2560×1600 native resolution – 5120×3200 with Quad Pixel Drive ON
- Dynamic Contrast Function for High 20,000:1 Contrast
Overview
Compact and filterless, 20,000 lumen, 4K+ Solid Shine Laser Projector provides stunning image quality in a compact body designed for large venues. Subrent it today!
Compatible with the following lenses:
Compatible with the following lenses:
- Panasonic Zoom Lens 7.3-13.8 HD
- Panasonic Zoom Lens 0.9-1.1
- Panasonic Zoom Lens 4.6-7.4 (16:10 aspect ratio)
- Panasonic Zoom Lens 2.4-4.7
- Panasonic Zoom Lens 1.7-2.4 (16:10 aspect ratio)
- Panasonic Zoom Lens 1.3-1.7
- Panasonic ET-D3LEW300 Short-Throw 0.77-11.12 Lens
- Panasonic ET-D3LEW201 lens
- Panasonic Ultra Short Throw Lens 0.37 HD
- Panasonic Ultra Short Throw Lens 0.36 HD
- Panasonic ET-D3LEU101 lens
- Panasonic ET-D3LET40 4.6-7.3 lens
- Panasonic ET-D3LET80 7.3-13.8 lens
- Panasonic ET-D3LEW10 1.3-1.7 lens
- Panasonic ET-D3LEW200 0.69-0.91 lens
- Panasonic ET-D3LEW50 0.7HD lens
- Panasonic ET-D3LEW60 0.9-1.1 lens
- Panasonic ET-DLE035 0.38 HD lens
What's in the Case?
- (1) Panasonic PT-RQ22K W/CAGE
- (1) Panasonic RQ HDMI Input Card
- (1) Panasonic RQ 12G Input Card
- (4) Versa Clamp for Panasonic Projectors
- (1) Panasonic Projector Remote 3 Chip
- (1) Projector USB Manual
- (1) L630P to C19 Power
- (1) 5-15P to C19 Power
Specifications
| Specs | Value |
|---|---|
| Projection System | |
| Projector Type | 3-Chip DLP™ projector |
| Panel Size | 22.9 mm (0.9″) diagonal (16:10) |
| Display Method | DLP™ chip x3 |
| Pixels |
4,096,000 (2560 × 1600) ×3 49,152,000 (Quad Pixel Drive ON) |
| Refresh Rate | 240 Hz |
| Image & Light | |
| Light Source | Laser diode |
| Brightness | 20,000 lm / 21,000 lm (center) |
| Light Source Life | 20,000 h (Normal), 24,000 h (Eco) |
| Resolution | 5120 × 3200 (Quad Pixel Drive) |
| Contrast | 20,000:1 |
| Uniformity | 90% |
| Projection | |
| Screen Size |
1.78–25.4 m (70–1000″) 1.78–15.24 m (ET-D75LE8 / ET-D3LET80) 3.05–15.24 m (ET-D75LE95) |
| Lens Shift |
Vertical: ±59% (varies by lens) Horizontal: ±29% (varies by lens) |
| Keystone Correction |
Vertical: ±40° Horizontal: ±15° Up to ±45° / ±40° with ET-UK20 kit |
| Connectivity | |
| SDI Inputs | 4× BNC (3G/HD/SD-SDI, dual/quad link supported) |
| Sync | Multi-projector sync IN/OUT (BNC) |
| Control |
RS-232C IN/OUT Remote IN/OUT Parallel control |
| Network |
DIGITAL LINK (HDBaseT) LAN (PJLink Class 2, Art-Net, HDCP 2.2) |
| Expansion | SLOT NX x2 (interface boards) |
| Power Output | USB Type-A x2 (5V, total 2A) |
| Power | |
| Power Supply | AC 200–240 V, 50/60 Hz (reduced output on 100–120 V) |
| Power Consumption | 1,650 W (0.3 W Eco standby / 4 W Normal standby) |
| Physical | |
| Dimensions |
600 × 307 × 745 mm (with protrusions) 598 × 270 × 725 mm (without protrusions) |
| Weight | 55 kg (122 lbs.) without cage, 74 kg (164 lbs.) with cage |
| Cabinet | Molded plastic |
| Operating Environment | |
| Temperature | 32–113 °F |
| Humidity | 10–80% (no condensation) |
| Noise | 46 dB |

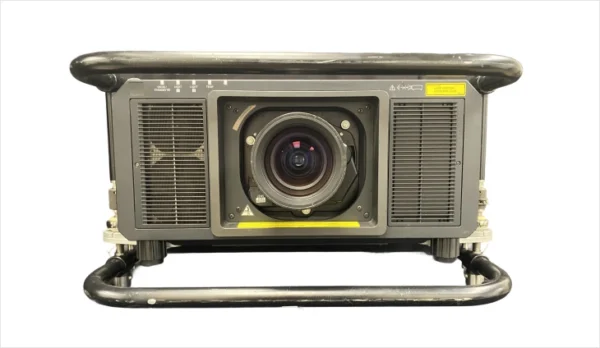

Panasonic PT-RQ22KU projector
Laser 3-chip DLP, 21,000 center lumens, 4K+
- Rentex No. RQ22KU
- Mfr No. PT-RQ22K
-
Available for same-day delivery in most major cities
-
Item is show-ready, double-tested for functionality
-
Accessories included, matched to the main unit
