Product Highlights
- Built-in Quad-core Media Player with 8GB storage.
- Built-in WiFi Hotspot, easily connect to PC or smart phone

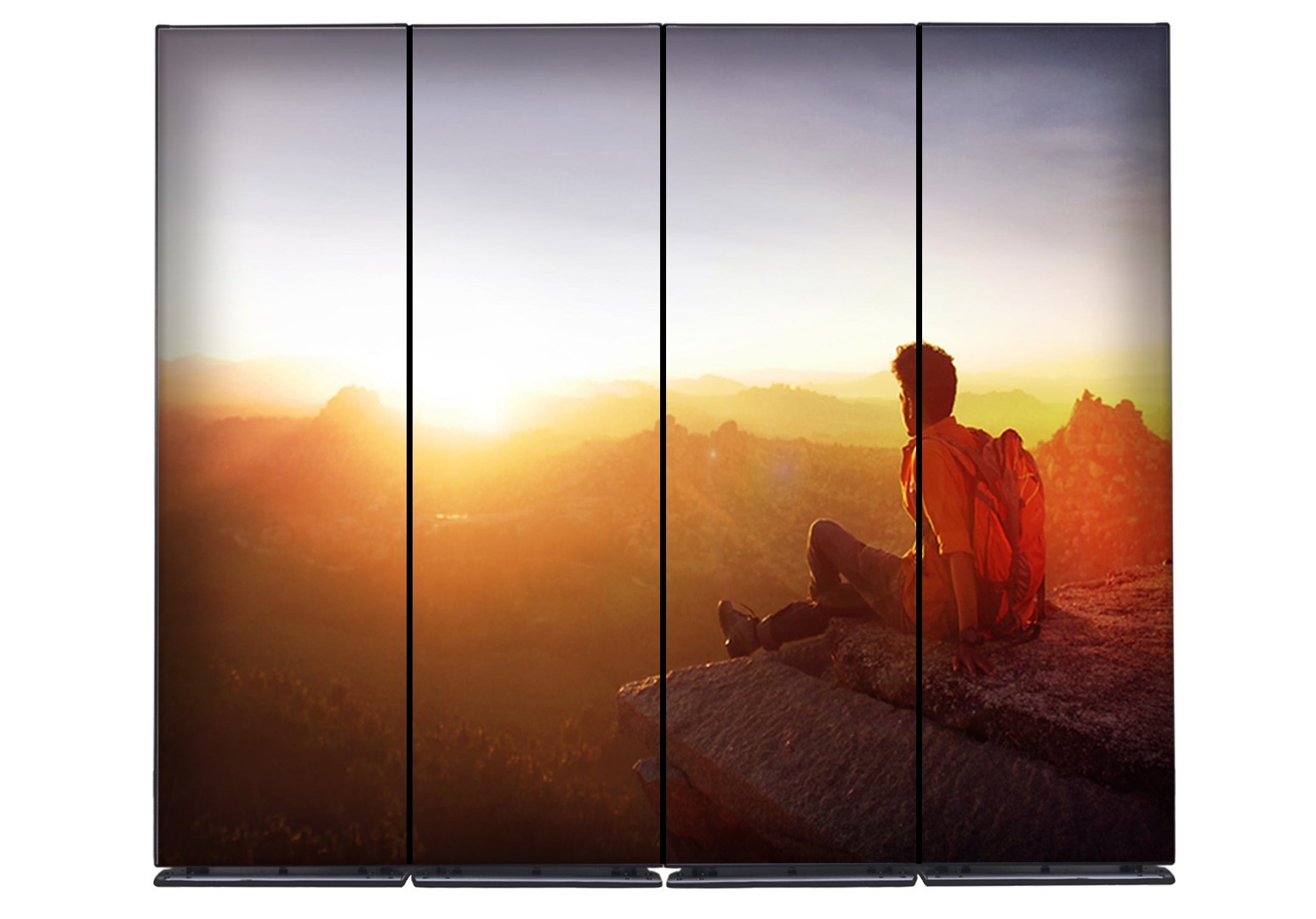

- HDMI In and HDMI Out Port, build a cascaded big screen with ease (max. 6 screens)
- Intuitive Software for Windows, iOS and Android.
- Packaged in cases of 2
Overview

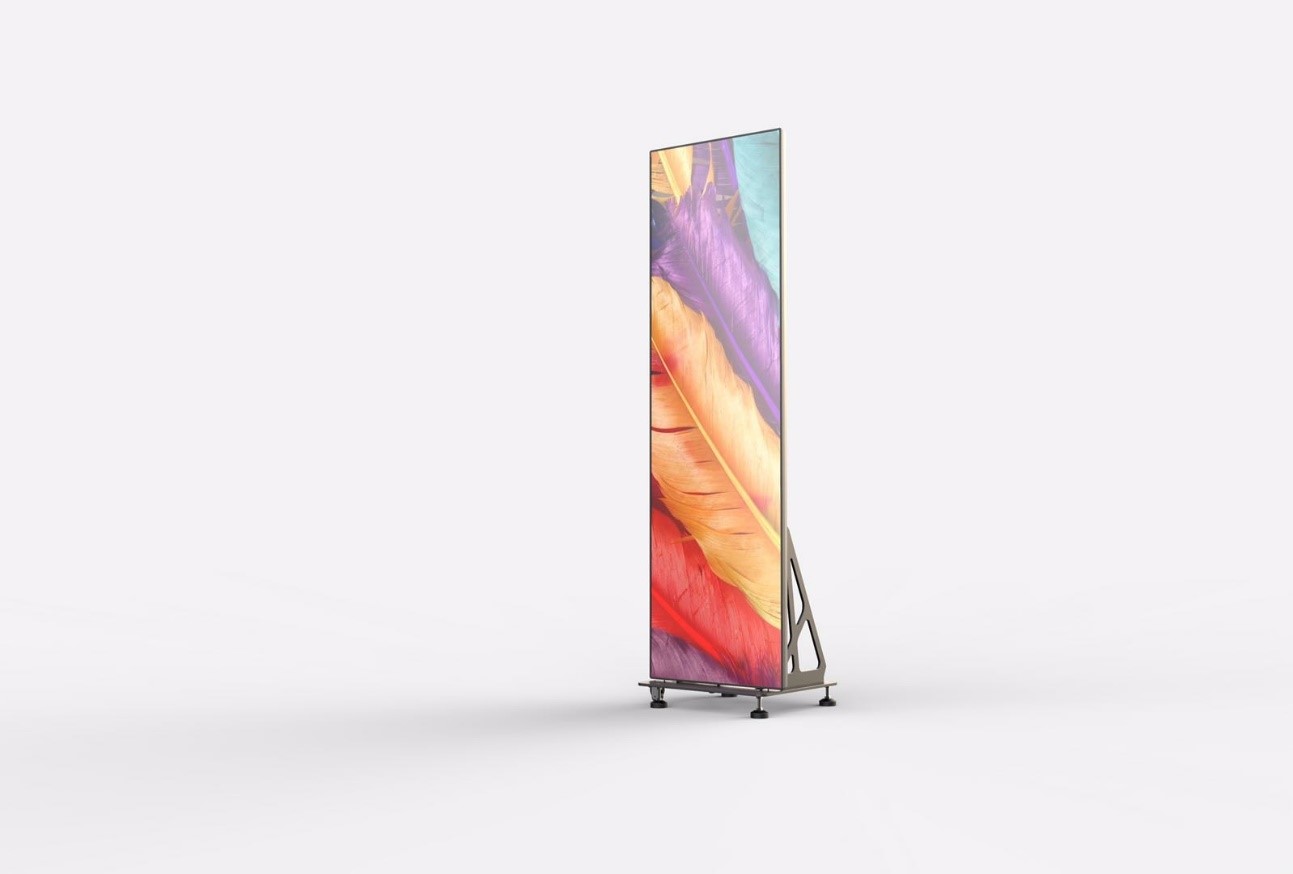

The ezPoster 560 is a versatile, portable LED display solution. Its slim and sleek design features a built-in media player, WiFi, USB and ethernet connectivity for easy setup and seamless operation. It can function as a standalone unit or be cascaded with multiple units to create larger video walls. Content uploading is made simple through the ezPoster software, and there’s also an HDMI port for personal media input. Ideal for exhibits, lobbies, and events, the ezPoster 560 Series offers a dynamic visual experience.
What's in the Case?
- SSBASE- SeeSharp Base
- SSPOSTC- SeeSharp Case
- SSBRCKT- SeeSharp Hang Bracket
- SSVARM- SeeSharp Vertical Arm
- 2- 3’ HDMI cable
- 2- Connection Plates
- 2- C13 to NEMA 5-15 (P) cables
- 1- USB A to B cable (for easy configuration).
- 1- USB 8GB drive (for software and manuals).
- 12- M8 x 36 x 1.25 Hanging screws.
- 14- M5 x 20 x 0.8 Flat head (Counter sink) screws
Specifications
| Model | EP560-1.9 |
|---|---|
| Pitch (mm) | 1.944 |
| Display Size (W X H) / Cascading | 560 x 1890 mm / 22.0 x 74.4 inch / Maximum of 6 panels for cascading |
| Resolution | 288 x 972 |
| Total Pixels | 279,936 |
| Dimension (W X H X D) | 576 x 1906 x 80 mm / 22.7 x 75.0 x 3.15 inch |
| Weight | 37.6kg / 82.9lb |
| Power Input | AC 100-240V 50/60Hz |
| Max. Power Consumption | 650W |
| Avg. Power Consumption | 280W |
| Connectivity | WiFi AP, WiFi, Enthernet, USB-Tethering, 2 x USB, HDMI In, HDMI out, 3.5mm Audio |
| Brightness | 750 nits |
| Gray Scale | 16,384 |
| Refresh Rate (Hz) | >= 2880 |
| Frame Rate (fps) | 60 |
| Operating Temperature | -10°C to 45°C / 14°F to 113°F |
| Operating Humidity | 10 – 90% RH |
| IP Rating | Front IP40 / Rear IP40 |
| Operating Life | 100,000 hours |
| Module Size | 280 x 210 mm |
| LED Type | SMD1515 |
| Module Resolution | 144 x 108 |
| Scan Mode | 1/27 Dynamic Scan |
| Module Count | 24 |
Technical Documentation
EXO Visual ezPoster EP560
1.94mm LED Display
- Rentex No. EXOEP560
- Mfr No. EP560-1.9
-
Available for same-day delivery in most major cities
-
Item is show-ready, double-tested for functionality
-
Accessories included, matched to the main unit
