Product Highlights
- Seamless poster cascade up to 6
- 8mm
- GOB
- Caster base included
- Phone and PC controlled
Overview

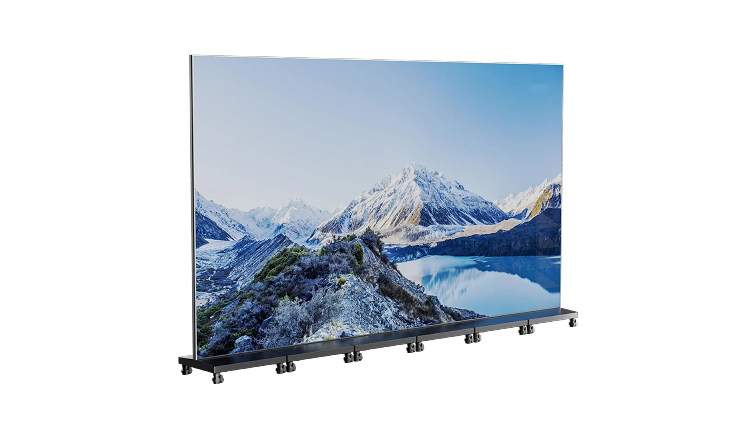

This premium LED display is engineered for high-impact visual performance, featuring a sleek die-cast aluminum cabinet measuring 630 × 42.6 × 2055 mm, with a generous 600 × 2025 mm viewing area. Built with durable GOB technology, the display uses precision 300 × 168.75 mm modules arranged in a 24‑module configuration per set, delivering enhanced protection and long-term reliability. A 4-layer PCB design with a 1/30 scanning standard ensures stable operation, while 600 nits of brightness and a high 3840 Hz refresh rate produce smooth, vibrant imagery ideal for close-viewing environments. Powered by a wide‑voltage 100–240V UL‑certified power supply, the unit offers safe, dependable performance across various applications. Designed for flexibility, the display supports seamless splicing for expanded installations and provides multiple control options, including WiFi and hard-wired connections, making it a versatile and professional solution for dynamic digital signage.
What's in the Case?
- Trulux P1.86 Indoor LED Poster base upright
- Trulux P1.86 Indoor LED Poster base
Specifications
| Product Specifications | |
| Product Model | X Poster Pro |
| Operating System | Android 11.0 |
| Core Configuration | Quad-core CPU / Mali GPU / 1 GB memory / 32 GB storage |
| Screen Size | 83 inches |
| Resolution | 320 × 1080 |
| Viewing Area | 600 mm × 2025 mm |
| Brightness | 480–800 cd/m², 8-level adjustable |
| Contrast | 4000:1 |
| Gray Scale | 14-bit |
| Refresh Rate | 3840 Hz |
| Viewing Angle | 160° horizontal / 160° vertical |
| Response Time | ≤ 0.5 ms (typical) |
| Video Interface | HDMI × 2 (1 input, 1 output), USB 2.0 × 1 |
| Audio Interface | Audio OUT × 1 |
| Control Interfaces | RJ45 × 1, USB-B × 1, Wi-Fi |
| Input Voltage | 100–240 V, 50/60 Hz |
| Power Consumption | ≤ 245 W average / ≤ 820 W peak |
| Standby Power | 0.5 W |
| Overall Dimensions | 630.2 mm × 2055.2 mm × 35 mm |
| Weight | 39 kg net / 44.5 kg with wheels |
| Installation Methods | Vertical installation (standard), seated installation (optional), hoisting (optional), or wall-mounted installation (optional) |
| Storage Temperature | -20°C to 20°C |
| Operating Temperature | -10°C to 40°C |
| Included Accessories | Tools, spare parts, HDMI cable, and instructions |
| Additional Operational and Specification Notes | |
| Maximum Power per Single Screen | 2300 W per screen to prevent overloading. |
| USB Interface | Provides 5 V, 500 mA output for external USB storage devices. |
| Multi-screen HDMI Splicing | Connect the HDMI OUT of the first screen to the HDMI IN of the next screen and continue this connection between additional screens. Use the app settings to configure the screens for synchronous HDMI playback. This allows seamless multi-screen splicing for signals up to 2K resolution. |
