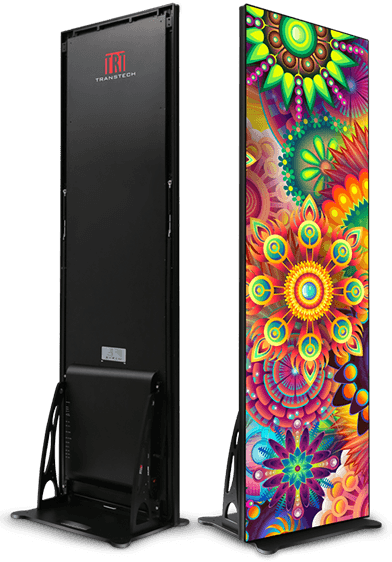

Product Highlights
- Slim appearance, attractive display | 1.9mm pixel pitch (high resolution)
- 74.8” high by 22.5” wide / Max. of 6 panels for cascading
- High refresh rate of 2.88kHz
- 160° viewing angle
- Packaged in cases of 2 | Standard “kickstand” included. Optional upright base available
Specifications
| Spec | Value |
|---|---|
| Model | P 1.9 |
| LED Type | SMD(1010) |
| Pixel pitch | 1.944mm |
| LED module size | 210×280mm |
| Resolution(H×W) | 108×144 |
| LED driving method | 1/27 dynamic scan |
| LED module layout(H×W) | 9×2 |
| Resolution(H×W) | 972×288 |
| Display area | 1.06m² |
| Cabinet size | 1902×572×35mm |
| Cascading | Maximum of 6 panels for cascading |
| Net. weight/set | 32kg |
| Ingress Protection | Front IP40/Rear IP40 |
| Power | AC 240/100±10% |
| Serviceability | Front service |
| Max.Power consumption | 750W |
| Avg.Power consumption | 250W |
| Viewing Angle(H/V) | 160°/160° |
| Brightness | 1000 cd/m² |
| Pixel density(pixel/m²) | 279,936 |
| Contrast ratio | 4,000:1 |
| Temperature/ Humidity (Operation/Storage) | -10°C to +40°C; 10% to 90% |
| Lifetime(50% brightness) | 80,000hours |
| Processing | 16bit |
| Colors | 281trillion |
| Refresh rate | 2880Hz |
| Frame rate | 60fps |
| Brightness level | Manually/Auto/Programmable |
Technical Documentation
TRT poster 1.9mm
LED iPoster Screen
- Rentex No. TRTPOST19
- Mfr No.
-
Available for same-day delivery in most major cities
-
Item is show-ready, double-tested for functionality
-
Accessories included, matched to the main unit
