Product Highlights
- 27" Full HD (1920x1080) resolution touch screen
- 10-point projected capacitive touch
- Built-in USB hub, HD webcam and microphone
- Unique, easy-to-use Helium Desk Stand
Overview
What's in the Case?
- PCT2785 27″ Wide Multi-Touch Monitor
- Power Cord
- VGA Cable
- HDMI Cable
- USB 3.0 Cable (A to B)
- Audio-in Cable
- User’s Guide
Specifications
| Specs | Spec Value |
|---|---|
| Viewable Size | 27″ diagonal (23.54″ horizontal x 13.24″ vertical) |
| Touchscreen Type | Projected Capacitive |
| Number of Touch Points | 10 |
| Touchscreen Interface | USB |
| Contrast Ratio (typ) | 1000:1 |
| Viewing Angle (typ) | 178° Horizontal and 178° Vertical (Specified at CR>10:1) |
| Response Time (typ) | 14 ms |
| Brightness (w/touchscreen) | 297 cd/m² |
| Brightness (w/o touchscreen) | 350 cd/m² |
| Display Type | IPS LCD Active Matrix Flat Panel Display (TFT) |
| Display Resolution | 1920 x 1080, FHD |
| Aspect Ratio | 16:9 |
| Tilt Range | +15° to +70° and flat |
| Palette | 16.7 million colors |
| Panel Depth | 1.95″ (49.65 mm) |
| Dimensions (W x H x D) | 26.48″ x 16.47″ x 1.95″ (672.69 mm x 418.50 mm x 49.65 mm) |
| Dimensions without Stand | 26.48″ x 16.47″ x 1.95″ (672.69 mm x 418.50 mm x 49.65 mm) |
| Display Weight | 19.5 lb (8.8 kg) |
| Display Weight (w/o stand) | Not applicable. Integrated stand folds into the monitor. |
| Shipping weight | 23 lb (10.4 kg) |
| Video Inputs | Analog, HDMI®, DisplayPort, VGA |
| HDCP | Yes |
| Audio Output | 2W x 2, headphone out |
| Compatibility | Windows® 7, 8, 10, 11 – HID Compliant – no drivers needed for basic touchscreen operation |
| Power Supply | Internal |
| Power Requirements | AC 100/240 VAC |
| Power Consumption (typ) | 45W (Standby and off: < 2.4W with USB 3.0) |
| Operating Temperature | 5° to +40°C (41° to 104°F) |
| Humidity | 10 – 90% RH (non-condensing) |
| Mount | Built-in 100 mm VESA, back |
| Recommended Usage | Up to 16 hours per day |
Technical Documentation

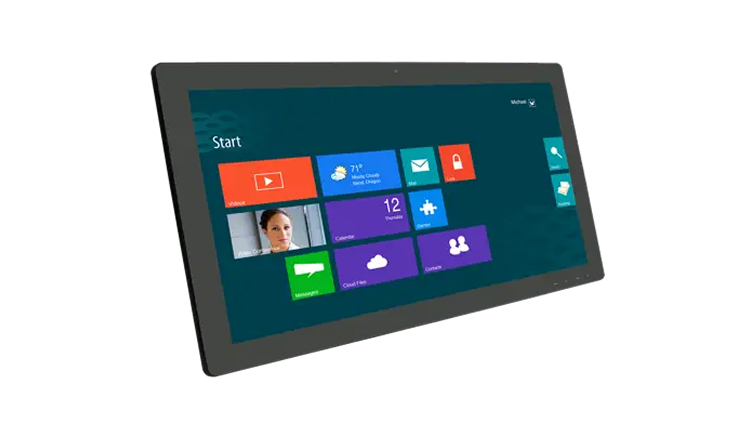

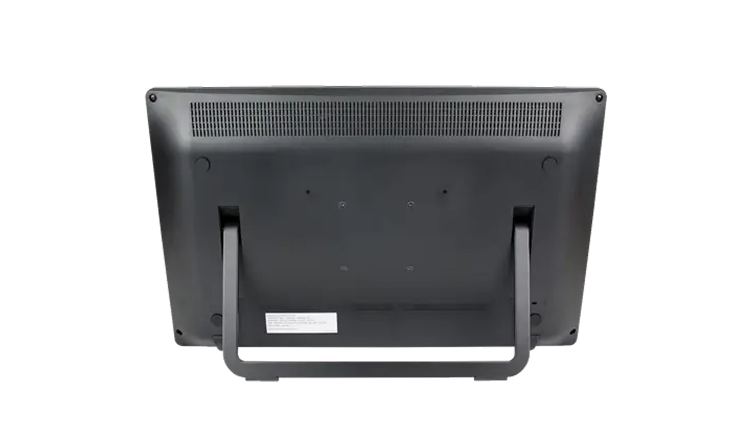

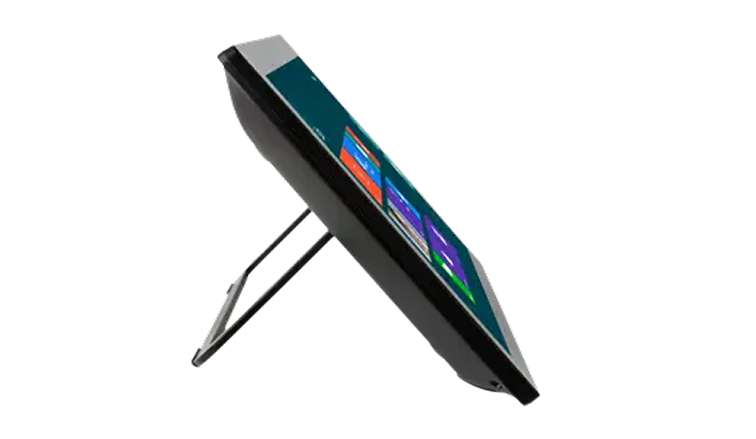

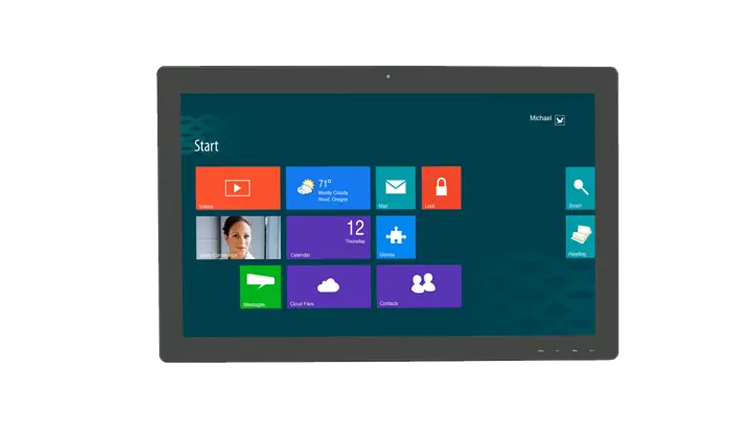

Planar Helium 27″ Touchscreen LED Monitor
Multi-point simultaneous touch
- Rentex No. PL24TS2785
- Mfr No. PCT2785
-
Available for same-day delivery in most major cities
-
Item is show-ready, double-tested for functionality
-
Accessories included, matched to the main unit
