Product Highlights
- Capacity: Fits up to 4 Shure receivers; common builds include 4× quad receivers (16 RF channels) or mixed dual/quad layouts.
- Scalable wiring/patching to match.
- Protection: Shock mounted inner rack inside an ATA shell for safe transport and fast on site setup.
- Network Ready: Dedicated 8 port gigabit switch for Wireless Workbench/control (and Dante monitoring when applicable).
- RF Front End: Active antenna/power distribution with dual Shure UA874US active directional antennas and a ready to deploy 50 Ω cable kit.
Overview
Shure Wireless Microphone Rack – 20U is built for live sound and production, delivering reliable performance with rental‑ready design.
Specifications
| Specs | Value |
|---|---|
| RF Capacity | Up to 4 receivers (platform agnostic); typical max 16 channels with 4× quad frames; Active antenna/power distribution feeding all receivers with dual UA874US for gain and pattern control |
| Power | Furman M 8Dx power conditioning and front panel voltage meter |
| Networking | 8 port gigabit switch; CAT5e jumpers ×6 installed with direct connection on patchbay |
| Antenna System & Cabling | UA874US pair |
| Audio I/O | WL rack patchbay normalized to receiver outputs (XLR); 16 ch (15’) main snake |

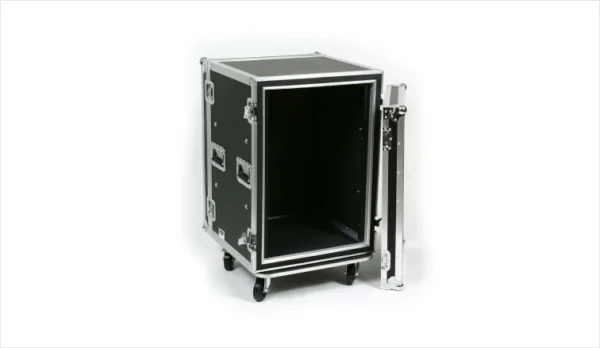

Shure Wireless Microphone Rack
20U
- Rentex No. WLADRACK20
- Mfr No.
-
Available for same-day delivery in most major cities
-
Item is show-ready, double-tested for functionality
-
Accessories included, matched to the main unit
