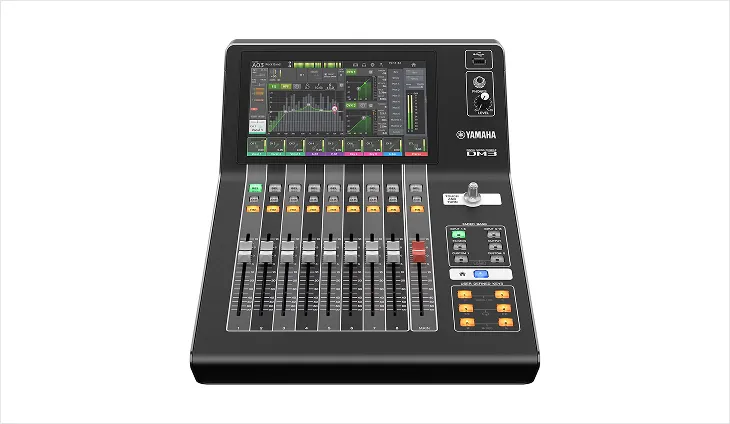

Yamaha – DM3-D

22-channel ultra-compact digital mixer, 9-inch touchscreen, 16 mic preamps, and an 18 x 18 USB audio interface

Mouse roll-over to zoom image.

Product Highlights

Local I/O: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) inputs, and 8 (XLR) outputs.
Ultra-Compact Design: Provides professional-grade features in a highly portable form factor.
9-inch Touchscreen: Ensures intuitive control and easy navigation of mixer functions.
96kHz Audio Quality: Delivers crystal-clear sound for live, recording, and streaming applications.
Dante Compatibility: Allows seamless integration with other Dante-enabled devices for flexible audio networking.

| Mfr No. DM3-D

The Yamaha DM3-D is a powerful and versatile 22-channel digital mixer that combines compact size with professional-grade features. It includes 16 mono channels, one stereo channel, and two stereo FX returns, all managed through a best-in-class 9-inch touchscreen and a single all-purpose touch-and-turn knob3.

The DM3-D delivers high-quality 96kHz audio, supported by 16 excellent mic preamps and eight analog outputs. It features multiple recording and streaming options, including an 18 x 18 USB interface, 16 x 16 Dante interface, and 2 x 2 recording directly to a USB drive. The mixer also offers DAW remote mode with transport control and custom control via OSC, USB-MIDI, and ProVisionaire.

Editor Installation Guide

MonitorMix User Guide

		DM3-D	DM3 Standard
Outline
Mixing Capacity	Input Channels	16 mono + 1 stereo + 2 FX return	16 mono + 1 stereo + 2 FX return
	Mix Buses	6	6
	Matrices	2 (Supports Input to Matrix)	2 (Supports Input to Matrix)
	Stereo Buses	1	1
	FX Buses	2	2
	Cue Buses	1	1
General specifications

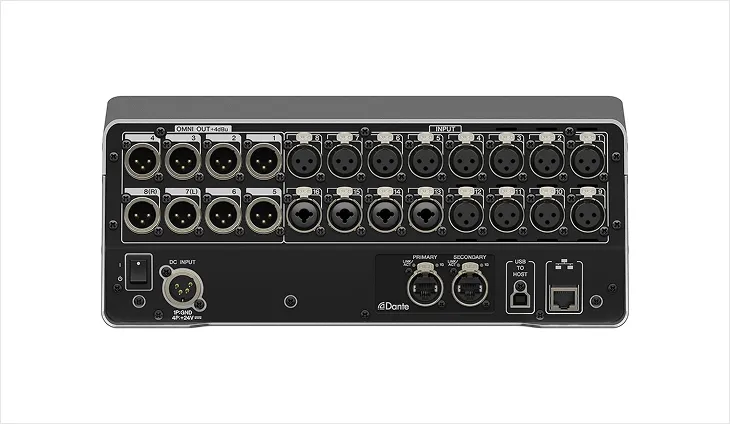

I/O Connectors	Analog Input	16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo)	16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo)
	Analog Output	8 (XLR)	8 (XLR)
	Dante	2 (etherCON: Primary/Secondary)	–
	Network	1 (RJ-45)	1 (RJ-45)
	USB TO HOST	1 (USB Type-B, USB2.0)	1 (USB Type-B, USB2.0)
	USB TO DEVICE	1 (USB Type-A)	1 (USB Type-A)
	Phones	1 (TRS Phones)	1 (TRS Phones)
	DC	1 (XLR 4pin, DC power IN)	1 (XLR 4pin, DC power IN)
User Interface		1x 9-inch multi-touch screen, 9x faders (8 channels + 1 main), 1x “Touch and Turn” rotary encoder	1x 9-inch multi-touch screen, 9x faders (8 channels + 1 main), 1x “Touch and Turn” rotary encoder
Recording & Playback	PC/Mac	Recording 18 track, Playback 18 track	Recording 18 track, Playback 18 track
Recording & Playback	USB storage device	Recording 2 track (USB hard disk / SSD / flash memory), Playback 2 track (USB hard disk / SSD / flash memory)	Recording 2 track (USB hard disk / SSD / flash memory), Playback 2 track (USB hard disk / SSD / flash memory)
Sampling frequency rate		96 kHz / 48 kHz	96 kHz / 48 kHz
Signal delay		Less than 1.3 ms, (CH INPUT to OMNI OUT, Fs=96 kHz)	Less than 1.3 ms, (CH INPUT to OMNI OUT, Fs=96 kHz)
Frequency response		+0.5, -1.0 dB 20 Hz-20 kHz, reference to the nominal output level@1 kHz, INPUT to OMNI OUT	+0.5, -1.0 dB 20 Hz-20 kHz, reference to the nominal output level@1 kHz, INPUT to OMNI OUT
Total harmonic distortion		Less than 0.01 % 20 Hz – 20 kHz@+4 dBu into 10 kΩ, INPUT to OMNI OUT, Input Gain= Min*1	Less than 0.01 % 20 Hz – 20 kHz@+4 dBu into 10 kΩ, INPUT to OMNI OUT, Input Gain= Min*1
Hum & noise level	Equivalent input noise	-126 dBu typ., Input Gain= Max.	-126 dBu typ., Input Gain= Max.
Hum & noise level	Residual output noise	-84 dBu, ST main off*2	-84 dBu, ST main off*2
Dynamic range		110 dB typ., DA Converter, 106 dB typ., INPUT to OMNI OUT, Input Gain=Min.	110 dB typ., DA Converter, 106 dB typ., INPUT to OMNI OUT, Input Gain=Min.
Crosstalk		-100 dB, adjacent INPUT/OMNI OUT channels, Input Gain= Min. @1 kHz*3	-100 dB, adjacent INPUT/OMNI OUT channels, Input Gain= Min. @1 kHz*3
Power requirements		DC24 V/2.5 A, PA-L500 (100 V-240 V, 50 Hz/60 Hz)	DC24 V/2.5 A, PA-L500 (100 V-240 V, 50 Hz/60 Hz)
Power consumption		43 W	43 W
Dimensions	W	320 mm (12.6″)	320 mm (12.6″)
	H	140 mm (5.6″)	140 mm (5.6″)
	D	455 mm (18.0″)	455 mm (18.0″)
Net weight		6.5 kg (14.3 lb)	6.5 kg (14.3 lb)
Included Accessories		Owner’s Manual, Power Adapter, Download Information	Owner’s Manual, Power Adapter, Download Information
Accessories		RK-DM3	RK-DM3
Operating temperature		0 – 40 °C	0 – 40 °C
Storage temperature		-20 – 60 °C	-20 – 60 °C
