Product Highlights
- 32 analog inputs + 16 analog outputs + 8 AES/EBU digital outputs for large format Dante I/O expansion.
- Redundant power supplies and Dante redundancy for mission critical reliability.
- Local control & monitoring (gain, delay, metering) plus onboard headphone output for direct cueing.
Overview
Yamaha RIO 3224-D3 Digital Stage Box is built for live sound and production, delivering reliable performance with rental‑ready design.
Specifications
| Specs | Value |
|---|---|
| Analog Inputs | 32 |
| Analog Outputs | 16 |
| AES/EBU Outputs | 8 |
| Dante Channels | 26 receive / 32 transmit |
| Headphone Output | Yes (front panel monitoring) |
| Sampling Rates | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz (internal or external sync) |
| Frequency Response | 20 Hz – 20 kHz (per Thomann listing) |
| Dynamic Range | 120 dB (A weighted) |
| Equivalent Input Noise | –128 dBu |
| Residual Output Noise | –88 dBu |
| Crosstalk | –100 dB |
| Signal Delay | |
| Local Display Controls | Input gain; output delay; metering; device settings |
| Dante Integration | Dante network integration with Yamaha consoles (CL/QL/DM series) |
| Power Supply | Dual redundant internal PSUs for high reliability |
| Power Consumption | 100 W |
| Rack Size | 5U |
| Dimensions (W × H × D) | 480 × 220 × 370 mm (18.9" × 8.7" × 14.6") |
| Weight | 13.2 kg (29.1 lb) |
| Other Notes | Designed for seamless integration with Yamaha’s Dante ecosystem; supports automatic gain compensation when used with compatible consoles (CL/QL) |

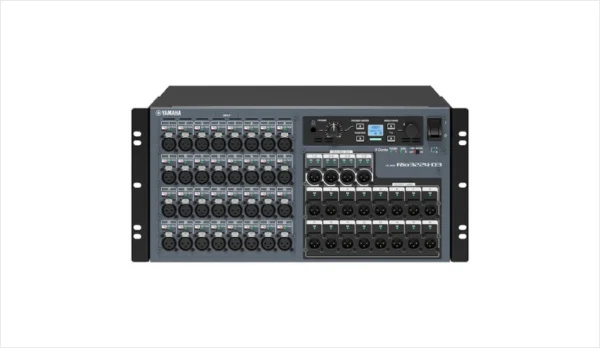

Yamaha RIO 3224-D3
Digital Stage Box
- Rentex No. YRIO3224D3
- Mfr No.
-
Available for same-day delivery in most major cities
-
Item is show-ready, double-tested for functionality
-
Accessories included, matched to the main unit
