Product Highlights

4 MIDAS-designed mic preamps deliver high-quality audio reproduction each w/+48V phantom power
Streams 4 inputs / 4 outputs plus 1x MIDI I/O with ultra-low latency to your computer, supporting Mac* OS X* and Windows XP* or higher
Audiophile 24-Bit/192 kHz resolution for professional audio quality
Zero-latency direct monitoring while recording

Overview

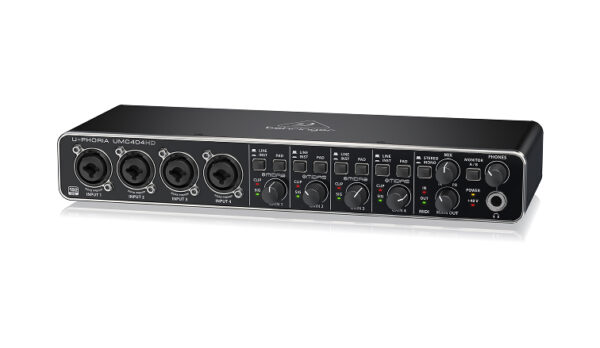

The Behringer U-PHORIA UMC404HD 4×4 USB 2.0 audio/MIDI interface offers four pro-grade MIDAS-designed mic preamps, accessible via XLR-1/4″ combo input jacks. Thanks to its switchable phantom power and per-channel line/instrument buttons, the U-PHORIA UMC404HD is ideal for simultaneous recording of four unique sources such as condenser or dynamic microphones, various instruments, and audio sources. Operating at 24-Bit/192 kHz, the UMC404HD converts preserve your audio signal to the utmost quality. If integrating additional analog signal processing is desired, simply utilize the available rear-panel 1/4″ insert jacks, available for all four inputs.

What's in the Case?

Behringer UMC404HD audio interface
Power supply
USB A to B cable 6-10′

Specifications

Form Factor	Tabletop
Channels of I/O	Analog: 4 Inputs / 4 Outputs at 192 kHz
Max Sample Rate/Resolution	192 kHz / 24-Bit
Number of Mic Preamps	4
Connectivity
Analog Audio I/O	4 x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line/Hi-Z Input (Front Panel) 4 x 1/4″ TRS Unbalanced Insert In/Out 2 x XLR 3-Pin Balanced Monitor Output 2 x 1/4″ TRS Balanced Monitor Output 4 x 1/4″ TRS Balanced Line Output 2 x Stereo RCA Coaxial Unbalanced Line Output 1 x 1/4″ TRS Unbalanced Headphone Output (Front Panel)
Phantom Power	+48 V, Selectable On/Off (Applied to All Inputs)
Host Connection / USB	1 x USB Type-B (Class-Compliant USB 2.0)
MIDI I/O	1 x DIN 5-Pin Input 1 x DIN 5-Pin Output
Performance
Frequency Response	Mic, Line, Hi-Z Inputs:10 Hz to 50 kHz +0/-3 dB Outputs: 10 Hz to 43 kHz +0.3 dB
Max Input Level	Mic Inputs: -4dBu Line Inputs: +20dBu Hi-Z Inputs: -3dBu Insert Returns: +3dBu
Max Output Level	+3 dBu
Impedance	Mic Inputs: 3 Kilohms Hi-Z Inputs: 1 Megohm Insert Send: 100 Ohms Insert Return: 10 Kilohms
Dynamic Range	100 dBA
Digital Audio
Sample Rates	44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Bit Depths	24-Bit
Latency	Zero-Latency Direct Monitoring
Sync Sources	Internal
Compatibility
OS Compatibility	macOS 10 or Later Windows XP or Later
Supported Drivers/API & Plug-Ins	macOS Class-Compliant (No Driver Needed) Windows Driver Downloadable from Manufacturer
Required Hardware	Available USB 2.0 Port USB Cable (Included)
Power
Power Requirements	AC/DC Power Adapter (Included) or USB Bus Power
AC Input Power	100 to 240 VAC, 50 / 60 Hz
AC/DC Power Adapter	5 VDC at 1000 mA, Center-Negative (Included)
Power Consumption	2.5 W (Maximum)
