Product Highlights

Quick Association, a fast and easy way to associate large numbers of fixtures to your processor
Pixel Mapping, allowing free placement and rotation of fixtures to 0˚ / 90˚ / 180˚ / 270˚ regardless of cabling order
Sub-fixture support

Overview

Brompton Technology’s Tessera S8 LED processor is perfect for high-profile projects that don’t require large output capacity but would still benefit from the flexibility of Brompton’s industry-leading Tessera feature set and easy-to-use software. Sitting alongside the award-winning Tessera SX40, this mid-range LED processor provides stunning results with support for all of Brompton’s ground-breaking Tessera processing features, including HDR and Dynamic Calibration as well as Ultra Low Latency, HFR+ (High Frame Rate) and Frame Remapping. It offers full 4K60 input support, with eight 1G outputs each capable of 525K pixels at 60Hz, 8 bits per color, and has a zero-latency up/down scaler that matches the source to the screen. The Tessera S8 allows for full HD output with closed loop redundancy, making it a great subrental option for your live events.

What's in the Case?

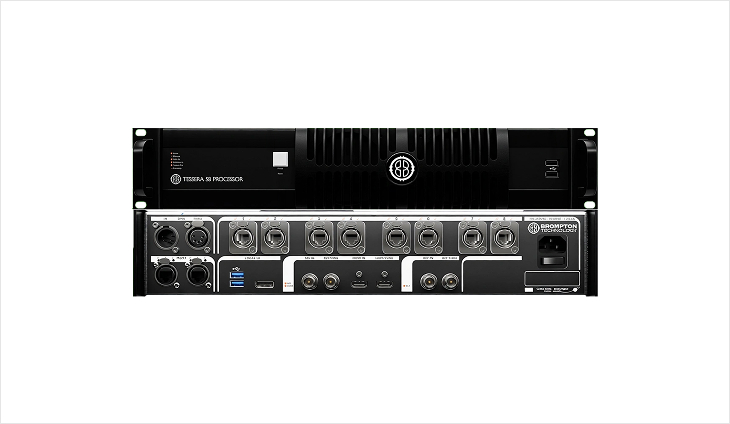

Brompton Tessera S8 Processor
(4) 50’ Ethercon to RJ45 cat6 (ECONRJ4550)

Specifications

PHYSICAL (WxHxL)

482.6mm (19”) x 88.9mm (3.5”) x 406.4mm (16”)
Rear width: 431.8mm (17”)

WEIGHT

7.50Kg (16.53lbs)

ELECTRICAL

Switched autoranging power supply
100 – 240V AC
50Hz – 60Hz
1.2 – 0.6A

HDMI 2.0 INPUT & RE-CLOCKED THRU PORT

One HDMI 2.0 input
Full 18Gbps HDMI 2.0 bandwidth, maximum 600MHz pixel clock
Up to 4096 x 2160 resolution (progressive only)
23.98Hz to 250Hz framerate
8,10 and 12 bits per channel colour depths
RGB and YCbCr 4:4:4, 4:2:2 and 4:2:0
Compatible with DVI-D and DisplayPort sources via adapters

SDI INPUT & RE-CLOCKED THRU PORT

One 12G SDI input that supports the following:
- HD-SDI – ST-292
- 3G-SDI – ST-424, Level A and Level B-DL
- 6G-SDI – ST-2081
- 12G-SDI – ST-2082, 2SI format
Up to 4096 x 2160 resolution (progressive only)
23.98Hz to 60Hz framerate
10 bits per channel colour depth
YCbCr 4:2:2

OUTPUTS

Eight 1 Gigabit Ethernet output ports
Supports nominally 525k pixels at 8 bits per colour @ 60Hz
Maximum output capacity 4.5 million pixels
10 and 12 bits per colour output supported at reduced pixel counts
Closed loop redundancy support

GENLOCK

Bi-level and Tri-level sync
Sync to source
Processors genlock from source right through to panel refresh
Frame rates from 23.98 to 60Hz

LATENCY

2 frames end-to-end system latency (all features)

TESSERA MANAGEMENT SOFTWARE

Local management using monitor, keyboard and mouse connected directly to processor
Up to 3840×2160 local monitor resolution supported, minimum 1920×1080 recommended

TESSERA REMOTE

Available free for Windows PC and Mac OS
Remote management using Windows PC or Mac connected to processor via Ethernet network
Two Gigabit Ethernet management network ports

REMOTE CONTROL

Support for eDMX protocols:
- Art-Net,
- Streaming ACN
DMX-512A on 5-pin XLR in and thru
Tessera Control application for multi-processor control via management network ports
IP Control

I/O
