Product Highlights
- Flexible 10G inputs: One 10G copper and one 10G fibre Tessera Protocol input for connection from the SX40 processor, plus a 10G thru for daisy-chaining additional XDs. Up to five XDs may be chained to expand capacity.
- Multiple 1G outputs: Ten 1G Tessera Protocol outputs for direct connection to fixtures, with per-port LEDs to confirm link status and simplify troubleshooting.
- Integrated control: Built-in touchscreen for local configuration and status monitoring.
- Rack or truss mountable: Compact 19" wide footprint (19" x 3.486" x 8.25") suitable for road cases, racks, or truss installations.
- Service-friendly cooling: Forced air cooling with user-replaceable air filters to maintain airflow in dusty rental environments.
- Worldwide power compatibility: 100 to 240V AC, 50Hz to 60Hz, 0.4 to 0.2A.
Overview
The Tessera XD 10G data distribution unit offers a versatile and advanced solution tailored to the demands of expansive LED display systems.
Specifications
| Spec | Value |
|---|---|
| Specification | One 10G Tessera Protocol copper ethercon input for connection from SX40. |
| Specification | 10G Tessera Protocol fibre input for connection from SX40 10 x 1G Tessera Protocol Ethercon output ports for connection to fixtures. |
| Specification | Used in combination with the XS40 unit not a stand alone. |
Technical Documentation

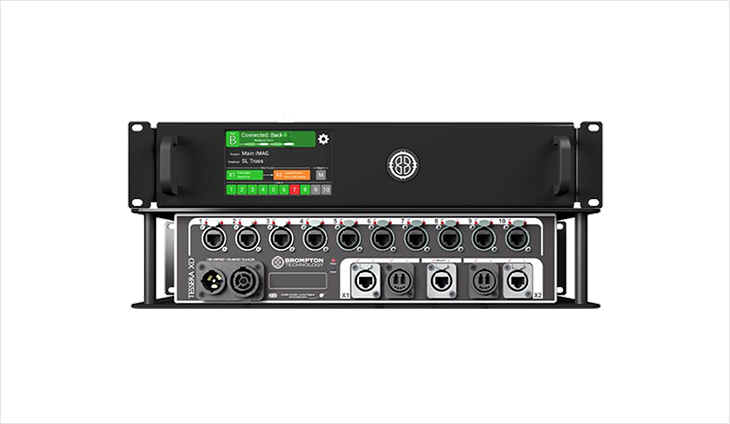

Brompton Tessera XD 10G data distribution unit
- Rentex No. XD10
- Mfr No. 311003-00028
-
Available for same-day delivery in most major cities
-
Item is show-ready, double-tested for functionality
-
Accessories included, matched to the main unit
