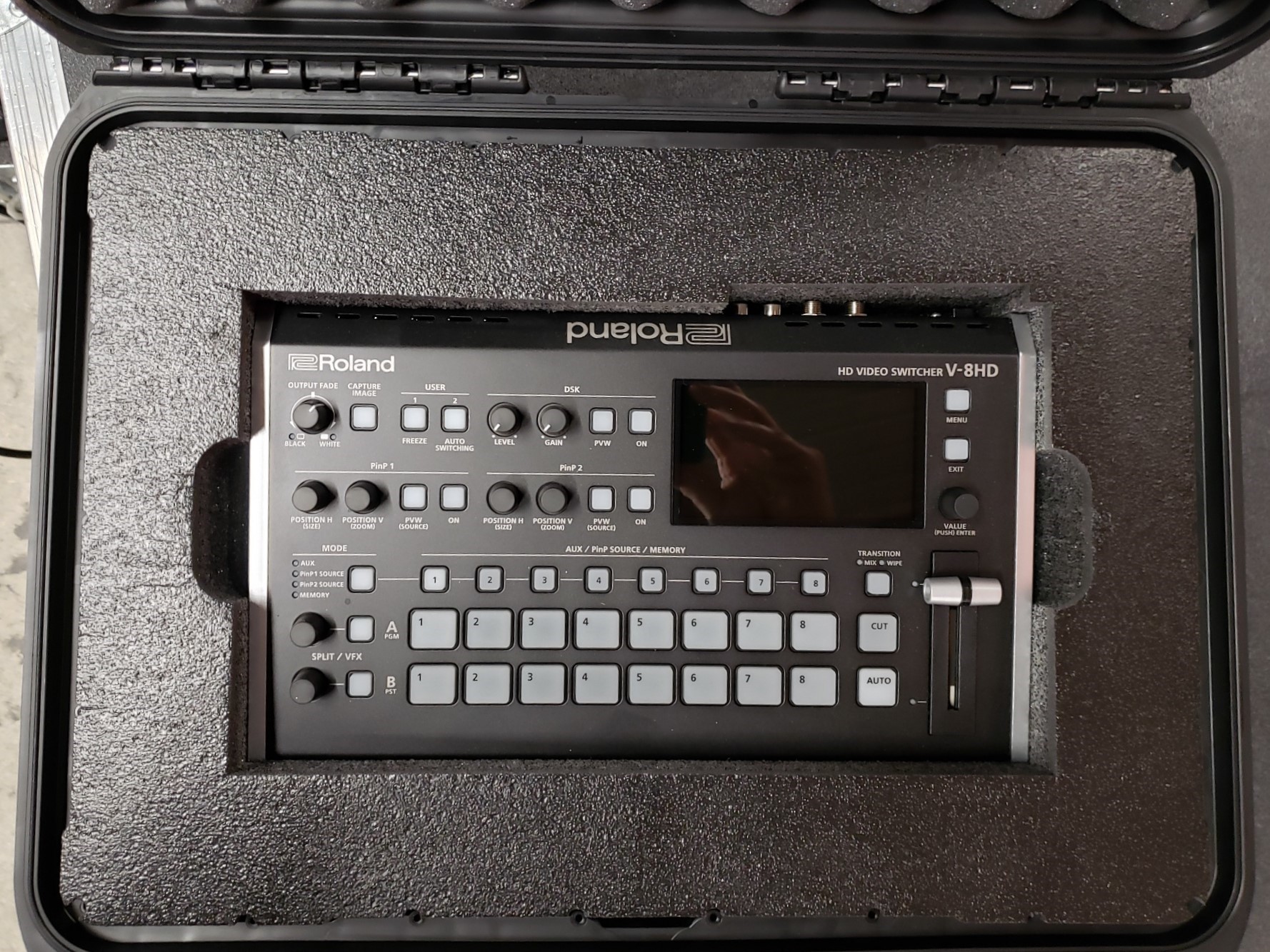

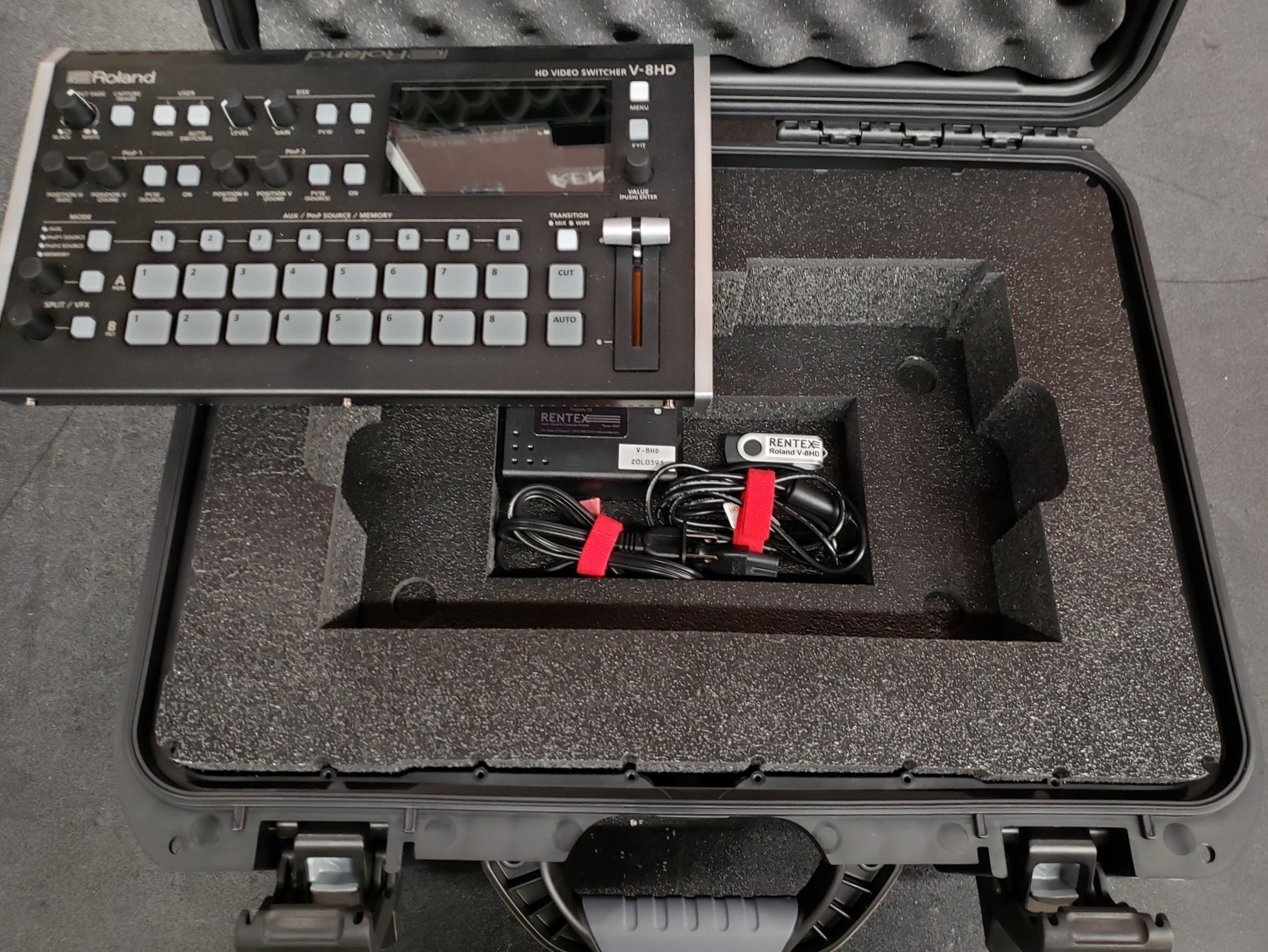

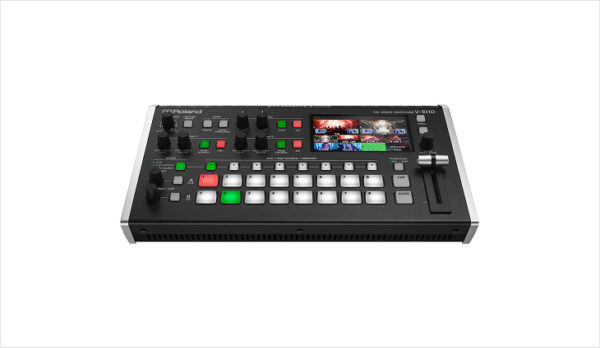

Roland V-8HD

8 Channel HDMI Switcher with On-Unit Multiviewer


Product Highlights

  • 8 in, 3 out HDMI switching
  • Five-layer effects and keying engine
  • Built-in multi-viewer preview monitor
  • Aux output for a different video feed
  • 18-channel digital audio mixer with effects
Rentex No. XVS4200 | Mfr No. V-8HD

Versatile, portable, and reliable, the Roland V-8HD brings a world of creative options to live event switching. Its all-in-one hardware design eliminates computer setup hassles and software-based crashes, while the HDMI workflow and loaded professional toolset streamline production and reduce stress on the gig.

Mix Effects
Available M/E Layers 5 M/E
Effect Types 8 x Graphic, Transition, Chroma Key, Alpha Key, Luma Key
Downstream Keys 2 x Chroma, Luma
Generators 1 x Pattern
Audio Mixing 18-Channel Mixing
Switching Type Pushbutton
Processing Resolution 1080p at 29.97/50/59.94
Color Processing 8-Bit 4:2:2 YCbCr
Audio Processing 48 kHz / 24-Bit
Number of Video Input Sources 8

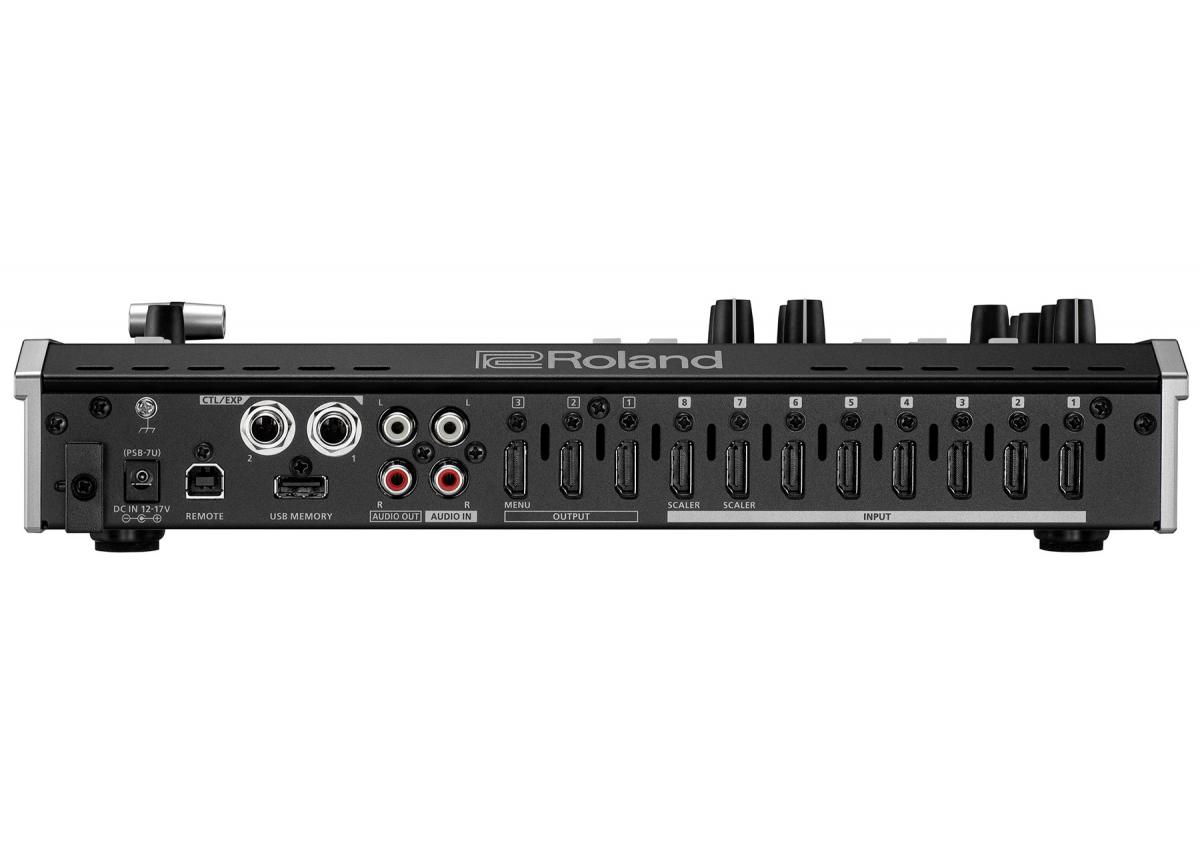

Video Input Connectors 8 x HDMI Female
Input Video Format HDMI (8-Bit 4:2:2 YCC)
1080p: 23.98/24/29.97/30/50/59.94/60 fps
1080i: 50/59.94 fps
720p: 50/59.94 fps
576p: 50 fps
PAL: 50 fps
480p: 59.94 fps
NTSC: 59.94 fps
WUXGA (1920 x 1200): 60 fps
Audio Input Connectors 1 x 2RCA Stereo Analog Female
Input Audio Format Analog: 48 kHz / 24-Bit
Embedded Audio Input HDMI: 2-Channel (per Input)
Video Output Channels 3
Video Output Connectors 2 x HDMI Female (Loop Output)
1 x HDMI Female (Preview)
Output Video Format HDMI (8-Bit 4:2:2 YCC)
1080p: 50/59.94 fps
1080i: 50/59.94 fps
Audio Output Connectors 1 x 1/4″ TRS Stereo Analog Female
Output Audio Format Analog: 48 kHz / 24-Bit
Embedded Audio Output HDMI: 2-Channel (per Output)
Multiview Output 1-Way Multiview viaHDMI
Monitor Output 1 x HDMI
Other I/O 1 x USB Type-A Firmware Input
1 x USB Type-B Control Input
HDCP Support Yes
Display Size 4.3″
Screen Resolution 480 x 272
Power Connector 1 x Barrel (12 to 17 VDC) Input
Power Consumption Device: 3.3 A(39.6 W)
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 12.48 x 7.6 x 2.76″ / 317 x 193 x 70 mm
Weight 4.41 lb / 2 kg
