Product Highlights
- HEVC (H.265) & AVC (H.264)
- Up to 1080p60
- SDI & HDMI Output
- Supports RTSP, SRT, MPEG-TS and TDS (Teradek Streaming)
- Dual-Band 2.4/5.8 GHz WiFi, Ethernet and USB Interfaces
Overview
HEVC, also known as H.265, is a next-generation compression standard that offers a number of enhancements over H.264. Compared to AVC (H.264) compression, HEVC is 50% more efficient, which translates into maintaining the same video quality at half the bitrate or double the video quality at the same bitrate.
What makes HEVC Cube unique
What makes HEVC Cube unique
- Can use both HEVC (H.265) and AVC (H.264) High Profile compression
- Compatible with Core transcoding engine. This allows you to take advantage of HEVC encoding when streaming to Core, while delivering your content in AVC to your destination.
- Dual input (HDMI + 3G-SDI)
- Compatible with the new Bond expansion module, allowing you to turn your Cube 700 series into a professional bonding solution
- GigE and 2.4 / 5Ghz 802.11ac WiFi built-in
- Bitrate support up to 30Mbps
- Streaming resolution support up to 1080p60
What's in the Case?
- Respective cube model
- Standard WiFi antennae
- Coiled SDI cable
- HDMI cable
- Ethernet cable
- Wall AC adapter
- DTAP to 2-pin power cable for battery operation
- 11” Articulating arm to ¼” or camera shoe mount
Specifications
| Specs | Value |
|---|---|
| Video | |

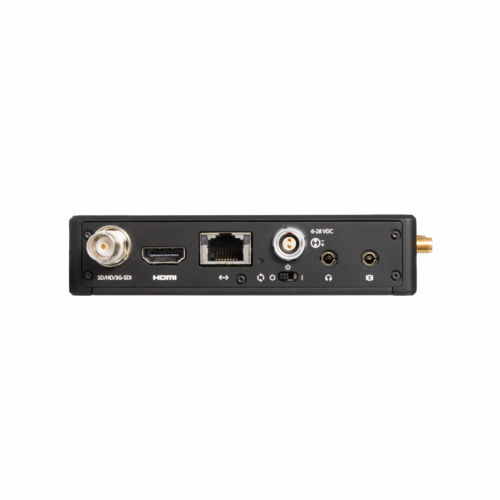

| Video Outputs |
HDMI 1.4a (full size) SD/HD/3G-SDI (BNC, 75Ω) |
| Supported Resolutions |
1080p (24–60 fps) 1080i (50/59.94/60) 1080PsF 720p (50/59.94/60) 576i / 480i 480p / 576p (HDMI only) |
| Compression |
HEVC (H.265), H.264 Baseline, Main, High Profile |
| Bitrate | 250 Kbps – 15 Mbps (15 Mbps wired / 10 Mbps WiFi) |
| Video Processing | Scaler & deinterlacer built-in |
| Test Pattern | None |
| Color Correction | None |
| Streaming & Protocols | |
| Transport Protocols |
RTP/RTSP (TCP/UDP, unicast/multicast) MPEG-TS (TCP/UDP, unicast/multicast) Teradek Streaming (UDP) |
| Network Protocols | TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP |
| Audio | |
| Audio Compression | AAC-LC, MPEG Layer 2 |
| Audio Input | Embedded audio, analog line/mic (adjustable gain) |
| Audio Output | Headphone (adjustable volume) |
| Control & Interface | |
| Remote Control | Teradek Core |
| Web Interface | WebUI for configuration and control |
| Display | OLED with joystick navigation |
| Switches | On/Off and Reset |
| Mobile Apps | Vuer, Live:Air |
| Connectivity | |
| Ethernet | 10/100 BASE-T |
| Wireless | WiFi 2.4/5 GHz (802.11 a/b/g/n, MiMo) |
| USB | Powered USB 2.0 host port |
| RF Channel Selection |
Auto (dual band or single band) Manual channel selection |
| Encryption | 802.1x, WPA2, WPA, WEP, AES (128-bit) |
| Physical | |
| Dimensions | 4.75″ × 3″ × 1.1″ (120.7 × 76.2 × 27.9 mm) |
| Weight | 6 oz (328.9 g) |
| Construction | Milled aluminum |
| Power | |
| Power Input | 2-pin connector |
| Aux Power | 6–28 V DC |
| Consumption | 8 W (7 W without WiFi) |
| Battery | Not included |
Technical Documentation

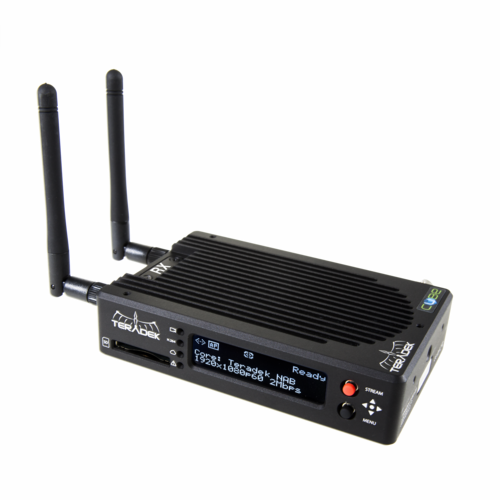

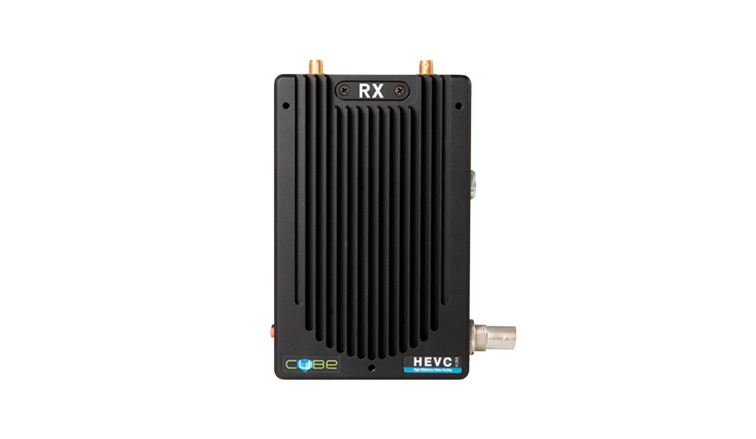

Teradek Cube 775 HEVC (H.265)/H.264 Decoder (RX)
Portable Stream Decoder
- Rentex No. XVP3750
- Mfr No. 10-0775
-
Available for same-day delivery in most major cities
-
Item is show-ready, double-tested for functionality
-
Accessories included, matched to the main unit
