UniFi Enterprise 8-Port 150W PoE Switch

Enterprise Gigabit 8-Port PoE Switch with (2) SFP Fiber Uplink ports

Ubiquiti Networks

Product Highlights

  • (8) WAN 10/100/1000 Mbps RJ45 Ethernet ports and (2) 1Gbps SFP Ethernet ports
  • 20 Gbps Total Switching Capability
  • Supports PoE+ IEEE 802.3af/at and 24V Passive PoE
  • Maximum Power Consumption: 150W
  • Quiet, Fanless Operation
Rentex No. UBQ8POESW | Mfr No. US‑8‑150W

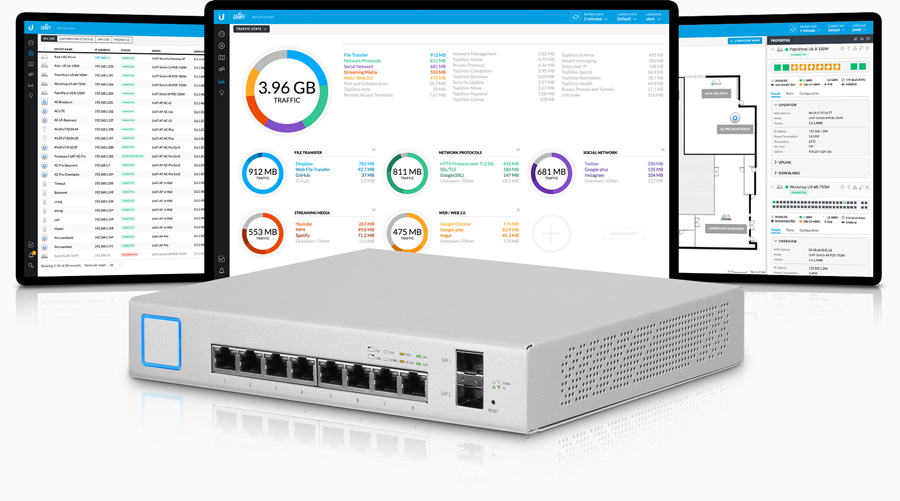

The Ubiquiti Unifi 8-Port 150W PoE switch is a highly customizable cloud-based switch. It comes with auto-sensing PoE+ (802.11af/at) ports or 24V passive PoE to simply your infrastructure. This enterprise-grade device is fully-managed and delivers exceptional switching capability with a total throughput of 20 Gbps.
Intended for use in most network scenarios, from small gatherings, House of Worships, or conferences with a handful of simultaneously connected devices.
The Ubiquiti Unifi 8-Port switch also features (2) SFP Fiber uplinks for expansion and supports 802.1X authentication, dynamic and static VLAN tagging, port isolation, storm control, and guest control.

  • UniFi Cloud Key Gen 2 – Management Controller – FA# XCN4300

Dimensions 9.25 x 1.69 x 8.03″

Weight 3.67 lb

Networking Interfaces (8) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports

Management Interface Ethernet In-Band

Total Non-Blocking Throughput 10 Gbps

Switching Capacity 20 Gbps

Forwarding Rate 14.88 Mpps

MAC Address Table 16384

Maximum Aggregations 6

Monitoring Sessions 1

Maximum VLANs 255

Power Method 100-240VAC/50-60 Hz, Universal Input

Power Supply AC/DC, Internal, 150W DC

Max. Power Consumption Including PoE Output: 150W, Excluding PoE Output: 20W

LEDs Per Port RJ45 Data Ports: PoE, Speed/Link/Activity, SFP Data Ports: Speed/Link/Activity

Sound Level* 0.5 dBr (Fanless)

ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV

Shock and Vibration ETSI300-019-1.4 Standard

Operating Temperature -5 to 40° C (23 to 104° F)

Operating Humidity 5 to 95% Noncondensing

Certifications CE, FCC, IC
