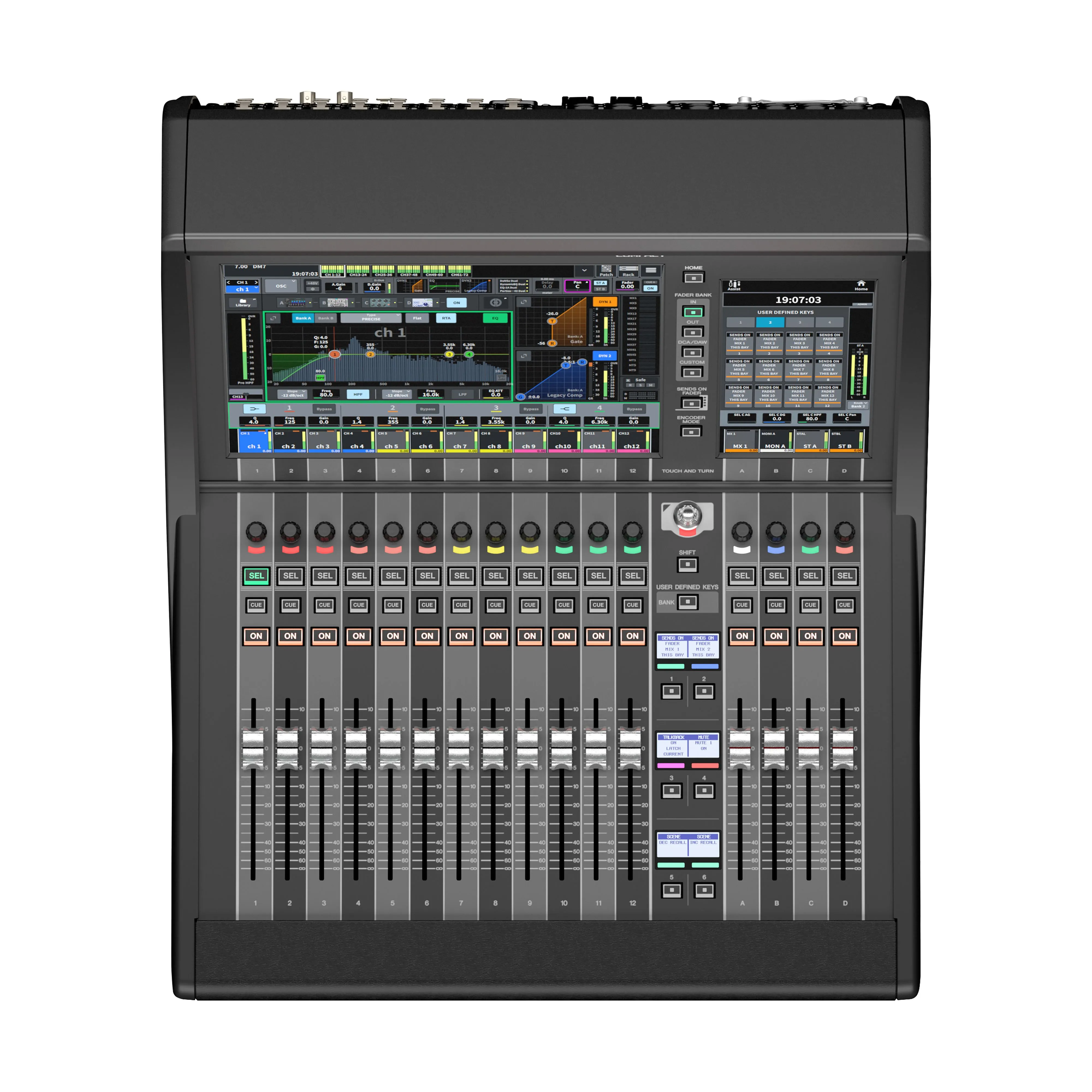

Yamaha – DM7-C
72-channel digital mixer, 12-inch + 7-inch multi-touch screen
Product Highlights
- Analog I/O: 16 inputs / 16 outputs
- Compact Design: Offers high performance in a smaller footprint, ideal for space-constrained environments.
- 96kHz Sample Rate: Ensures high-resolution audio quality for professional applications.
- Dante Interface: Provides flexible and high-capacity audio networking.
Rentex No. YHDM7C
|
Mfr No. DM7-C
Nationwide delivery with 24/7 sales and technical support.
Power Cable
| DM7 | DM7 Compact | ||
|---|---|---|---|
| Mixing Capacity | Input Channels | 120 mono | 72 mono |
| Mix Buses | 48 | 48 | |
| Matrices | 12 (Input to Matrix supported) | 12 (Input to Matrix supported) | |
| Stereo Buses | 2 | 2 | |
| Mono Buses | 1 (Stereo B can be changed) | 1 (Stereo B can be changed) | |
| Cue Buses | 2 | 2 | |
| I/O Connectors | Analog Input | 32 | 16 |
| Analog Output | 16 | 16 | |
| Dante | Primary / Secondary | Primary / Secondary | |
| AES/EBU Input | 2 (4ch) with SRC | 0 | |
| AES/EBU Output | 2 (4ch) with SRC | 1 (2ch) | |
| Expansion Slot (PY Slot) | 1 | 1 | |
| Word Clock I/O | In / Out | In / Out | |
| MIDI | No (MIDI protocol supported on USB to HOST) | No (MIDI protocol supported on USB to HOST) | |
| GPI | 5 in / 5 out | 5 in / 5 out | |
| USB TO DEVICE | 2 (File Save / Load, 2 Track Rec / Play) | 2 (File Save / Load, 2 Track Rec / Play) | |
| USB TO HOST | 1 (USB Type-C, USB2.0) | 1 (USB Type-C, USB2.0) | |
| Ethernet | Yes | Yes | |
| Meter Bridge | On screen | On screen | |
| Lamp | 0 (Bulit-in LED Strip Light) | 0 (Bulit-in LED Strip Light) | |
| Video Out | No | No | |
| TC In | Yes | Yes | |
| Phones | 1 | 1 | |
| AC | 2 (V-Lock Type) | 2 (V-Lock Type) | |
| External Redundant Power Supply | Built-in dual power supply | Built-in dual power supply | |
| Scene Memory | Number of Scenes | 500 | 500 |
| Recall Safe | Yes | Yes | |
| Focus Recall | Yes | Yes | |
| Fade Time | Yes | Yes | |
| Preview | Yes: Future Update | Yes: Future Update | |
| Selective Load / Save | Yes | Yes | |
| Global Paste | Yes | Yes | |
| Event List | No | No | |
| Overlay | No | No | |
| Isolate | No | No | |
| Tactile Control Keys | No | No | |
| Input Channel Functions | Input A/B | Yes | Yes |
| Gain Compensation | Yes | Yes | |
| Digital Gain | Yes (-96 dB to +24 dB) | Yes (-96 dB to +24 dB) | |
| Attenuator | Yes (-96 dB to +24 dB) | Yes (-96 dB to +24 dB) | |
| HPF | 20 Hz to 2,000 Hz, -6/-12/-18/-24 dB/oct Selectable | 20 Hz to 2,000 Hz, -6/-12/-18/-24 dB/oct Selectable | |
| PEQ | 4 Band Full PEQ (4 algorithms, RTA overlay supported) | 4 Band Full PEQ (4 algorithms, RTA overlay supported) | |
| LPF | 20 Hz to 20 kHz, -6/-12 dB/oct | 20 Hz to 20 kHz, -6/-12 dB/oct | |
| Dynamics 1 | Legacy Comp / Comp260 / Expander / Gate / Ducking / De-Esser | Legacy Comp / Comp260 / Expander / Gate / Ducking / De-Esser | |
| Dynamics 2 | Legacy Comp / Comp260 / Expander / Gate / Ducking / De-Esser / FET Limiter / Diode Bridge Comp | Legacy Comp / Comp260 / Expander / Gate / Ducking / De-Esser / FET Limiter / Diode Bridge Comp | |
| Input Delay | Yes (0 ms to 1,000 ms) | Yes (0 ms to 1,000 ms) | |
| Pan | Center Nominal / LR Nominal | Center Nominal / LR Nominal | |
| DCA Group | 24 (Output DCA supported) | 24 (Output DCA supported) | |
| DCA Rollout | Yes | Yes | |
| MUTE Group | 12 | 12 | |
| Number of Inserts | 4 slots on 1 insert point | 4 slots on 1 insert point | |
| Dan Dugan Automixer | Yes (Up to 64ch) | Yes (Up to 64ch) | |
| Direct Out | Yes | Yes | |
| Output Channel Functions | PEQ | 8 Band Full PEQ | 8 Band Full PEQ |
| GEQ | Virtual Rack (EQ Rack) | Virtual Rack (EQ Rack) | |
| Dynamics 1 | Legacy Comp / Comp260 / Expander / Gate / Ducking / De-Esser / FET Limiter / Diode Bridge Comp | Legacy Comp / Comp260 / Expander / Gate / Ducking / De-Esser / FET Limiter / Diode Bridge Comp | |
| Output Channel Delay | Yes (0 ms to 1,000 ms) | Yes (0 ms to 1,000 ms) | |
| MUTE Group | 12 | 12 | |
| Number of Inserts | 4 slots on 1 insert point | 4 slots on 1 insert point | |
| Premium Rack | Number of DSP Resources | 64 | 64 |
| Mountable Plug-ins | RND Portico5033 / RND Portico5043 / Portico 5045 / U76 / Opt-2A / Comp276 / Buss Comp 369 / MBC4 / DaNSe / EQ-1A / Equalizer601 / Dynamic EQ / Dynamic EQ4 / REV-X / OpenDeck / Analog Delay / Max100 / Vintage Phaser / Dual Phaser / HQ.Pitch | RND Portico5033 / RND Portico5043 / Portico 5045 / U76 / Opt-2A / Comp276 / Buss Comp 369 / MBC4 / DaNSe / EQ-1A / Equalizer601 / Dynamic EQ / Dynamic EQ4 / REV-X / OpenDeck / Analog Delay / Max100 / Vintage Phaser / Dual Phaser / HQ.Pitch | |
| Effect Rack | Number of DSP Resources | 16 | 16 |
| Number of Effect Types | 43 | 43 | |
| EQ Rack | Number of DSP Resources | 32 | 32 |
| Mountable Devices | 31BandGEQ / Flex15GEQ / 8Band PEQ (RTA overlay supported) | 31BandGEQ / Flex15GEQ / 8Band PEQ (RTA overlay supported) | |
| Dante | Number of I/O Channels | 144 in / 144 out | 144 in / 144 out |
| Number of I/O devices that can be discovered from the console | 127 *1 | 127 *1 | |
| Number of I/O devices that can be mounted | 24 | 24 | |
| Number of I/O devices with HA remote control | 24 | 24 | |
| Dante Patch from Console | Yes | Yes | |
| USB to Host | Number of Audio I/O Channels | 18 in / 18 out | 18 in / 18 out |
| USB MIDI | Yes | Yes | |
| Monitor | Solo Mode | Yes | Yes |
| Oscillator | Sine Wave 1ch / Sine Wave 2ch / Pink Noise / Burst Noise | Sine Wave 1ch / Sine Wave 2ch / Pink Noise / Burst Noise | |
| Other Functions | Port to Port | Yes | Yes |
| Timecode Reader/Display | Yes | Yes | |
| Timecode Chase | No | No | |
| GPI | Yes (5 in / 5 out) | Yes (5 in / 5 out) | |
| MIDI | Yes (USB MIDI) | Yes (USB MIDI) | |
| OSC Server | Yes | Yes | |
| DAW Remote | Yes | Yes | |
| Nuendo Live: Control Integration | Yes | Yes | |
| Virtual Soundcheck | Yes | Yes | |
| Wireless Mic Monitoring | Yes | Yes | |
| RTA | Yes | Yes | |
| Delay Compensation | Yes | Yes | |
| Output Port Delay | Yes（Up to 20 ports）*Future Update | Yes（Up to 20 ports）*Future Update | |
| Sub In | Yes | Yes | |
| User Levels | Yes | Yes | |
| Channel Link | Yes | Yes | |
| Temporary Channel Link | Yes *Future Update | Yes *Future Update | |
| Multi Language Channel Names | Yes | Yes | |
| Mix/Matrix to Input | Yes | Yes | |
| Split Mode | Yes | Yes | |
| Assist | Yes (HA / Naming / Fader) | Yes (HA / Naming / Fader) | |
| User Interface | Displays | 12.1” multi-touch x 2, 7” multi-touch x 1 | 12.1” multi-touch x 1, 7” multi-touch x 1 |
| Faders | 24 + 4 | 12 + 4 | |
| Channel / Screen Encoders | Yes | Yes | |
| Channel Name / Color Displays | No (on-screen) | No (on-screen) | |
| Custom Fader Banks | Yes | Yes | |
| Shift Keys | Yes | Yes | |
| User Defined Keys | Surface: 12 (6 keys x 4 banks), Utility Screen (On-screen): 12 (12 keys x 4 banks) | Surface: 6 (6 keys x 4 banks), Utility Screen (On-screen): 12 (12 keys x 4 banks) | |
| User Defined Knobs | Yes (by 4 encoders below the Utility screen) | Yes (by 4 encoders below the Utility screen) | |
| Touch and Turn Knobs | Yes | Yes | |
| Monitor Level Knobs | No | No | |
| Arm Rest | Yes | Yes | |
| Rack Mountable | No | Yes | |
| Software | Editor | DM7 Editor (Win/Mac) | DM7 Editor (Win/Mac) |
| StageMix | DM7 StageMix | DM7 StageMix | |
| MonitorMix | Yes | Yes | |
| Console File Converter | Yes | Yes | |
| ProVisionaire Control/Touch | Yes | Yes | |
| Software Package | Broadcast Package, Theatre Package | Broadcast Package, Theatre Package | |
| Dimensions | W | 793 mm (31.3″) | 468 mm (18.5″) |
| H | 324 mm (12.8″) *including the rubber feet | 324 mm (12.8″) *including the rubber feet | |
| D | 564 mm (22.2″) | 564 mm (22.2″) | |
| Net weight | 23.5 kg (51.8 lb) | 16.5 kg (36.4 lb) | |
| Included Accessories | Owner’s Manual, AC power cords, Dust cover, Cable hook (for USB TO HOST), Nuendo Live, VST Rack Elements | Owner’s Manual, AC power cords, Dust cover, Cable hook (for USB TO HOST), Nuendo Live, VST Rack Elements | |
| Accessories | – | RK1 | |
-
