Product Highlights

12-Channel Mixing Console
Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
2 GROUP Buses + 1 Stereo Bus
2 AUX (incl. FX)
“D-PRE” mic preamps with an inverted Darlington circuit
1-Knob compressors
PAD switch on mono inputs
+48V Phantom power
XLR balanced outputs
Internal universal power supply for world-wide use
Metal chassis

Overview

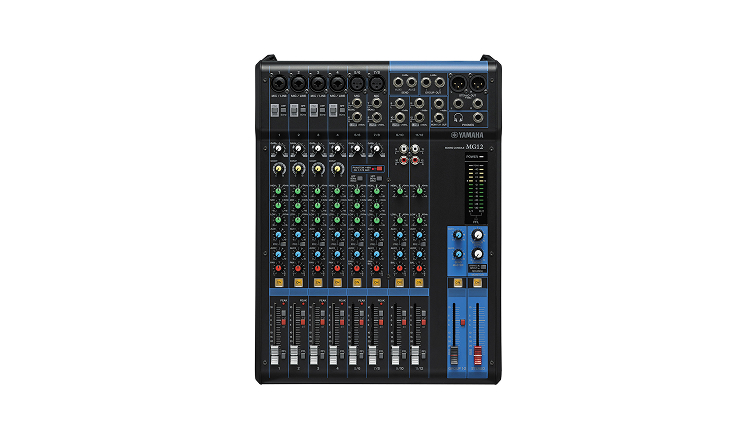

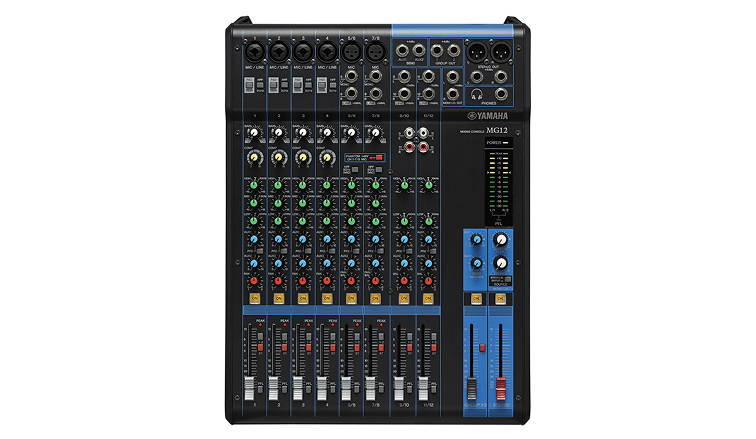

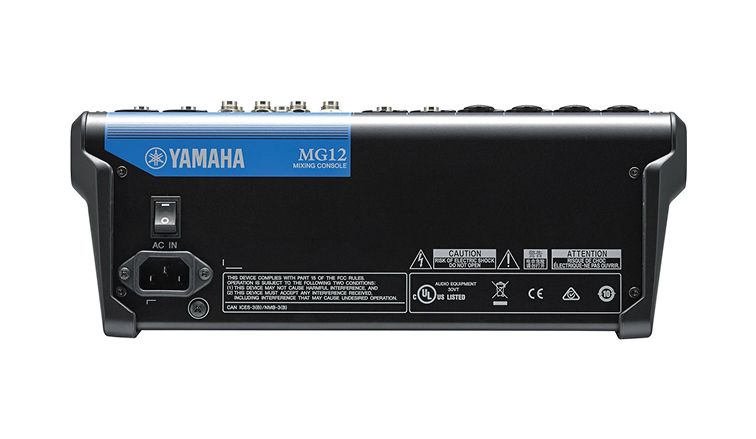

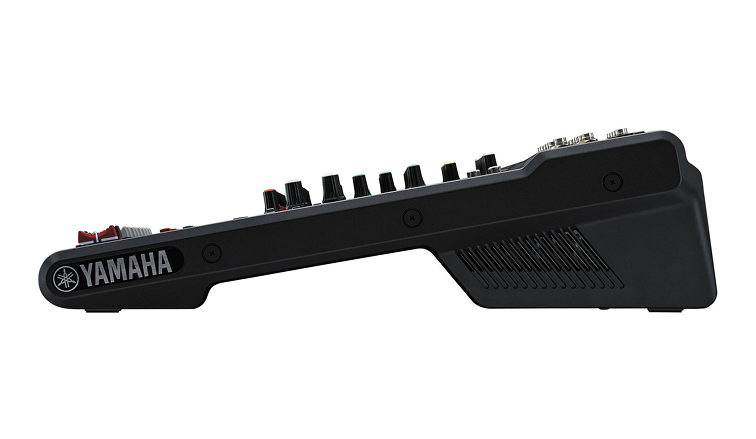

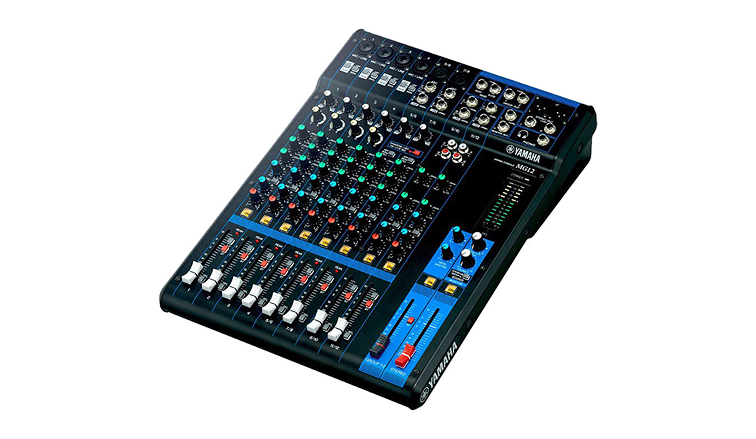

The Yamaha MG12 Mixer is a 12-channel mixing console with an intuitive, easy-to-use interface, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of MG12 lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivaled in its class.

What's in the Case?

(1) Yamaha MG12 Mixer
(1) AC Power Cord

Specifications

Specs	Value
Outline
I/O	Phantom Power: +48 V
Input Channels	Mono [MIC/LINE]: 4 Mono/Stereo [MIC/LINE]: 2Stereo [LINE]: 2
Output Channels	STEREO OUT: 2< MONITOR OUT: 1 PHONES: 1 AUX SEND: 2 GROUP OUT: 2
Bus	Stereo: 1 GROUP: 2 AUX: 2
Input Channel Function	PAD: 26 dB (Mono) HPF: 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) COMP: 1-knob Compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu Ratio: 1:1 to 4:1 Output Level: 0 dB to 7 dB Attack Time: approx. 25 msec Release Time: approx. 300 msecEQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz Shelving EQ MID: Gain: +15 dB/-15 dB, Frequency: 2.5 kHz Peaking EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz Shelving PEAK LED: LED turns on when post EQ Signal reaches 3 dB below Clipping
Level Meter	2×12-Segment LED Meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
General Specifications
Total Harmonic Distortion	0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min 0.005 % @ +24dBu (1kHz), GAIN knob: Min
Frequency Response	+0.5 dB/-1.5 dB (20 Hz to 48 kHz), refer to the Nominal Output level @ 1 kHz, GAIN knob: Min
Hum & Noise Level	Equivalent Input Noise: -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) Residual Output Noise: -102 dBu (STEREO OUT, STEREO Master Fader: Min)
Crosstalk	-78 dB
Power Requirements	AC 100 – 240 V, 50 / 60 Hz
Power Consumption	22 W
Dimensions	W: 308 mm (9.6″) H: 118 mm (2.8″) D: 422 mm (11.6″)
Net Weight	4.0 kg (8.8 lbs.)
Operating Temperature	0 to +40°C
