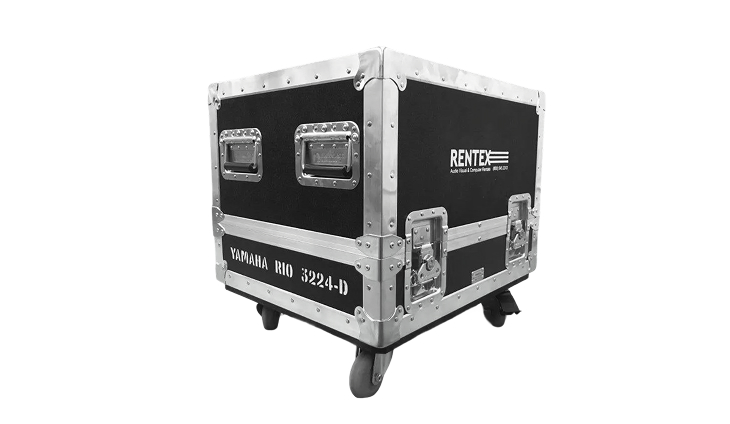

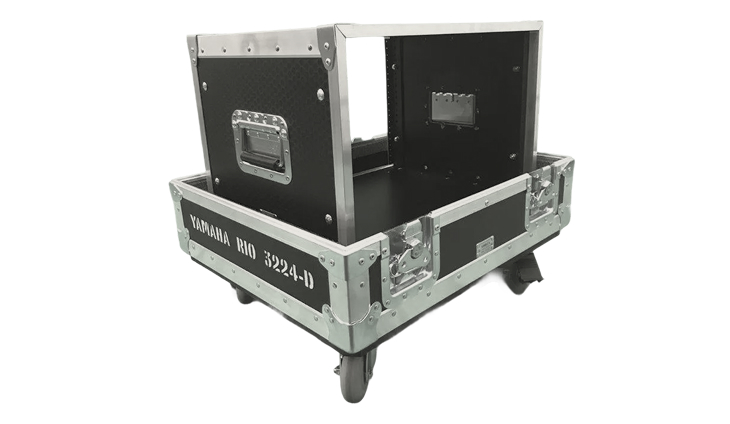

Yamaha Rio
3224-D Remote Stage Box
Product Highlights
- 32 transparent, natural sounding microphone preamps
- 16 line outputs & 4 stereo AES/EBU digital outputs
- Redundant and Daisy-chain Dante connectivity
- Remote configuration via Dante Controller software (free download)
- Low-latency digital audio communication & Redundant power supplies
The Rio3224-D is a high-performance low-latency I/O unit for our Yamaha CL, and QL consoles (also compatible with RIVAGE and PM series consoles). This digital stagebox is loaded with 32 transparent, natural sounding microphone preamps, 16 line outputs, and 4 stereo AES/EBU outputs. The Rio3224-D connects directly to a Dante digital audio network, giving you flexible system configuration at up to 96kHz, as well offering the ability to run in redundant or daisy-chain configuration. For added security the Rio3224-D offers dual redundant power supplies (only one is necessary for operation). Flexible and ease of setup; configuring and adding a Rio3224-D to your audio system is designed to be stress free.
| Sampling frequency rate | 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 88.2kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 96kHz: +4.1667%, +0.1%, -0.1%, -4.0% |
| External | |
| Signal delay | Less than 3ms INPUT to OUTPUT, connect with CL5 using Dante, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz |
| Total harmonic distortion | Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, Fs=44.1kHz, 48kHz / Less than 0.05% 20Hz-40kHz@+4dBu into 600Ω, Fs=88.2kHz, 96kHz INPUT to OUTPUT, Input Gain = Min |
| Frequency response | +0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs=44.1kHz, 48kHz / +0.5, -1.5dB 20Hz-40kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs=88.2kHz, 96kHz |
| Dynamic range | 108dB typ., INPUT to OUTPUT, Input Gain = Min |
| Hum & noise level | |
| Equivalent input noise | -128dBu typ., Equivalent Input Noise, Input Gain=Max |
| Residual output noise | -88dBu Residual output noise, ST master off |
| Crosstalk | -100dB, adjacent INPUT/OUTPUT channels, Input Gain = Min. |
| Power requirements | US/Canada: 120V 60Hz, |
| Power consumption | 120W |
| Sound Philosophy | Natural Sound Concept |
| Grade | Inherit the sublime sound of PM series |
| Sampling Rate | 44.1/48/88.2/96kHz |
| Indicators | Sig, Peak, +48V |

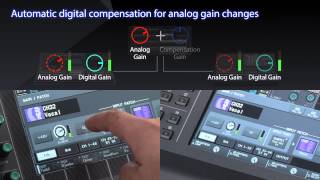

| Gain Compensation | Supported |
| HA Control Redundancy from CL/QL consoles | Supported |
| Controllability from R Remote software | Supported |
| Maximum number of units using HA remotes per system | Up to 8 |
| AD8HR mode (HA control from M7CL and LS9) | Supported |
| Analog Inputs | 32 |
| Analog Input Connector | XLR-3-31 Type |
| Analog Outputs | 16 |
| AES/EBU Outputs | 8 (4ST) |
| AC Inlet | V-Lock Type |
| Heights | 5U |
| Analog Input Characteristics | |
| GAIN | +66dB |
| Actual Load Impedance | 7.5kΩ |
| For Use With Nominal | 50-600Ω Mics & 600Ω Lines |
| Input Level | Nominal: -62dBu/ Max. before clip: -42dBu |
| Analog Output Characteristics | |
| Actual Source Impedance | 75Ω |
| For Use With Nominal | 600Ω Lines |
| Max.Output Level Select SW | +24dB (default) |
| Output Level | Nominal: +4dBu/ Max. before clip: +24dBu |
| Digital Input & Output Characteristics | |
| Terminal | Primary/Secondary |
| Format | Dante |
| Data length | 24bit or 32bit |
| Level | 1000Base-T |
| Audio | 24ch Input/32ch Output (Rio3224-D) |
| Connector | etherCON Cat5e |
-
