Product Highlights

Ultra-light Weight shoulder-type camera-recorder
High-Quality image processing and versatile image settings
HS/SD Multi format/multi codec
Pair with Teradek for run and gun style production
B4 style lens mount

Overview

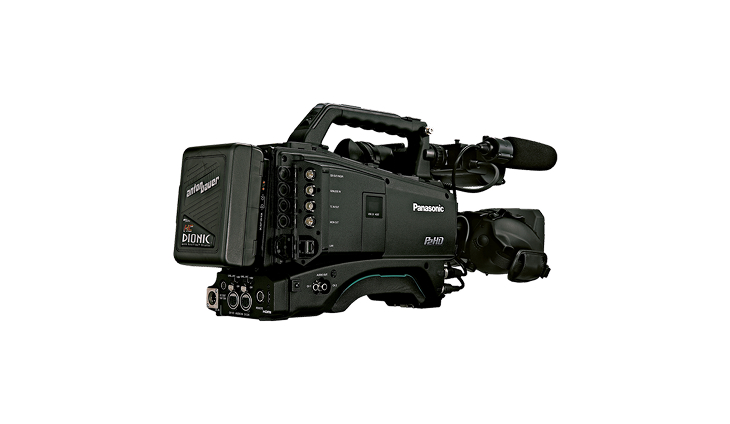

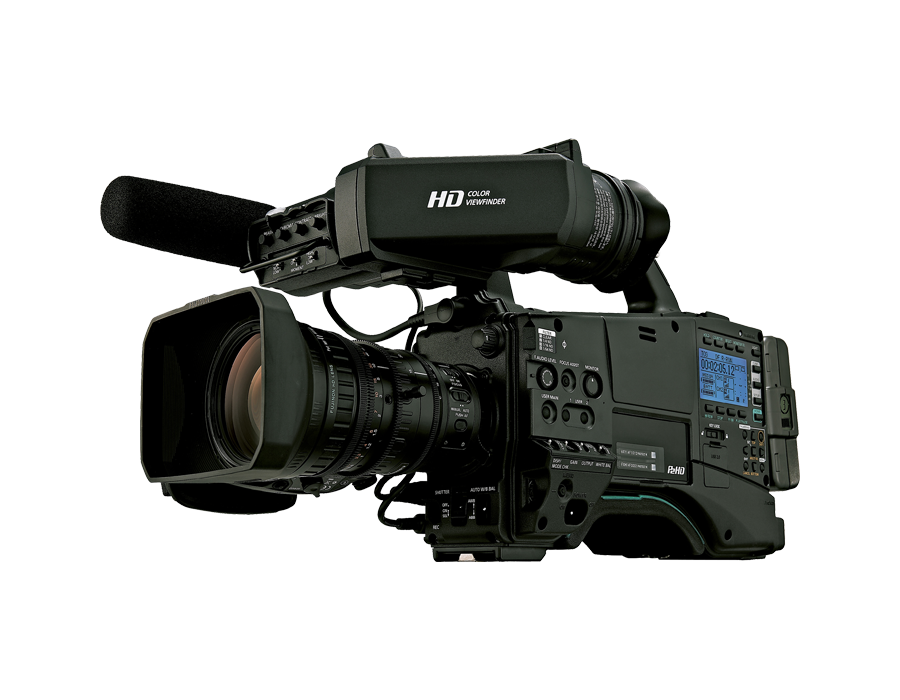

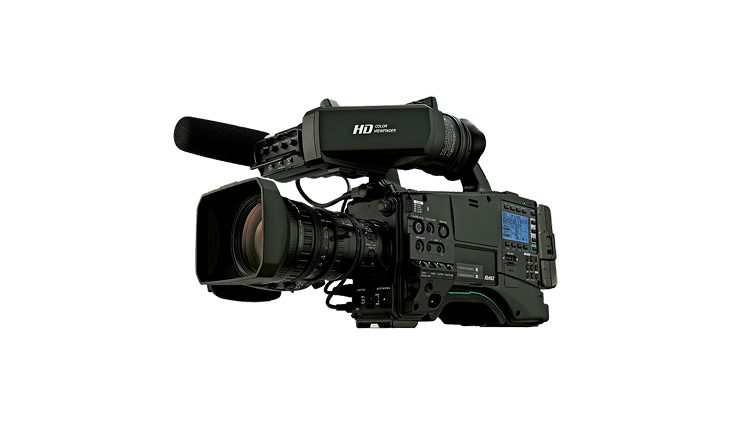

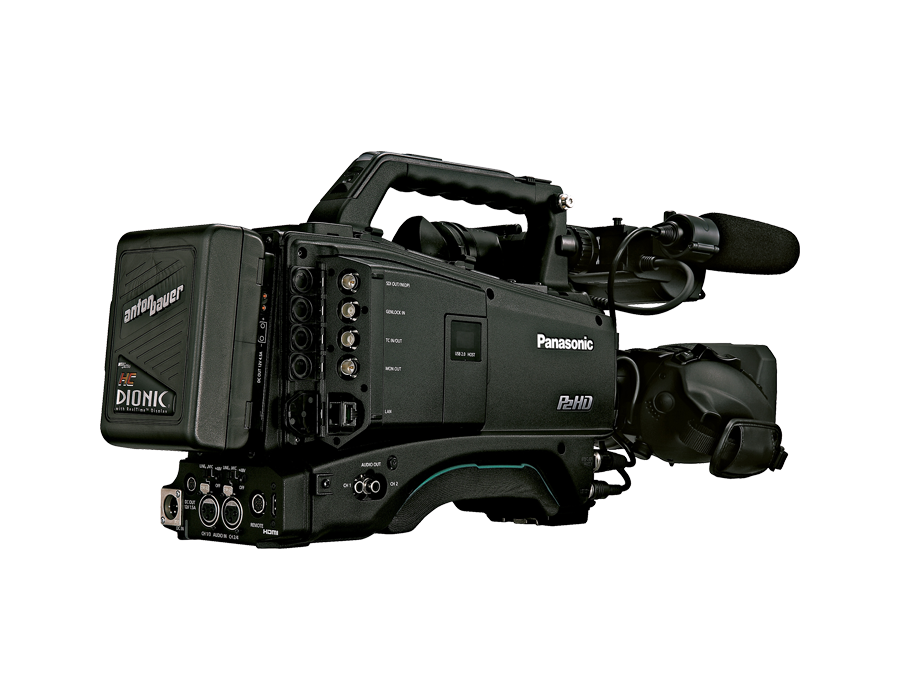

The AJ-PX800G is a lightweight shoulder-type camera-recorder for newsgathering. It is network connectable and provides superb picture quality, high mobility and excellent cost performance. Weighing only about 2.8 kg (main unit), the AJ-PX800G is one of the world’s lightest shoulder-type camera-recorder equipped with three MOS image sensors for broadcasting applications. Paired with a Teradek transmitter/receiver the system allows the camera operator to move about more freely.

The 2.2-megapixel 2/3” type 3MOS (RGB) image sensors offer full-pixel HD (1920 x 1080) resolution, F12 (59.94 Hz) or F13 (50 Hz) sensitivity and low noise with an S/N of 62 dB. It also achieves rich gradation and vibrant color reproduction.

The AJ-PX800G supports 59.94 Hz/50 Hz switching for convenient use in productions, and records 1080/59.94i, 23.98p, 25p, 29.97p and 720p HD/SD multiple formats.

The AJ-PX800 camera is equipped with a B4 style lens mount, which allows it to be used with a wide range of broadcast style lenses.

What's in the Case?

Tripod
4x – Anton Bauer Digital 90 Battery
Anton Bauer Dual Gold Mount Battery Charger
Audio-Technica Microphone
Zoom/Focus controls
Fujinon XA16X8A-XB4 Lens

Specifications

General
Power	DC 12 V (11.0 V to 17.0 V)
Power Consumption	22 W (when the optional board AG-YA600G is installed)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	10% to 85% (relative humidity)
Storage Temperature	–20°C to 60°C (–4°F to 140°F)
Weight	Approx. 2.8 kg (6.2 lbs.)
Dimensions	184 mm (W) × 207 mm (H) × 350 mm (D) (7-1/4 × 8-3/16 × 13-25/32 inches)
Body only, excluding battery and accessories

Camera Unit
Pickup Device	2/3 type 2.2 million pixels, MOS × 3
Lens Mount	2/3 type bayonet
ND Filter	1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
Gain Setting	NORMAL mode: –3 dB, 0 dB, 3 dB, 6 dB, 9 dB, 12 dB, 15 dB, 18 dB, 21 dB, 24 dB, 27 dB, 30 dB HIGH SENS mode: –6 dB, –3 dB, 0 dB, 3 dB, 6 dB, 9 dB, 12 dB, 15 dB, 18 dB, 21 dB, 24 dB, 27 dB, 30 dB
Super Gain (S.GAIN)	Selectable from 36 dB, 42 dB, 48 dB
Shutter Speed	60i/60p mode: 1/60 OFF, 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec. 50i/50p mode: 1/50 OFF, 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec. 25p mode: 1/25 OFF, 1/50 sec., 1/60 sec., 1/120 sec.
Slow Shutter Speed	60i/60p mode: 1/15 sec., 1/30 sec. 30p mode: 1/15 sec. 24p mode: 1/12 sec. 50i/50p mode: 1/12.5 sec., 1/25 sec.
Shutter Open Angle	3.0 deg to 360.0 deg (in 0.5 deg steps, angle display)
Sensitivity	NORMAL mode: F9 (2000 lx, 3200 K, 89.9% reflection, 1080/59.94i)
Minimum Subject Illumination	Approx. 0.22 lx (HIGH SENS MODE, F1.4, +42 dB S.GAIN)
Image S/N	62 dB (standard)
Horizontal Resolution	1000 TV or higher (center)

Memory Card Recorder
Recording Media	2× SD cards (microP2 or SDHC/SDXC, adapter required)
System Format	1080/59.94i, 1080/23.98PsF, 720/59.94p, 480/59.94i, 1080/50i, 720/50p, 576/50i
Recording Format	AVC-Intra100/50, AVC-LongG50/25, DVCPRO HD/50/DVCPRO/DV
Recording Video Signal	1080/59.94i, 720/59.94p, 720/23.98pN, etc.
Recording Time*	16GB: AVC-Intra100 ≈ 10min, AVC-LongG25 ≈ 32min 32GB: AVC-Intra100 ≈ 20min, AVC-LongG25 ≈ 64min 64GB: AVC-Intra100 ≈ 40min, AVC-LongG25 ≈ 128min

Digital Video
Sampling Frequency	AVC-Intra100/50: Y: 74.1758 MHz, Pb/Pr: 37.0879 MHz (59.94 Hz)
Quantizing	AVC-Intra100/50: 10 bit, AVC-LongG25: 8 bit
Video Compression Format	MPEG-4 AVC/H.264 Intra Profile, Long GOP, DVCPRO HD/DV-Based Compression

Audio / Input / Output
Audio In	XLR (3-pin) × 2, switchable LINE/MIC/+48V, 0 dBu / –50 dBu / –60 dBu
Audio Out	Pin jack × 2 (CH1, CH2), Output level: 600 Ω, 316 mV
Headroom	18 dB (switchable with menu)
Headphone	3.5 mm diameter stereo mini jack × 1
Speaker	20 mm diameter, round × 1
