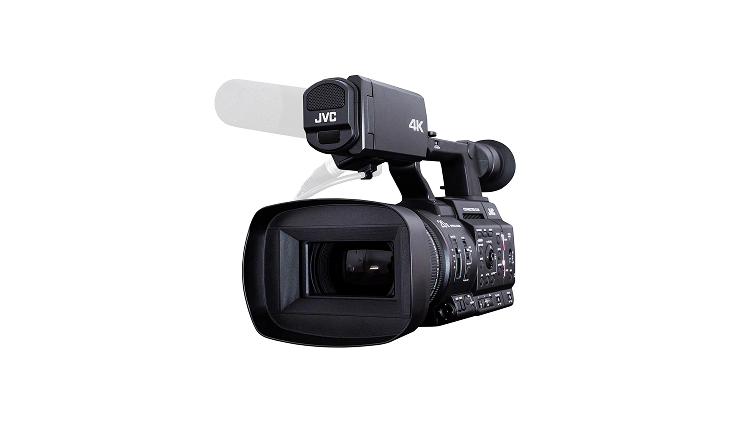

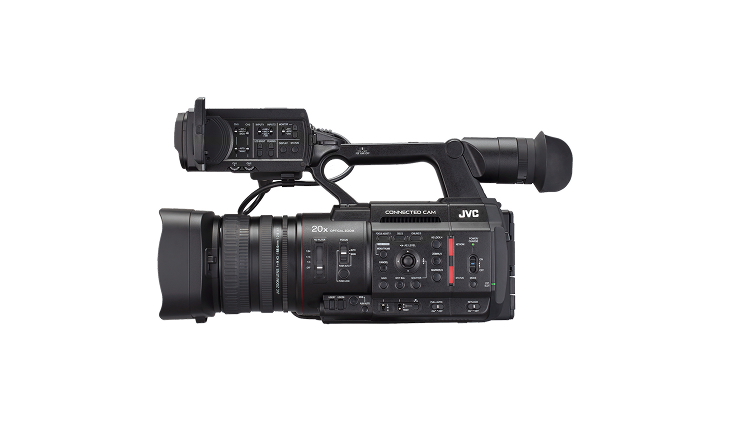

JVC GY-HC500U

4K handheld connected cam 1" professional camcorder

Mouse roll-over to zoom image.

Product Highlights

10-bit ProRes 422/422HQ/422LT, at 4K UHD resolution and 59.94p/50p/29.97p/25p/23.98p recording to M.2 SSD
4K UHD 29.97p/25p/23.98p 4:2:2 10-bit or 4:2:0 8-bit (150Mbps) and various HD recording to SDHC/SDXC card
HDR recording, HLG or J-Log1 (10-bit)
Backup recording to M.2 SSD
Clip Continuous Record mode

Rentex No. JVCGYHC500 | Mfr No. GY-HC500UV

The GY-HC500 is a handheld 4K professional camcorder for production that offers uncompromised image quality. Shoot 4K UHD with HDR, J-Log 1, and record to SSD (solid state drive) media in 10-bit Apple ProRes 422 at 4K UHD up to 60p/50p frame rates. You can also record UHD 30p/25p/24p, full HD or proxy files to SDHC/SDXC media. The GY-HC500 CONNECTED CAM features high performance FHD live streaming with low latency and a full complement of IP remote control and viewing features. It’s truly the most advanced and versatile camcorder in its price range.

GY-HC500 - Instruction Manual

(1) JVCKAMC100 – JVC GY-HC500MC 4K Camcorder SSD Media Adapter
(2) JVCHC500BA – JVC GY-HC500MC 4K Camcorder Battery
(1) JVCHC500BC – JVC GY-H500MC 4K Camcorder Battery Charger
(2) JVCHC500PS – JVC GY-HC500MC 4K Camcorder Power Supply
(1) TBD – System Ace XL Tripod

JVC CONNECTED CAM GY-HC500 - Features

GENERAL SPECIFICATIONS	Power	DC12V (AC adapter), DC7.2V (battery)
	Power consumption	Approx. 24W
	Dimensions (W x H x D)	188 mm x 227mm x 437mm (with hood and viewfinder)
	Weight	7.9lb (3.6kg with hood and battery, without wireless LAN antenna unit)
	Moisture protection	Weather resistant
CAMERA	Image sensor	1″ (effective) CMOS, effective number of pixels: approx 9.35 million
	Stabilizer	Optical image stabilizer
	Sensitivity	F11 at 2000lx 89.9% reflectance
	Lens	F2.8 (wide) to F4.5 (tele), f=9.43mm to 188.6mm (f=28mm to 560mm (35mm equivalent))
	Filter diameter	82mm
	Shutter speed	1/6 to 1/10000
	ND filter	Off, 1/4, 1/16, 1/64
	Viewfinder	0.4″ LCOS Quad VGA (1280 x 960), 1280 x 720 at 16:9
	LCD monitor	3.97″ LCD /WVGA (800 x 480), 800 x 450 at 16:9
VIDEO/AUDIO RECORDING	Recording media	SDHC/SDXC memory card x 2: 4K (150Mbps): UHS-1 U3, 4K (70Mbps)/HD (50Mbps): Class 10, HD (35Mbps): Class 6,
		SD: Class 4, High-Speed: UHS-1 U3
		SSD (M.2) with optional media case by JVC
	Video codec	Apple ProRes 422, MPEG-4 AVC/H.264 (HD/SD), MPEG-2 (HD)*
	File format	MOV, MP4
	4K UHD 60p/50p	3840 x 2160, Apple ProRes 422 HQ/Apple ProRes 422/Apple ProRes 422 LT, 10-bit

	4K UHD 30p/25p/24p (H.264)	3840 x 2160, 4:2:2 10-bit / 4:2:0 8-bit 150Mbps/70Mbps
	HD (H.264)	1920 x 1080/1280 x 720, 4:2:2 10-bit / 4:2:0 8-bit mode, etc., 50Mbps – 8Mbps
	SD (H.264)	720 x 480 (U model)/720 x 576 (E/EU model), 8Mbps
	Proxy (H.264)	960 x 540/480 x 270, 3 – 1.2Mbps
	Audio recording	LPCM 2ch, 48kHz/16-bit (MOV), µ-Law 2ch (Proxy), AAC 2ch (MP4)
LIVE VIDEO STREAMING	Protocol	RTMP, MPEG2-TS/UDP, MPEG2-TS/TCP, MPEG2-TS/RTP, RTSP/RTP
LIVE VIDEO STREAMING	Resolution and bit rate	1920 x 1080 (59.94p/50p) 20 – 8Mbps, (29.97p/25p) 20 – 3Mbps, 1920 x 1080 (59.94i/50i) 20 – 3Mbps, 1280 x 720 (59.94p/50p) 20 – 3Mbps, 1280 x 720 (29.97p/25p) 8 – 1.5Mbps, 640 x 360 (59.94p/50p) 3/1.5Mbps, 640 x 360 (29.97p/25p) 3 – 0.3Mbps
INTERFACES	Video output	3G-SDI output (BNC x 1) HDMI output x 1 AV output (ø3.5mm mini jack x 1)
	Audio input	XLRx 2 (MIC, +48V/LINE), ø3.5mm mini jack x 1
	Audio output	AV output (ø3.5mm mini jack x 1)
	Headphone	ø3.5mm mini jack x 1

	Remote	ø2.5mm mini jack x 1
	Time code input/output	RCA
	USB	HOST x 1 (network connection)
	Ethernet	RJ-45 x 1
	Built-in slot	Optional SSD media case and for future expansion
PROVIDED ACCESSORIES	Battery (BN-VC296) x 1, AC adapter, power cable, lens hood, KA-MC100G SSD Media Adapter*
