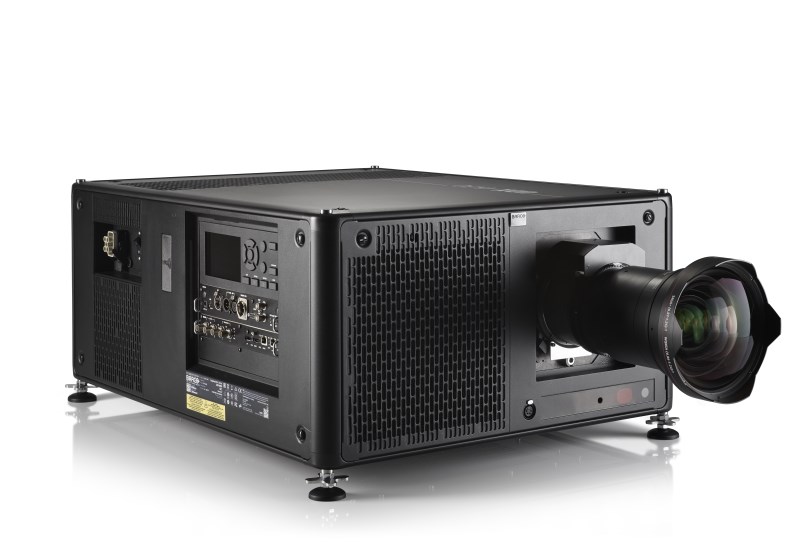

Barco UDM-4K22
21,000 Lumen, 4K UHD, 3-Chip DLP Laser Projector
Product Highlights
- Lightest 21 laser projector in the market
- 4k resolution
- Laser reliability and consistency
- Comes standard in a rental frame
Weighing less than 110 pounds, this is the lightest 21K projector on the market. And while the compact and light-weight design of the UDM-4K22 saves you lots of set-up time and reduces shipping costs, it never compromises on the quality or brightness of your projection. The UDM-4K22 features 4K UHD resolution and 21,000 lumens light output to deliver impactful 4K experiences with mind-blowing colors. The UDM projector offers the widest color spectrum for 22K laser phosphor projection available.
With the Barco Pulse proprietary single-step processing technology warping, scaling and 4K UHD processing is done in only one step. The result? Razor-sharp images, market leading lowest latency, and less dark time than comparable projectors.
| Projector type | 4K UHD 3-chip DLP digital projector |
|---|---|
| Technology | 0.9″ DMDTM x3 |
| Resolution | 3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (native) / 5,120 x 3,200 (processing) |
| Brightness | 20,000 (WQ) center lumens / 19,000 (WQ) ansi lumens 19,000 (4K UHD) center lumens / 18,500 (4K UHD) ansi lumens |
| Contrast ratio | 2000:1 |
| Brightness uniformity | 95% |
| Aspect ratio | 16:10 |
| ScenergiX | horizontal and vertical edge blending |
| Lens range | TLD+ 0,37; 0,65-0,85; 0,8-1,16; 1,25 -1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8-4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1 |
| Optical lens shift | Vertical between -100% to +130%, depending on lens Horizontal up to +/- 40%, depending on lens Motorized zoom and focus (with lens memory on TLD lenses) Motorized lens shift (with position memory on all lenses) |
| Color correction | P7 |
| Light source | Laser phosphor |
| Light source lifetime | 20,000 hrs |
| Optical dowser | Digital |
| Picture-by-picture | Two sources simultaneously |
| Orientation | 360° |
| Sealed DLP™ core | standard |
| DMX 512 | standard |
| WARP | direct adjust OSD + toolset |
| Image processing | Embedded warp & blend |
| Processing | Pulse Electronics |
| Keystone correction | yes |
| Integrated web server | yes |
| CLO (constant light output) | Standard |
| 3D | Active eye wear (optional), passive circular (optional); 2 flash up to 200Hz* |
| Inputs | Single HDBaseT; HDMI2.0 (HDCP2.2, HDR10); DP 1.2 (HDCP1.3); Quad 3G/12G SDI/BarcoLink |
| Optional Inputs | Quad DP1.2 |
| Input resolutions | refresh rates: 24hz to 120hz 4K/4KUHD (4096 x 2160/ 3860 x 2400) to 240hz WQXGA (2560 x 1600) |
| Max. pixel clock | 600 MHz |
| Software tools | Projector Toolset + Android** app + iOS** app |
| Control | XLR wired + IR, RS232, Wi-Fi** (optional), GSM** (optional) |
| Network connection | 10/100 base-T, RJ-45 connection, Wi-Fi** (optional) |
| Power | 120-160 V (max 70% brightness) 18.5A / 200-240V (+/- 10%) 13.5A, 50-60Hz |
| Noise Level | 49 dB (TBD) |
| Weight | 110.23 lbs. |
| Dimensions | 29.13″ x 22.44 x 14.17″ |
| Operational ambient temperature | 0-40°C / 32°-104°F |
| Operational humidity | 0-80% (non condensing) |
-
