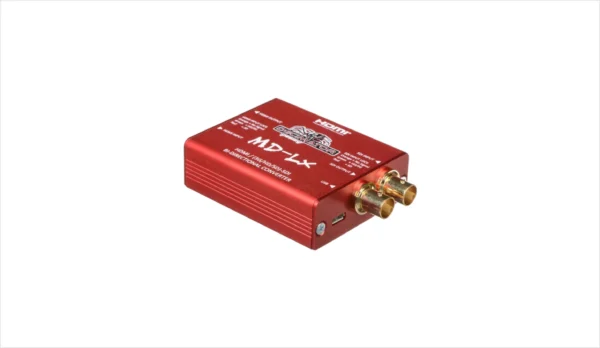

Decimator MD-LX

HDMI/SDI Bi-Directional Converter

Mouse roll-over to zoom image.

Product Highlights

Pocket-Sized Bi-Directional Converter
HDMI Input and Output
3G/HD/SD-SDI Input and Output
HDMI and SDI input locks
Supports 3G Level A and B and allowing for conversion between both

Rentex No. CNVDECLX | Mfr No. DD-LX

The DECIMATOR MD-LX is a pocket-sized bi-directional converter featuring an HDMI input and output on one side and 3G/HD/SD-SDI input and output on the other. It supports up to
1080p60 resolution and offers multiple input/output conversion modes.

Rentex Spec MD-LX

MD-LX Brochure

Input	1 x HDMI Type A 1 x 3G/HD/SD-SDI 1 x Micro USB port for power, control, and firmware updates
Output	1 x HDMI Type A 1 x 3G/HD/SD-SDI
HDMI Format Support	1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 Hz 1920 x 1080i at 50/59.94/60 Hz 1280 x 720p at 25/29.97/30/50/59.94/60 Hz 625i at 50 Hz 525i at 59.94 Hz
SDI Format Support	3G-A or 3G-B: SMPTE 424M at 2.97 and 2.967 Gbps 1080p at 50/59.94/60 HzHD: SMPTE 292M/274M/296M at 1.485 and 1.435 Gbps 1080i at 50/59.94/60 Hz 1080p/psf at 23.98/24/25/29.97/30 Hz 720p at 23.98/24/25/29.97/30/50/59.94/60 HzSD: SMPTE 259M at 270 Mbps 625i at 50 Hz 525i at 59.94 Hz
Power	USB: 4.4 to 5.25 VDC Uses under 2.5 W
Dimensions	2.4 x 2.9 x 0.9″ (6 x 7.4 x 2.3 cm)
