- Now offered in the new Barco Tri-Combo configuration increasing the number of 4K inputs and outputs
- Compatible with: 4K60 Tri-Combo Input Card, 4K60 Tri-Combo Output Card, Barco HDMI 2.0 Quad Input Card, Barco HDMI 2.0 Quad Output Card, Barco DisplayPort 1.2 Quad Output Card, and Barco DisplayPort 1.2 Quad Input Card
- 8x Input card slots supporting up to 4K resolution per slot
- Native 4K60p input and output on a single cable

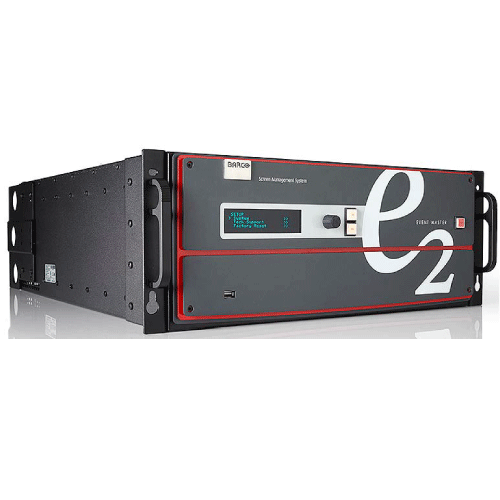

Raising the bar for live screen management, the E2 presentation system provides superior image quality, exceptional input and output density, great expandability and durability. Supporting native 4K input and output, it is the first and only screen management system on the market that can manage a 4K projector blend with refresh rates up to 60Hz. A truly versatile system, it offers eight mixable PGM outputs and four scaled Aux Outputs for full show control with a single box.
Native 4K input and output
With native 4K input and output, the E2 provides impressive pixel processing power. Whether native or scaled inputs, two connectors or four, this HDCP-compliant system manages it all. With 28 inputs and 14 outputs (eight PGM, two Multi-viewer and four scaled Aux outputs), the E2 system offers full show control, including eight independent PIP mixers and a dedicated Multiviewer. Thanks to its linkable chassis, it can easily expand beyond these eight outputs without the need for additional external processing and routing to distribute the signals. And as it’s inputs and layers can also be expanded, the E2 will be capable of managing a blended screen with up to 32 4K projectors in the future.
|Genlock||Genlock: Reference Input/Loop on BNC connectors; Analog Bi-level and Blackburst at SD and Tri-level at HD S3D Sync: 4x Input Din connector, 2x Output Din connector|
|Communication||Ethernet RJ-45, 1000/100/10 Mbps autosense|
|Weight||31 kg (68 lbs)|
|Input power||Power 100-240 VAC, 47-63 Hz, auto-selecting 8.8A at 100 VAC|
|Environmental temperature||0-40° Celsius|
|Environmental humidity||0-95% noncondensing|
